February 2013
4-214
ColorQube® 9303 Family
REP 12.68-171
Repairs/Adjustments
3. Centralize the coupler alignment tool onto the crease roll motor encoder disc, PL 12.175
Item 13 and Figure 3.

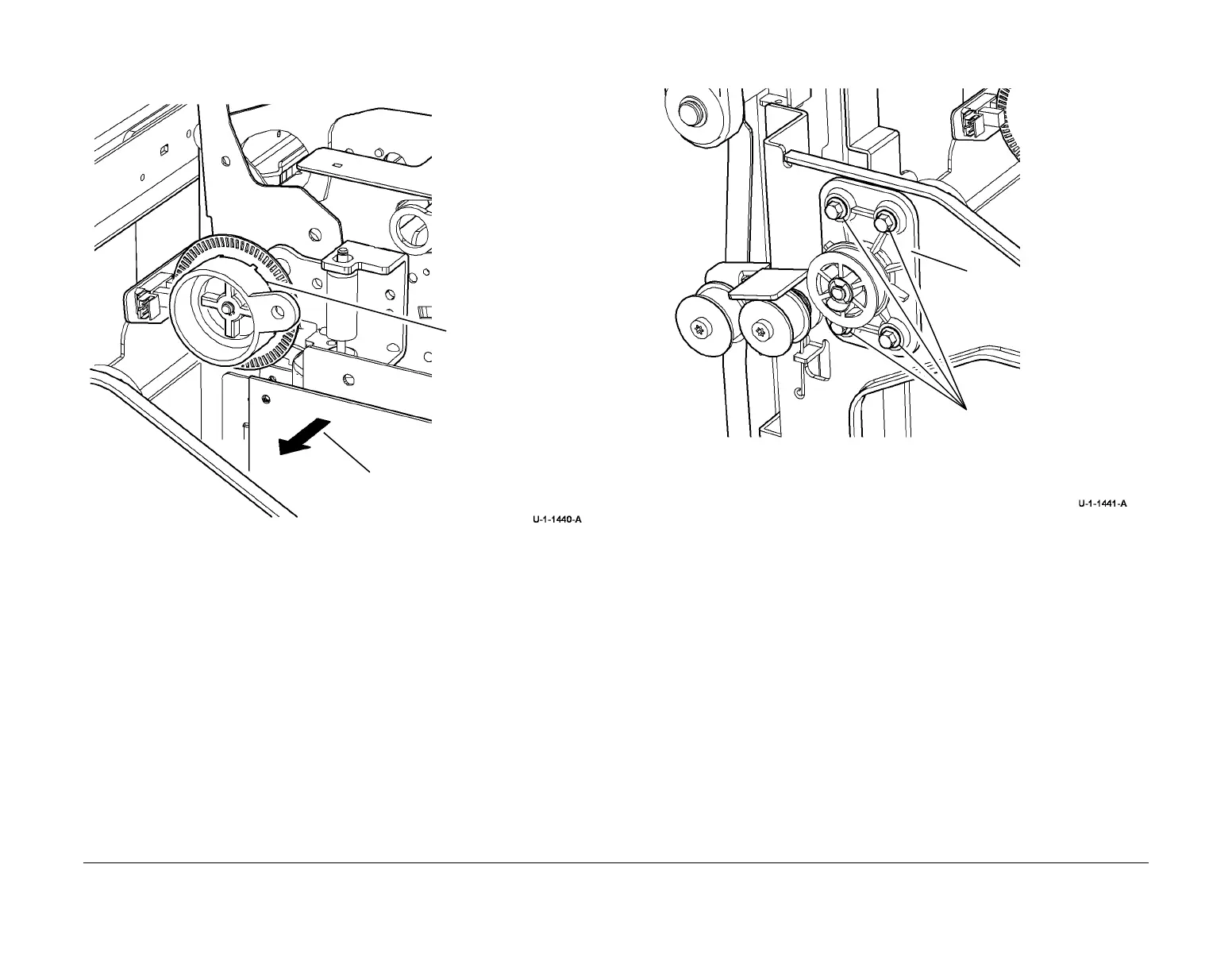

Figure 3 Centralize the alignment tool
4. Prepare to centralize the drive coupler, refer to Figure 1, with the HVF BM crease roll
motor encoder disc, Figure 3.
5. Slacken off the drive unit retaining screws, Figure 4.
Figure 4 Loosen the drive unit
1
Position the coupler
alignment tool onto
the crease roll motor
encoder disc.
2
Carefully slide the BM towards the
drive assembly.
1
Loosen the drive unit,
4 screws.
Drive unit
To Next Page
