Repairs/Adjustments
Phaser 3200MFP / Workcentre PE220 04/07 4-29

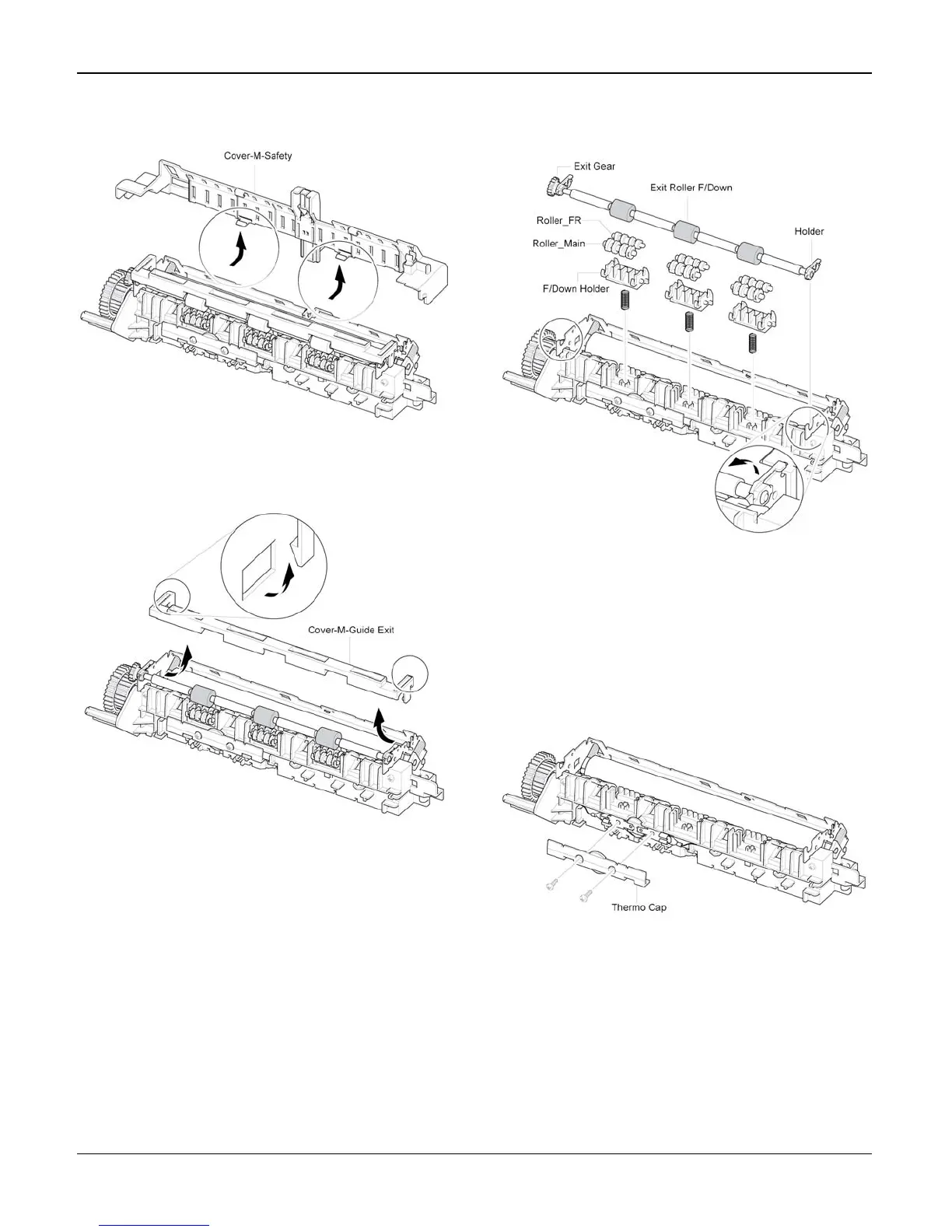

6. Remove the cover-M-safety, Figure 4.
Figure 4
7. Remove the cover-M-guide Exit, Figure 5.
Figure 5
8. Rotate the holder in the direction of the
arrow which is attached to the exit roller
F/Down and exit gear (DRV17), Figure 6.
(The roller_main, roller_FR, F/Down
holder, spring will come out at the same
time.)
Figure 6
Note: If you don't follow the direction above
the Spring will come out forcing the
Roller_Main, Roller_FR, F/Down Holder
inside the Frame Assembly.
9. Remove 2 screws securing the thermo
cap and remove it, Figure 7.
Figure 7
To Next Page
