Xerox Phaser 3200MFP Service Manual

Repairs/Adjustments
4-28 04/07 Phaser 3200MFP / Workcentre PE220
REP 16.0 Fuser Assembly
Workcentre PE220
Parts list on PL 7.0
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Do not touch the fuser while it is hot.

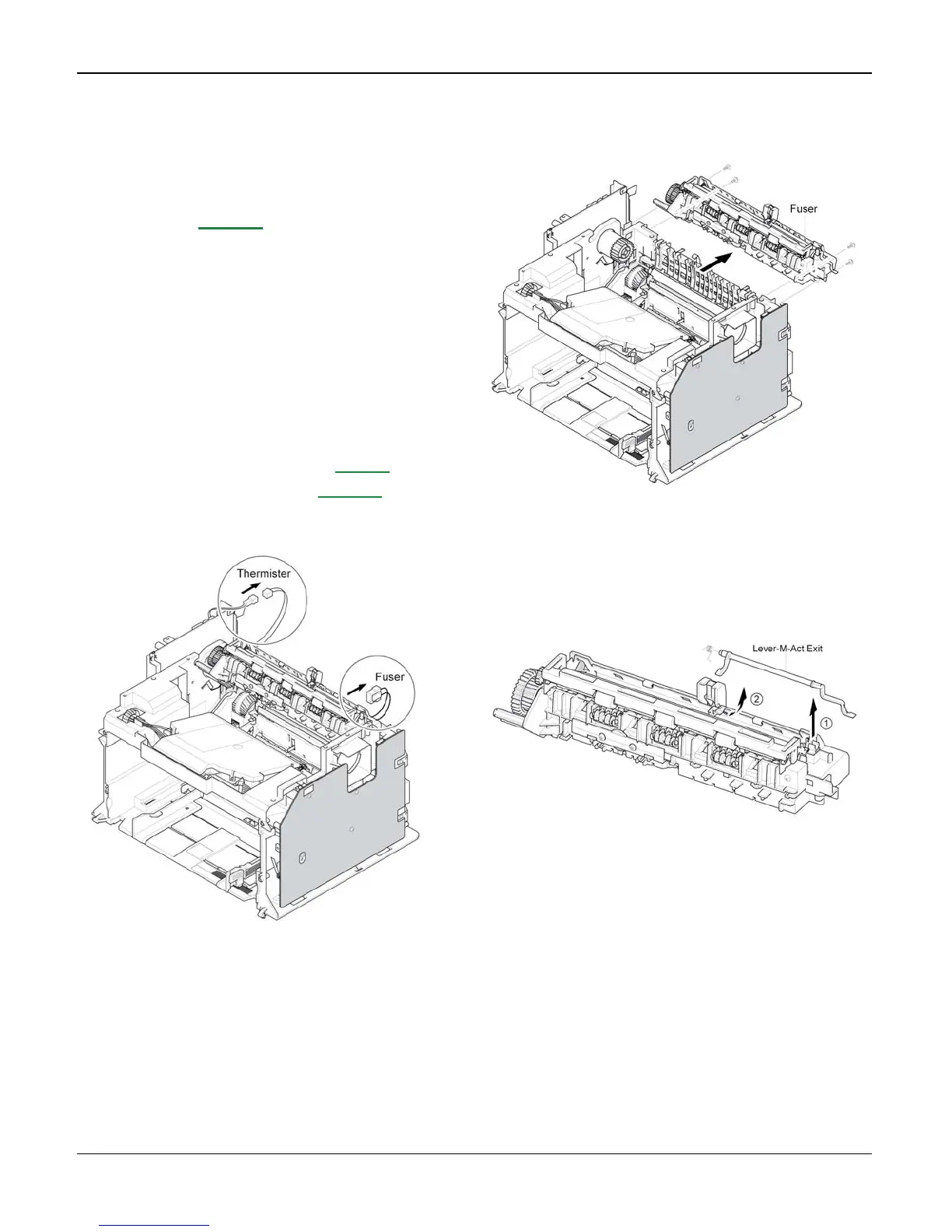

1. Remove the scan assembly, REP 8.
2. Remove the middle cover, REP 12.
3. Unplug the 2 connectors from the SMPS
and Main PBA, Figure 1.
Figure 1
4. Remove 4 screws securing the fuser and
remove it, Figure 2.
Figure 2
5. Remove the Lever-M-Act exit in the direc-
tion of arrow, Figure 3.
Figure 3

Xerox Phaser 3200MFP Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 600 x 600 dpi
First Page Out Time	Less than 10 seconds
Copy Resolution	Up to 600 x 600 dpi
Maximum Copy Count	99 copies
Fax Transmission Speed	33.6 kbps
Standard Paper Capacity	250 sheets
Connectivity	USB 2.0
Memory	32 MB
Operating System Compatibility	Windows, Mac OS
Duplex Printing	Manual
Scan Type	Flatbed
Media Sizes Supported	Letter, Legal, Executive, A4, A5
Media Weight	60 to 163 g/m²
Monthly Duty Cycle	10, 000 pages
Toner Yield	Up to 3, 000 pages
