Repairs/Adjustments
Phaser 3200MFP / Workcentre PE220 04/07 4-27

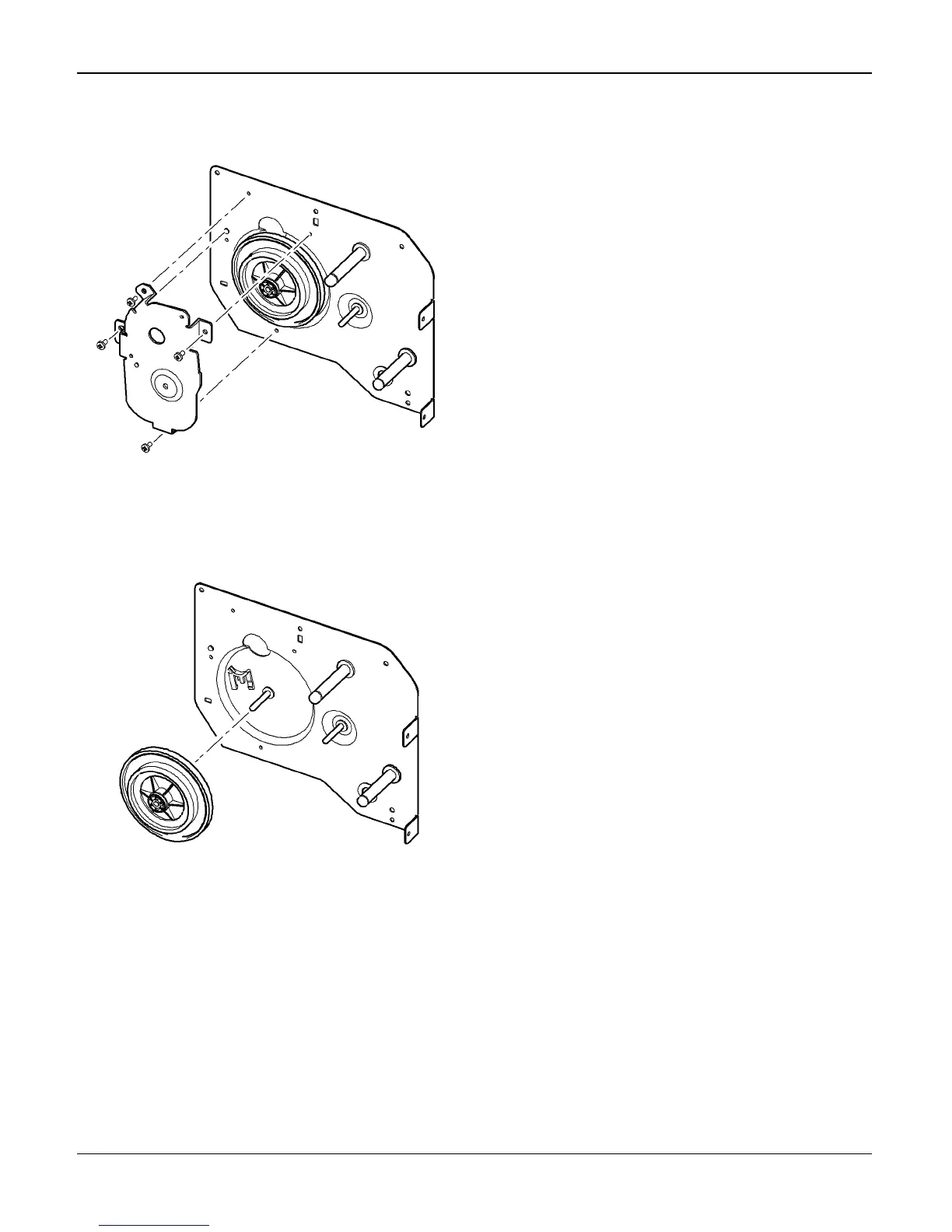

9. Remove 4 screws, then the motor
bracket, Figure 6.
Figure 6
10. Remove the RDCN gear 139/83 gear, Fig-
ure 7.
Figure 7
Replacement
1. When replacing the main drive assembly,
tighten the screws in the reverse order
they are numbered.
Replacement is the reverse of the removal
procedure.
