Repairs/Adjustments
4-16 04/07 Phaser 3200MFP / Workcentre PE220

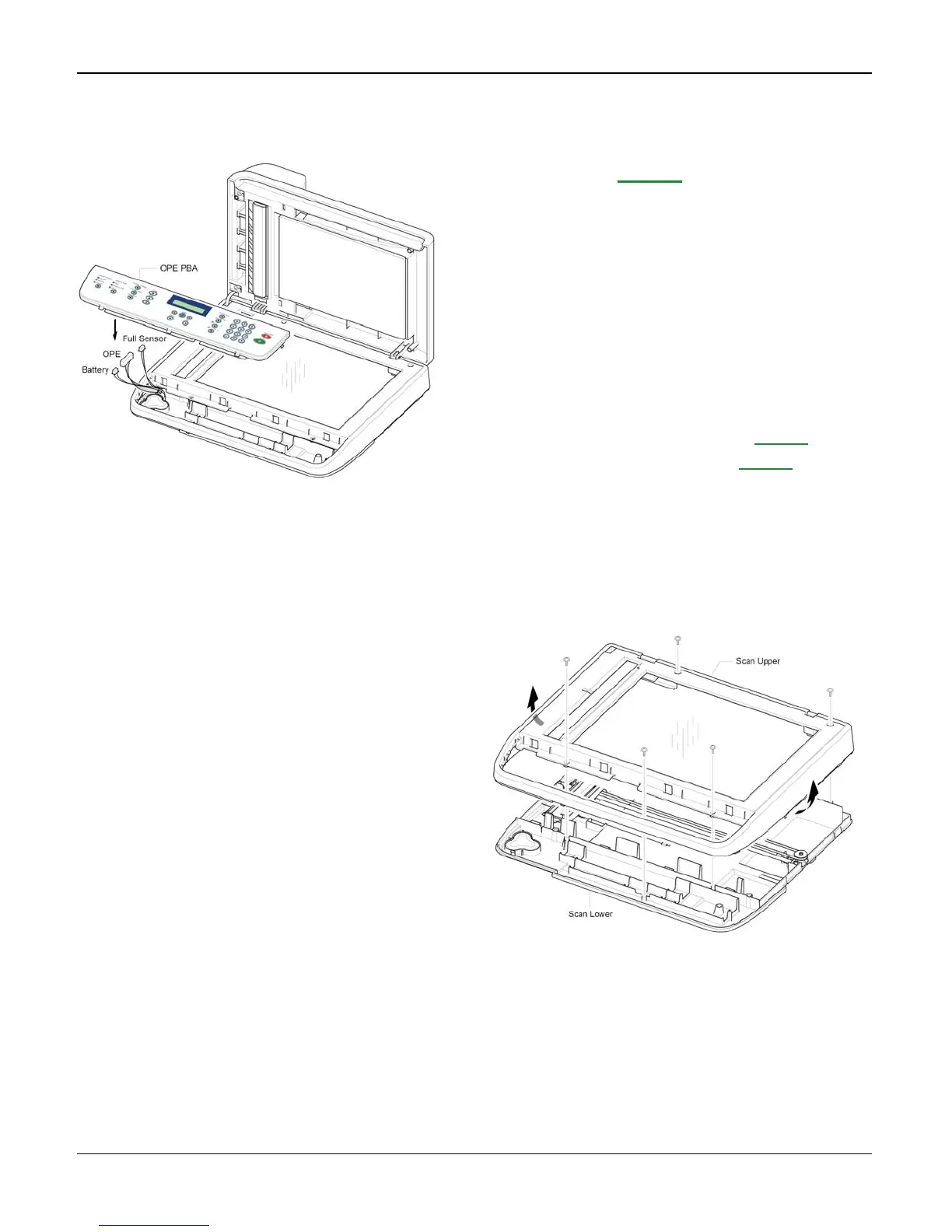

2. Unplug the 3 connectors (Battery, OPE,
Full Sensor)., Figure 2
Figure 2
3. Remove the screws securing the OPE
PBA and remove it.
4. Release the contact rubbers.
5. Release the keys.
Replacement
Replacement is the reverse of the removal
procedure.
REP 11 Platen Assembly
Parts list on PL 4.0
Note: The illustrations show the Workcentre
PE220 but the procedure is identical for the
Workcentre PE220 and Phaser 3200.
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the scan assembly, REP 8.
2. Remove the ADF housing, REP 9.
3. Remove the OPE unit:
- REP 10.0 (Workcentre PE220)
- REP 10.1 (Phaser 3200)
4. Remove 5 screws from the scan upper
and remove it from the scan lower, Figure
1.
Figure 1
To Next Page
