Repairs/Adjustments
Phaser 3200MFP / Workcentre PE220 04/07 4-17

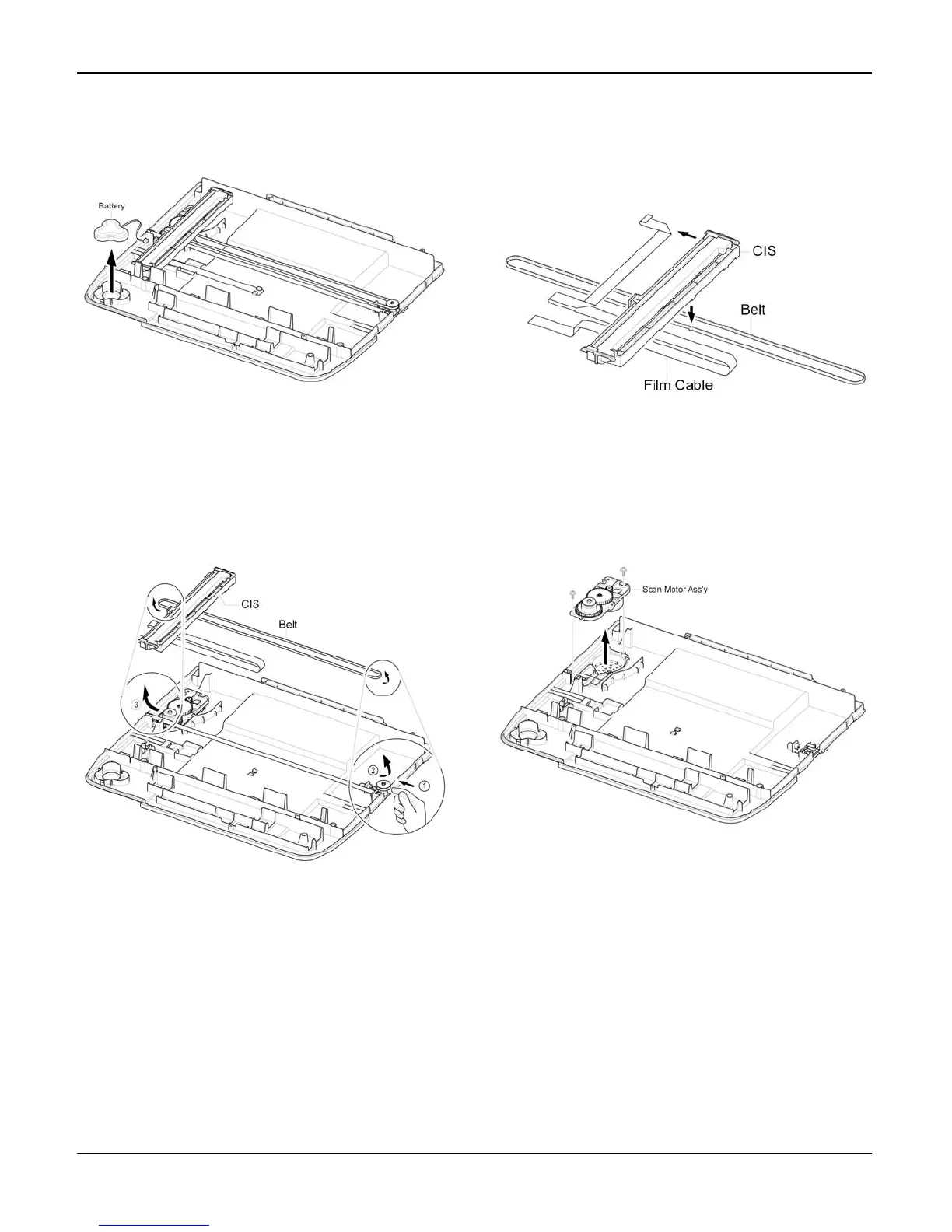

5. Remove the battery, Figure 2.
Figure 2
6. Push the holder in the direction of arrow
and remove the belt, Figure 3. (The CIS
will be released at the same time)
Figure 3
7. Release the belt and flat cable from the
CIS, Figure 4.
Figure 4
8. Remove 2screws securing the scan motor
assembly and remove it, Figure 5.
Figure 5
To Next Page
