Yamaha F350B - Checking the Engine Shut-Off Switch; Checking the Knock Sensor

5-41
Ignition unit and component

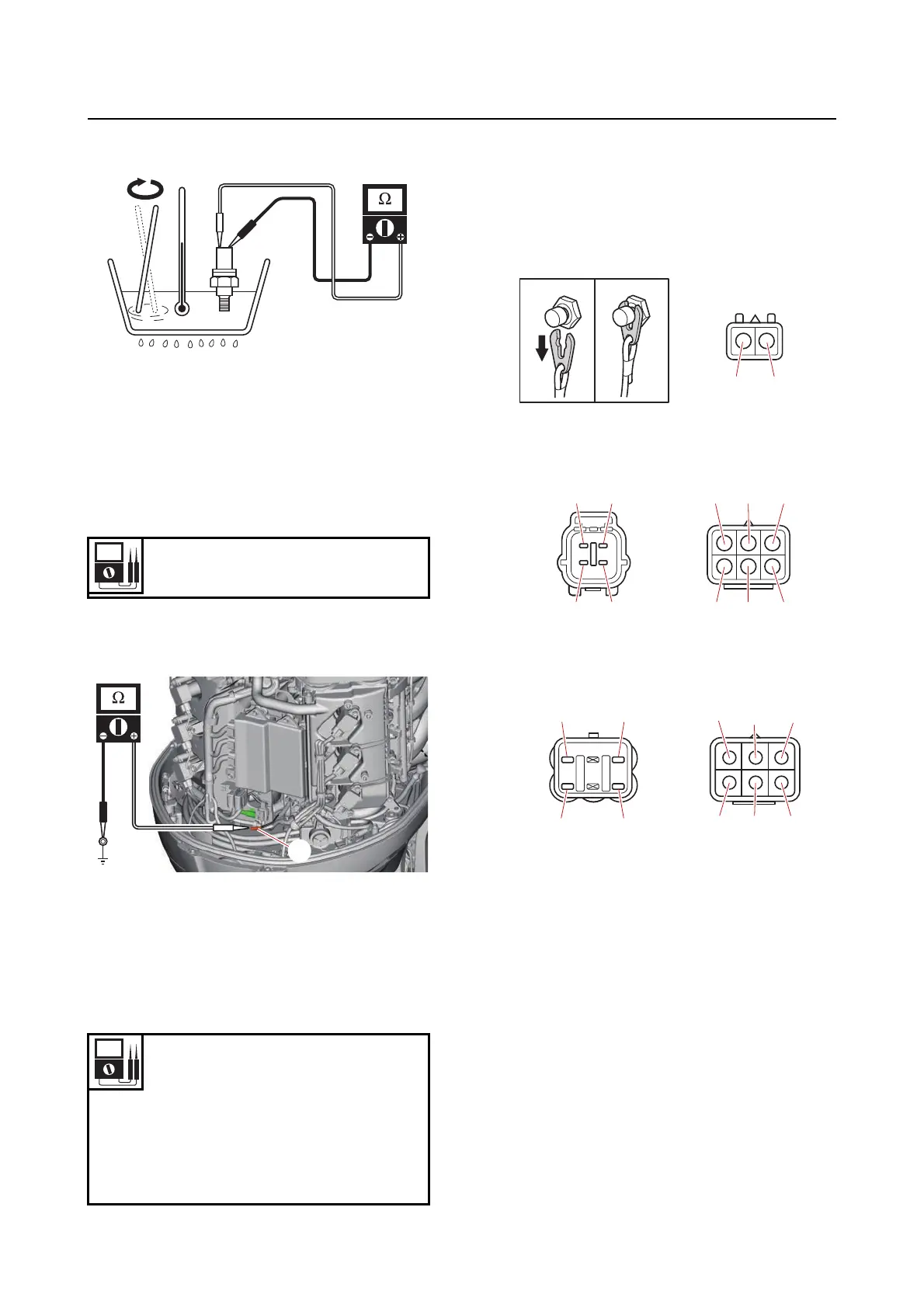

c. Measure the thermo sensor for resistance.
d. Install the thermo sensors and connect the
couplers.
Checking the knock sensor
1. Measure:
• Knock sensor resistance
Out of specification  Replace.
a. Disconnect the knock sensor coupler “a”.
b. Measure the knock sensor resistance.
c. Connect the knock sensor coupler.
Checking the engine shut-off switch
1. Check:
• Engine shut-off switch continuity
Out of specification  Replace.
a. Disconnect the engine shut-off switch cou-
pler.
b. Check the engine shut-off switch for conti-
nuity.
c. Connect the engine shut-off switch cou-
pler.
Resistance
504–616 k
Engine shut-off switch continuity
Clip removed:
Terminal “a”–Terminal “b”
Terminal “c”–Terminal “d”
Terminal “e”–Terminal “f”
Terminal “g”–Terminal “h”
Terminal “i”–Terminal “j”
a
A. Single type
B. Twin type
C. Triple type
D. Quad type
ab
A
bd
ac
bd
ac
f
e
BC
bd
ac
fh
eg
j
i
D
