Yamaha F350B - Removing the Flywheel Magneto

7-15
Flywheel magneto

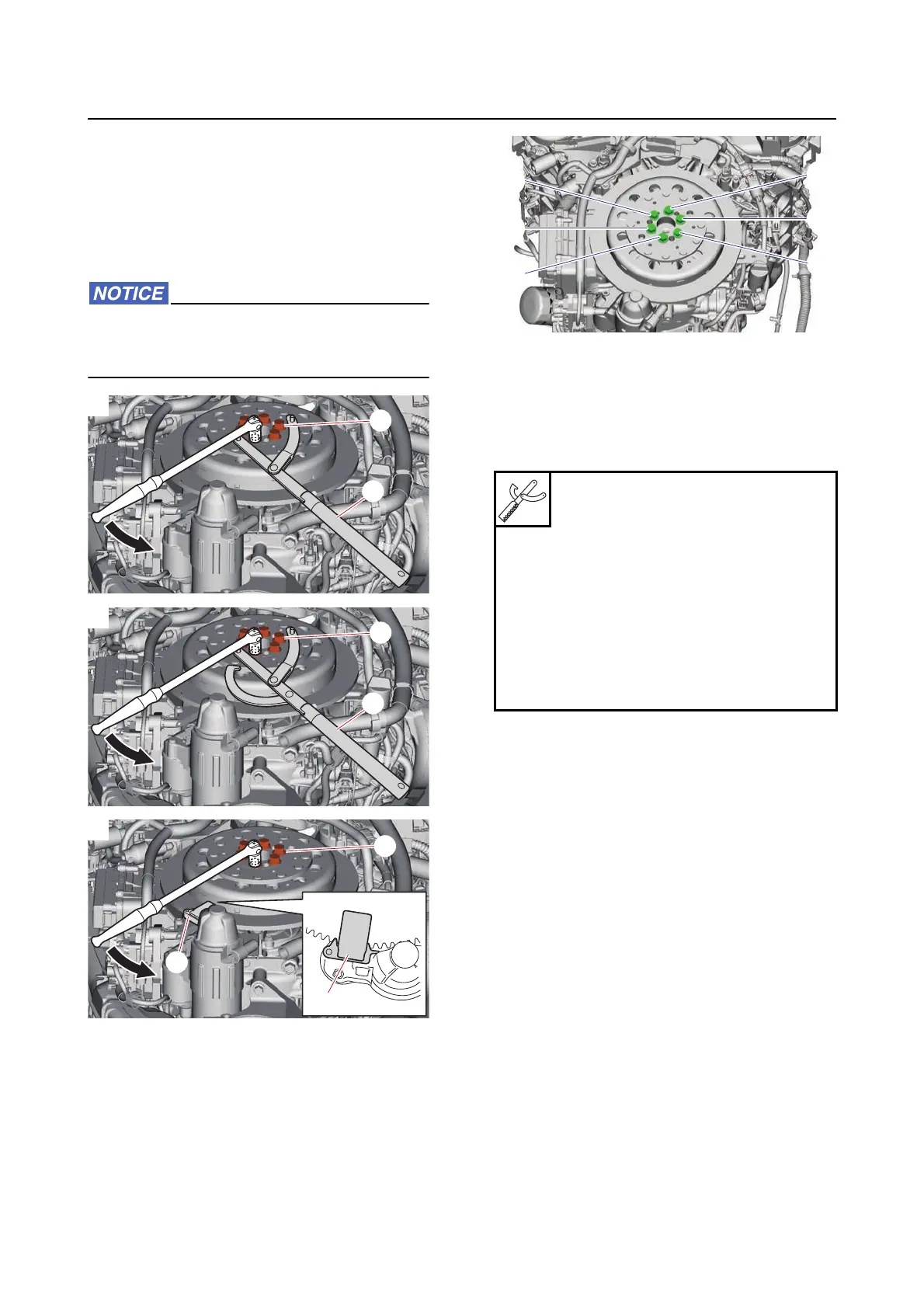

Removing the flywheel magneto
1. Remove:
• Flywheel magneto
a. Loosen the flywheel magneto bolts “1” in
the order [1], [2], and so on, and then re-
move the flywheel magneto and dowel pin.
Apply force in the direction of the arrow to
prevent the special service tool “2” from
slipping off easily.
2. Disconnect:
• Stator assembly coupler
• Pulser coil coupler
3. Remove:
• Holder
• Stator assembly
• Pulser coil
•Base
A
1
2
B
1
2
C
3
3
1
A. Conventional special service tool
(Worldwide)
B. Conventional special service tool (USA
and Canada)
C. New special service tool
Rotor holding tool (including han-
dle and 3 pins) “2”
90890-04195
Universal magneto and rotor hold-
er “2”
YU-01235
Flywheel stopper B “3”
90890-06686
Flywheel stopper B “3”
YB-06686
[1]
[2]
[3]
[4]
[5]
[6]
