3-6
Optional equipment

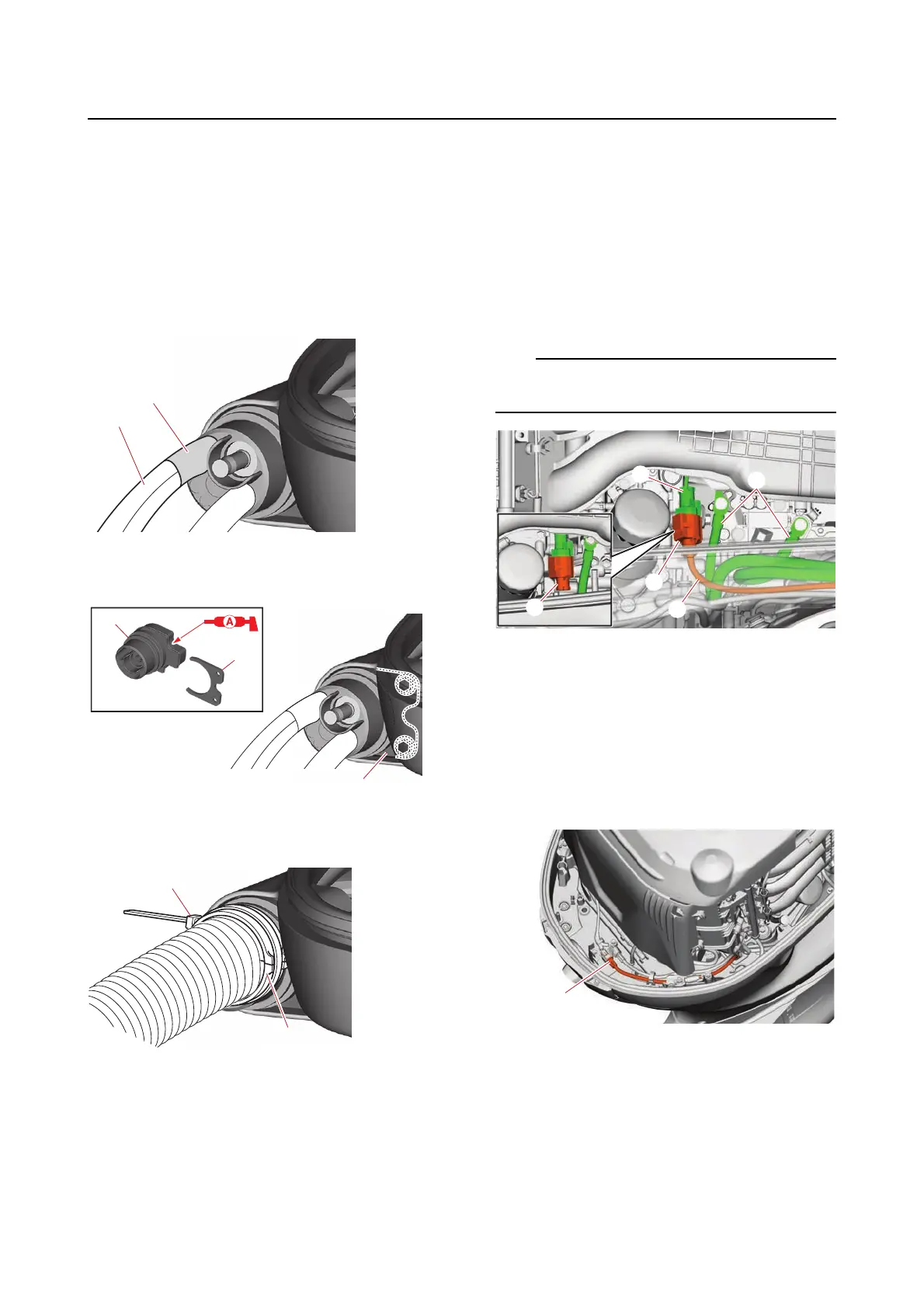

Installing the rigging grommet
1. Install:
• Rigging grommet
a. Route each harness through the proper
hole in the rigging grommet. See “Rigging
grommet description” (3-5).
b. Align the tape “1” on the battery cable “2”
with the outer end of the rigging grommet.
c. Install the rigging grommet “1” along with
the grommet holder “2”.
d. Install the rigging tube retainer “1”, and
then fasten it using the plastic tie “2”.
Optional equipment
Installing the isolator lead
1. Remove:
• Cap “1”
(from the isolator lead “2”)
2. Connect:
• Isolator lead coupler “a”
(to the isolator lead “2”)
TIP:
Pass the isolator lead “3” over the battery cable
“4” so that they do not cross over each other.
Installing the SCU communication
lead
To improve working efficiency for the rigging of
multiple engine applications, start from the out-
board motor on the port side of the boat.
1. Disconnect:
• SCU signal coupler (4P) “a”
2. Remove:
• Cap “1”
(from the SCU communication lead cou-
pler (4P))
1
2
1
2
2
2
1
4
a
3
1
2
a
