Yamaha F350B - Assembling the Shift Actuator Assembly; Installing the Shift Actuator Assembly

7-32

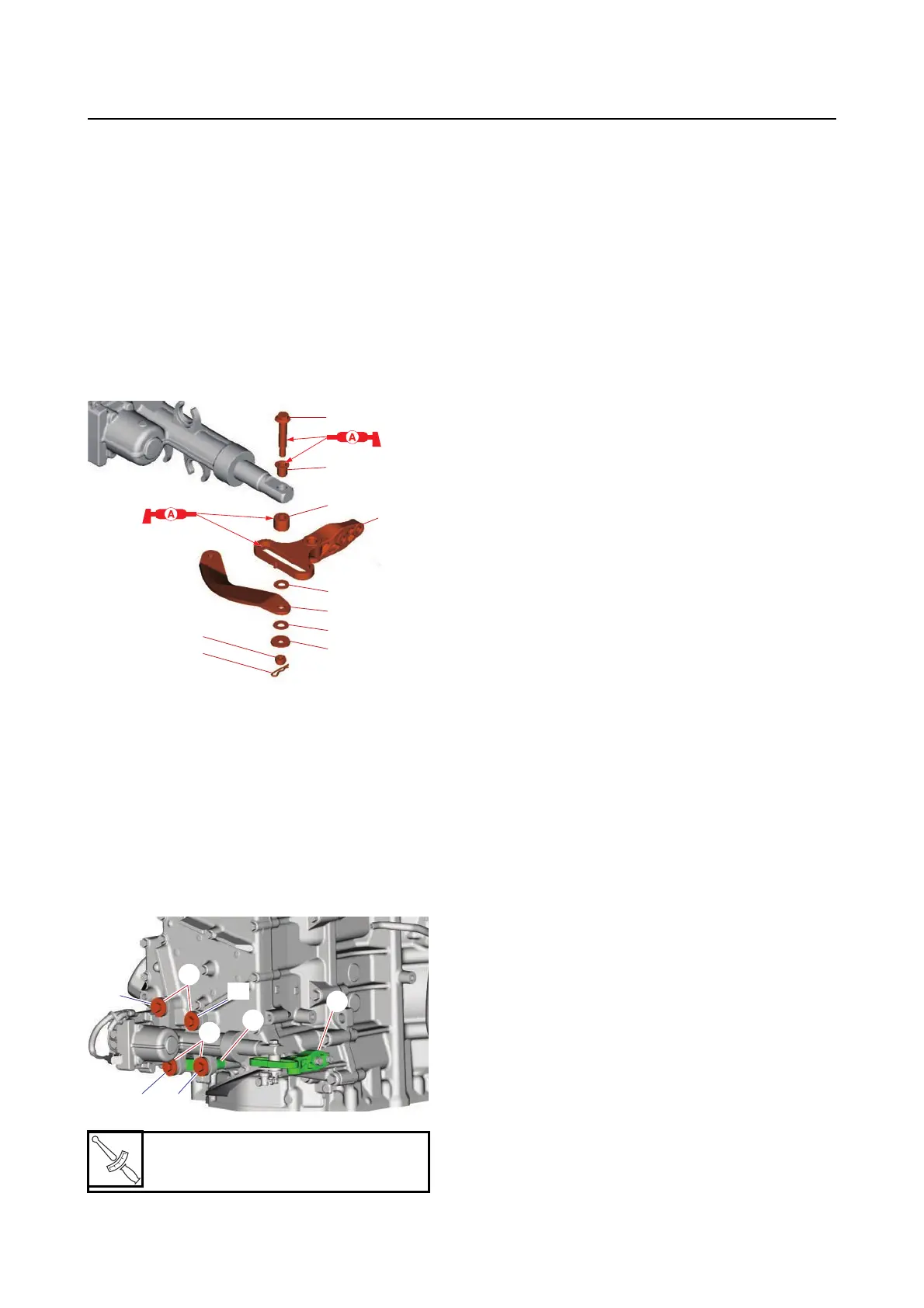

Shift actuator
Assembling the shift actuator assem-
bly
1. Install:
• Bracket “1”
• Joint pin “2”
• Bushing “3”
• Bushing “4”
• Washer “5”
• Shift lever “6”
• Washer “7”
•Nut “8”
•Clip “9”
Installing the shift actuator assembly
1. Install:
• Bracket “1”
• Shift actuator
• Bracket “2”
• Shift actuator bolt “3”, “4”
a. Tighten the shift actuator bolts “3” to and
“4” the specified torques in the order [1],
[2], and so on.
Shift actuator bolt “3”, “4”
19 N·m (1.9 kgf·m, 14 lb·ft)
1
4
5
2
3
6
5
7
8
9
[2][1]
[3]
[4]
2
1
3
4
T
R
.
.
