Yamaha F350B - Flywheel Magneto

7-14

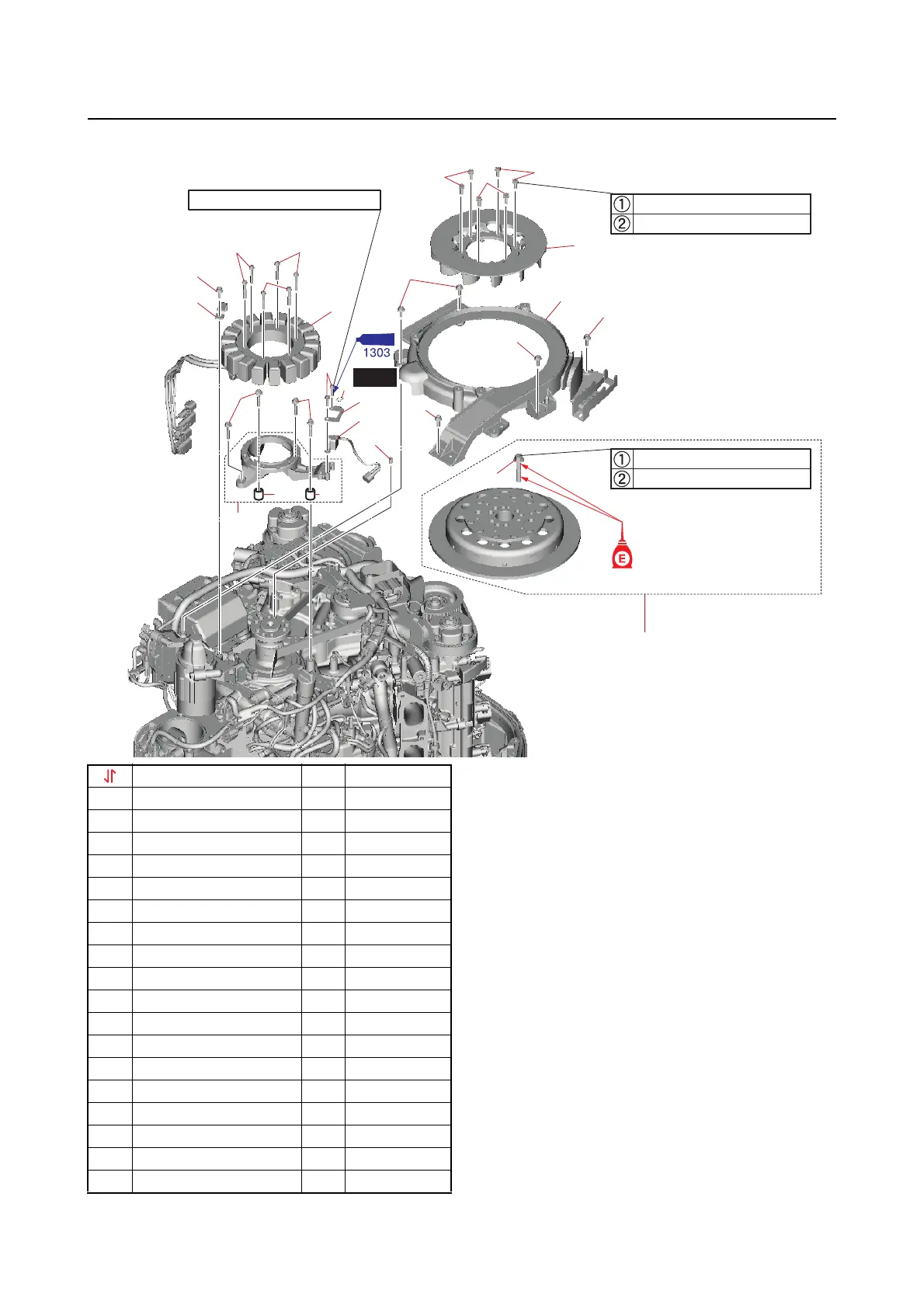

Flywheel magneto
Flywheel magneto
4.0 N·m (0.40 kgf·m, 3.0 lb·ft)
90°
40 N·m (4.0 kgf·m, 30 lb·ft)
8 N·m (0.8 kgf·m, 5.9 lb·ft)
8 N·m (0.8 kgf·m, 5.9 lb·ft)
6
7
11
9
1
14
14
12
14
1
1
3
3
3
5
13
15
16
17
18
16
4
2
3
10
8
18
New
Part name Q’ty Remarks
1Bolt M6  16 mm 6
2Fan 1
3Bolt M6  16 mm 5
4 Air shroud 1
5 Flywheel magneto 1
6Bolt M10  50 mm 6
7 Dowel pin 1
8 Plastic tie 1
9Bolt M5  20 mm 2
10 Bracket 1
11 Pulser coil 1
12 Bolt M6  16 mm 1
13 Holder 1
14 Bolt M6  35 mm 6
15 Stator assembly 1
16 Bolt M6  30 mm 4
17 Base assembly 1
18 Dowel 2
