Outboard motor mounting

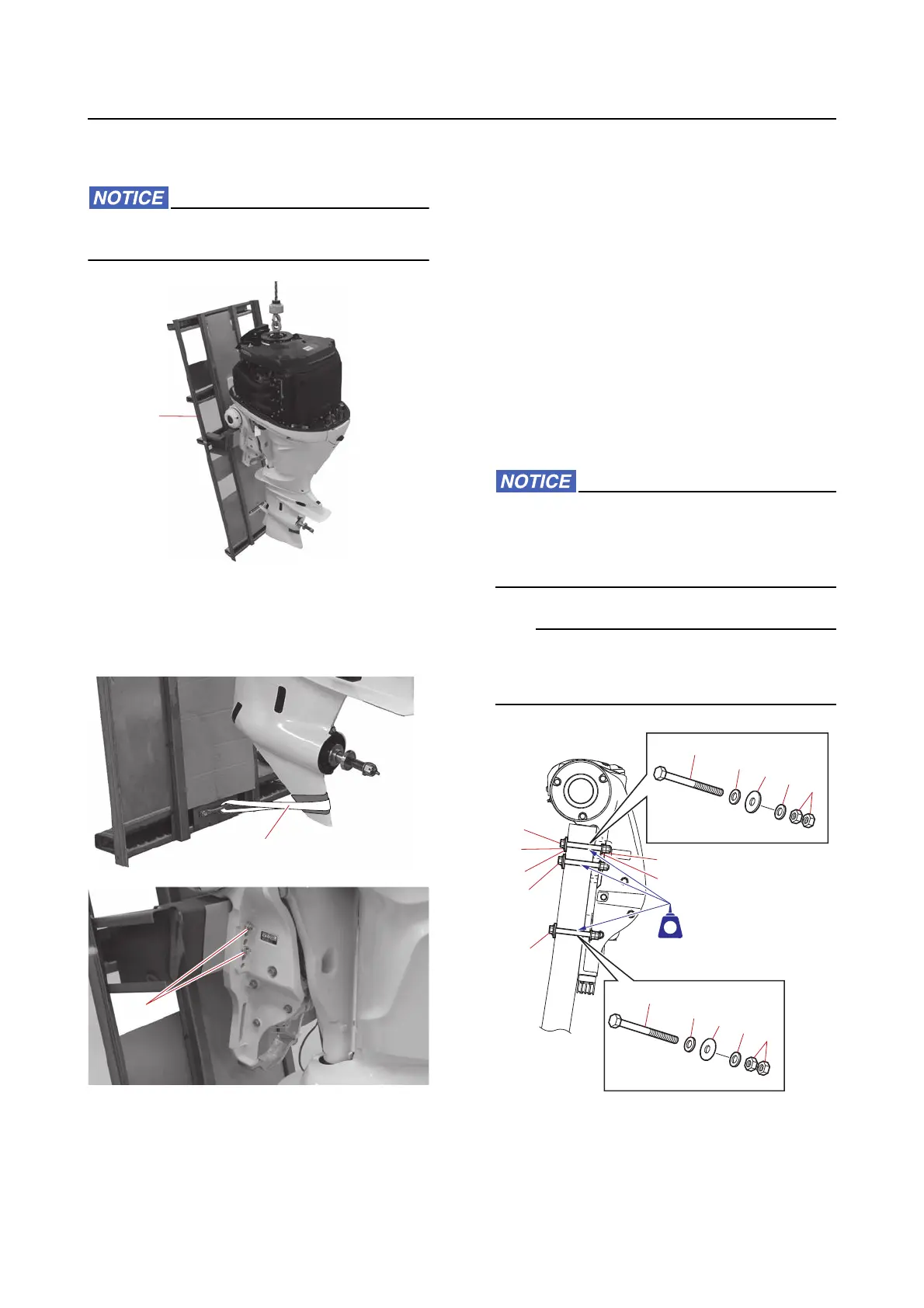

8. Lift up the outboard motor carefully along
with the bottom frame “1”.
Make sure that the lifting harnesses do not
damage any parts of the outboard motor.
9. Remove:
• Skeg holder “1”
• Mount bolt “2”
• Bottom frame
10. Remove the steering retainer, and then in-
stall a steering cable following the recom-
mendation of the manufacturer.
11. For the procedure of outboard motor
mounting on boat, see “Rigging Guide”
(6YR-2819Y-**).
12. Remove the lifting harness and shackles,
and then install the air shroud cover and
top cowling.
Outboard motor mounting
Securing the outboard motor
1. Apply sealant to the mounting holes, and
then secure the outboard motor using the
included mounting bolts “1” and “2”, small
washers “3”, large washers “4”, and nuts
“5”.
Make sure that there is no clearance be-
tween the surfaces of the boat transom and
the clamp brackets. Otherwise, the clamp
brackets or boat transom may be damaged.
The second hole from the top of each clamp
bracket is recommended for the upper mount-
ing bolt.
1
2
