2-48

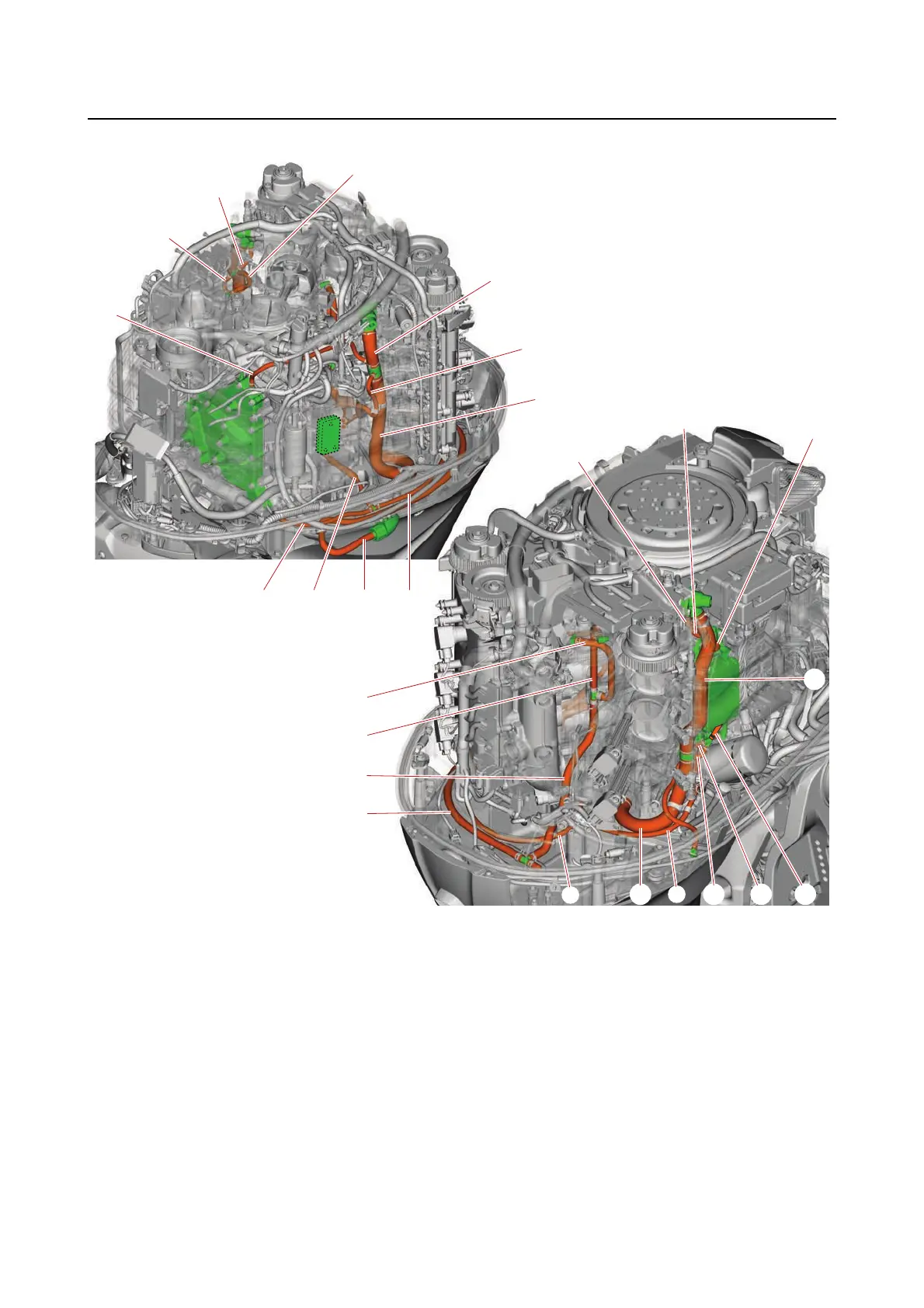

Hose routing
Cooling water hose
11
5
6
10
3
2
1
7
4
9
10
17
16
1
8
14
13
15
12
17
11
9
18
19
20
1. Cylinder block to joint
2. Joint to fuel cooler
3. Fuel cooler to joint
4. Joint to oil cooler
5. Oil cooler to joint
6. Thermostat cover (PORT) to joint
7. Joint to cylinder block
8. Cylinder block to cooling water cover
9. Cooling water cover to joint
10. Thermostat cover (STBD) to joint
11. Joint to rectifier/regulator/isolator
12. Rectifier/regulator/isolator to joint
13. Joint to joint
14. Joint to cooling water outlet
15. Thermostat cover (STBD) to joint
16. Joint to cylinder block
17. Flushing hose adapter to joint
18. Joint to joint
19. Joint to cylinder block (PORT)
20. Joint to cylinder block (STBD)
