Yamaha F350B - Installing the Propeller Shaft Housing Assembly

8-24

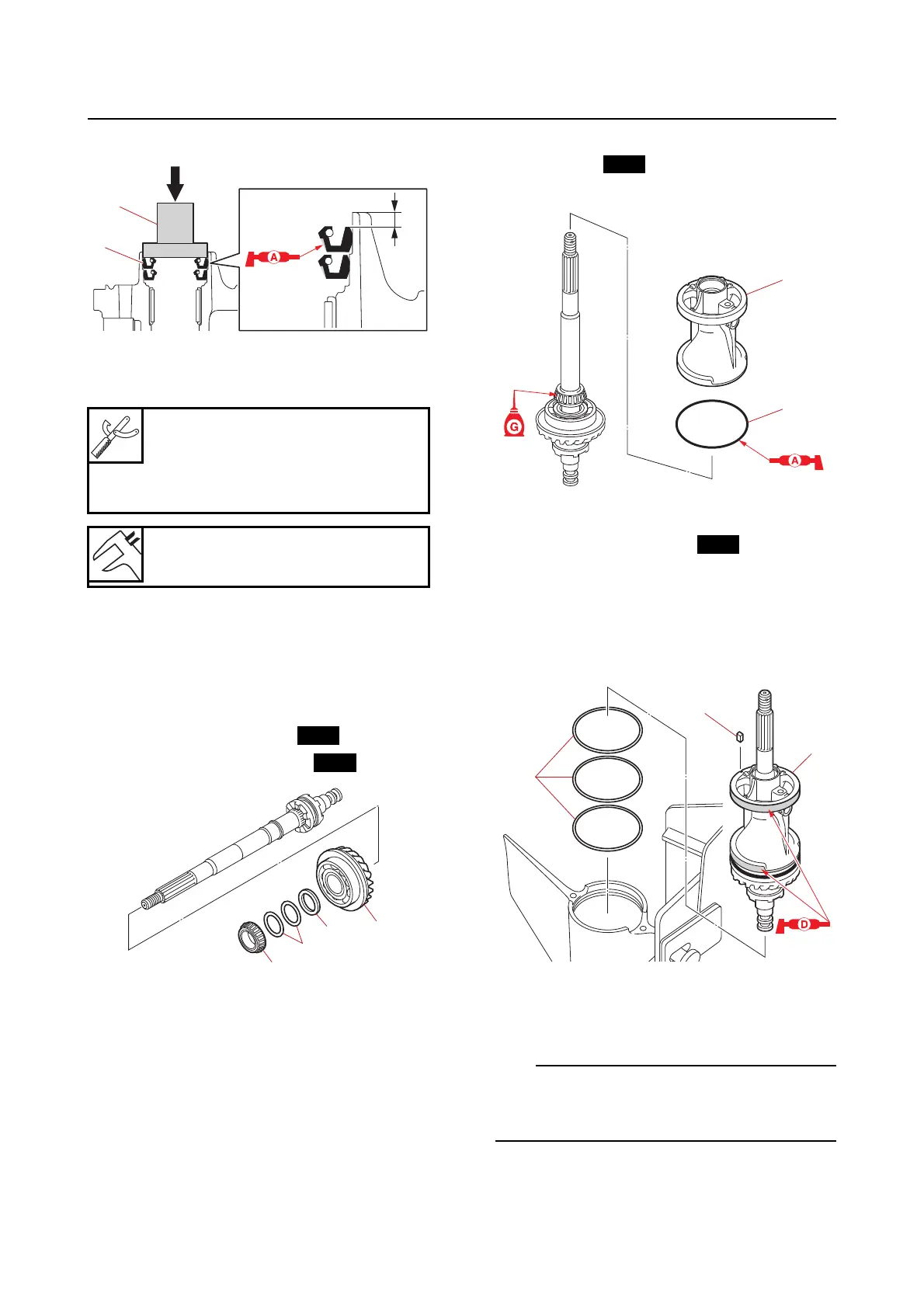

Propeller shaft housing (regular rotation model)
Installing the propeller shaft housing
assembly
1. Install:
• Reverse gear assembly “1”
• Washer “2”
• Propeller shaft shim “3”
• Tapered roller bearing “4”
2. Install:
• O-ring “1”
• Propeller shaft housing assembly “2”
3. Install:
• Reverse gear shim “1”
• Propeller shaft housing assembly “2”
•Key “3”
a. Turn the drive shaft and check that the pro-
peller shaft housing assembly “2” is in-
stalled securely.
4. Install:
• Claw washer “1”
TIP:
Make sure to fit the protrusion “a” on the pro-
peller shaft housing into the slot “b” in the claw
washer “1”.
A. Worldwide
B. USA and Canada
Bearing inner race attachment “2”
90890-06640
Driveshaft bearing installer “3”
YB-06246
Installation depth “a”
4.75–5.25 mm (0.187–0.207 in)
3
aa
B
1
New
New
1
3
2
4
New
2
1
New
2
1
3
