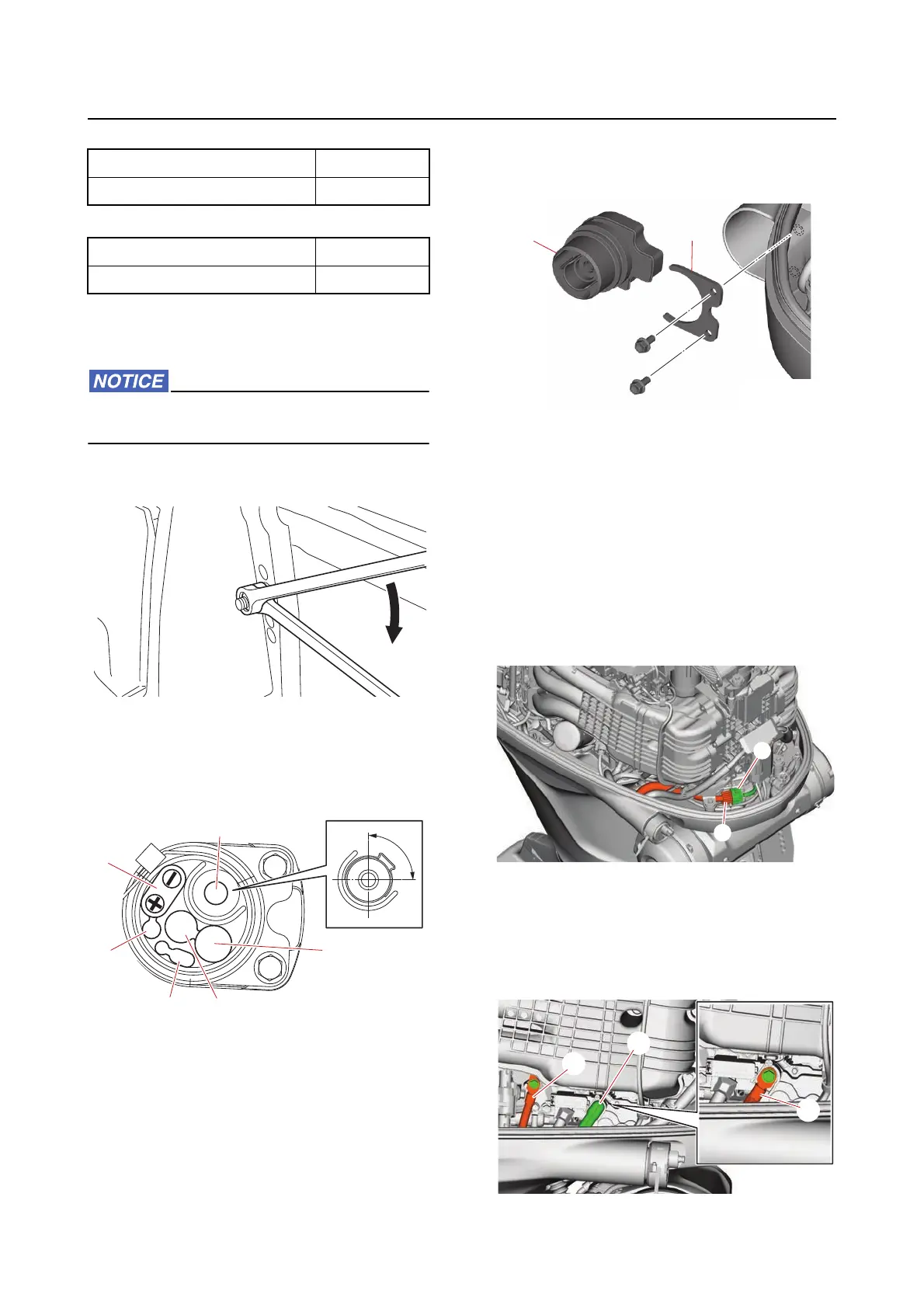

3-5
Rigging grommet mounting
Upper mounting bolt “1”
Lower mounting bolt “2”
2. Install the mounting bolts, and then tighten
the nuts firmly.
Make sure that the clamp brackets do not
bite into the boat transom.
3. Tighten the locknuts firmly.
Rigging grommet mounting
Rigging grommet description
Pass all the rigging components through the
proper holes in the rigging grommet.
1. Remove:
• Grommet holder “1”
• Rigging grommet “2”
Installing the main wire harness
1. Install:
• Main wire harness
2. Route:
Extension wire harness.
See “Bottom cowling” (5-11).
3. Connect:
Extension wire harness coupler “a” (to the
main wire harness coupler “b”)
Installing the battery cable
1. Install:
• Negative battery cable “1”
• Positive battery cable “2”
• Cap “3”
Mounting bolt size Part number
M12 150 mm (5.91 in) 90101-12067
Mounting bolt size Part number
M12 130 mm (5.12 in) 90101-12076
1. Fuel hose
2. Main wire harness
3. Flushing hose (optional)
4. SCU communication lead (optional)
5. Isolator lead (optional)
6. Battery cable
43
2
1
5
90˚
6
1
2
3
1
2
To Next Page
