2-46
Hose routing
Hose routing

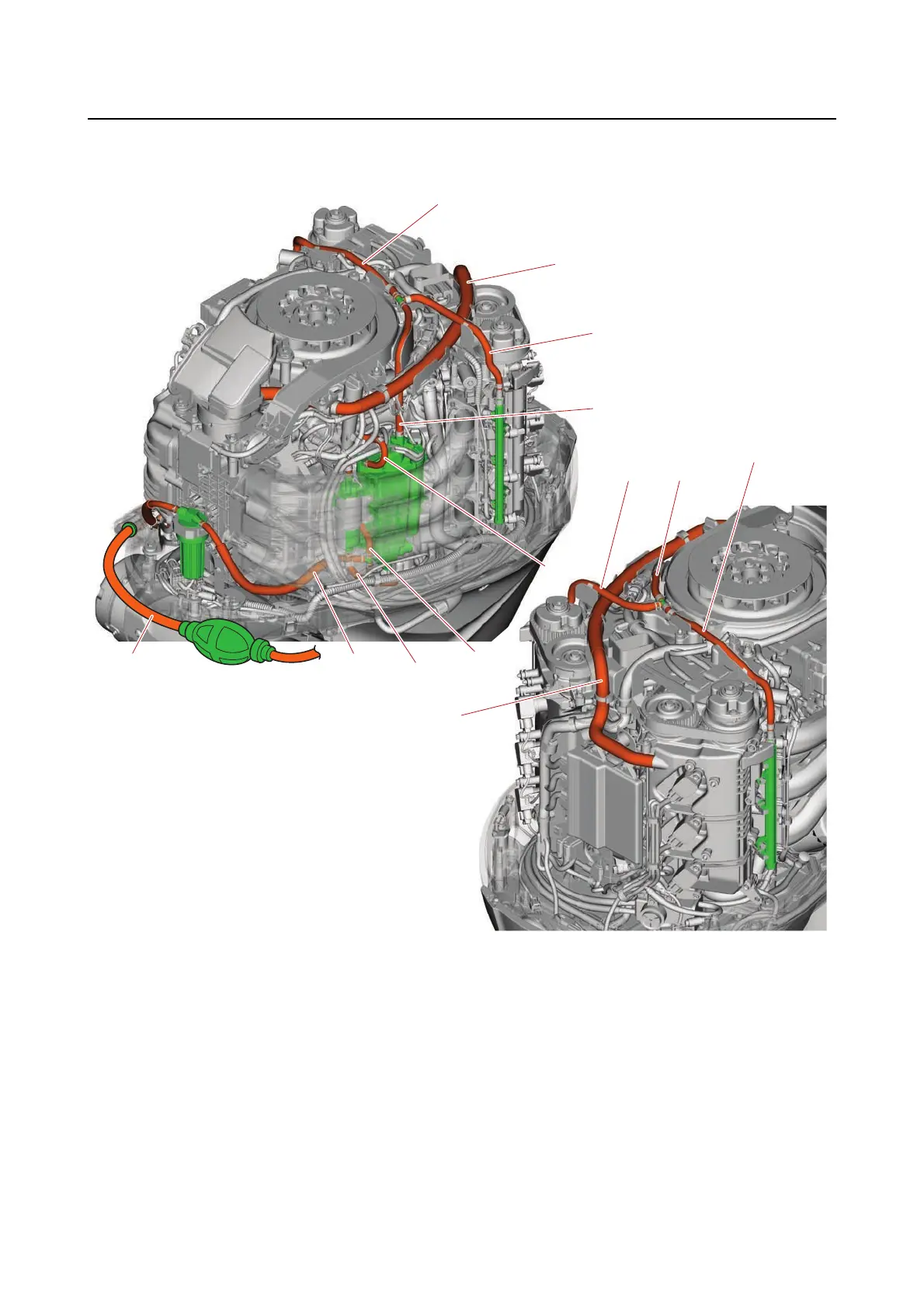

Fuel hose and blowby hose
1
2
3
6
6
7
7
5
5
4
8
9
9
1. Joint to fuel filter assembly
2. Fuel filter assembly to joint
3. Joint to low-pressure fuel pump
4. Low-pressure fuel pump to vapor sep-
arator
5. Vapor separator to joint
6. Joint to quick connector (PORT)
7. Joint to quick connector (STBD)
8. Vapor separator to joint
9. Cylinder head cover (PORT) to intake si-
lencer
To Next Page
