Electronic control system
Charging system
This model features a high output charging system that provides up to 50 A. (generating a maximum
of 74 A)
The built-in isolator allows for recharging both the main battery and the house battery. The Rectifier/
Regulator/Isolator is regulated to charging at 14.5 V.

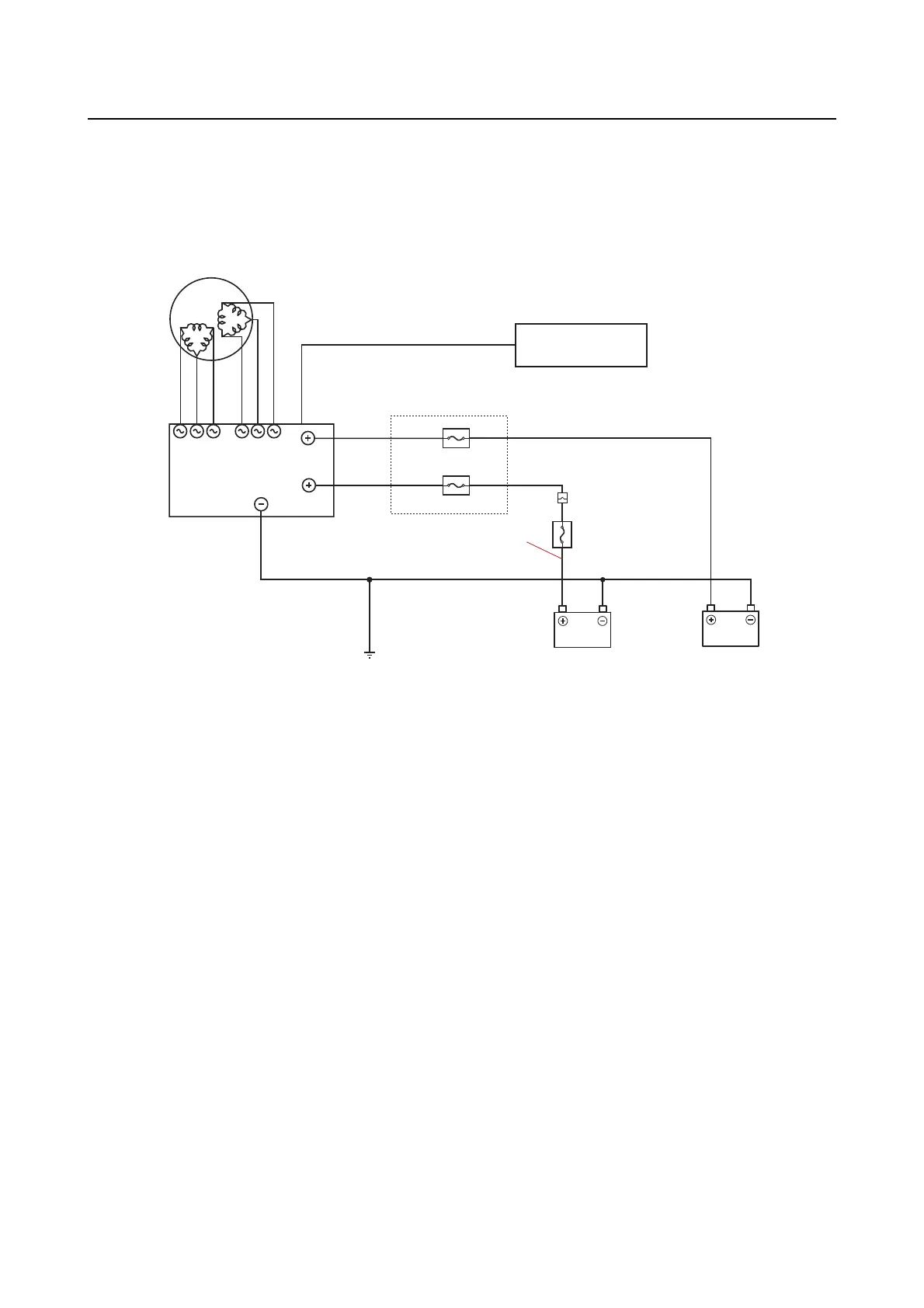

1. Lighting coil (stator assembly)
2. Engine ECM
4. Fuse box
3. Rectifier/
Regulator/
Isolator
5. Isolator lead
(optional)
7. Main battery
6. House battery (optional)
1. Lighting coil (stator assembly)
2. Engine ECM
3. Rectifier/Regulator/Isolator
4. Fuse box
5. Isolator lead (optional)
6. House battery (optional)
7. Main battery
