Yamaha F350B - Junction Box

7-23

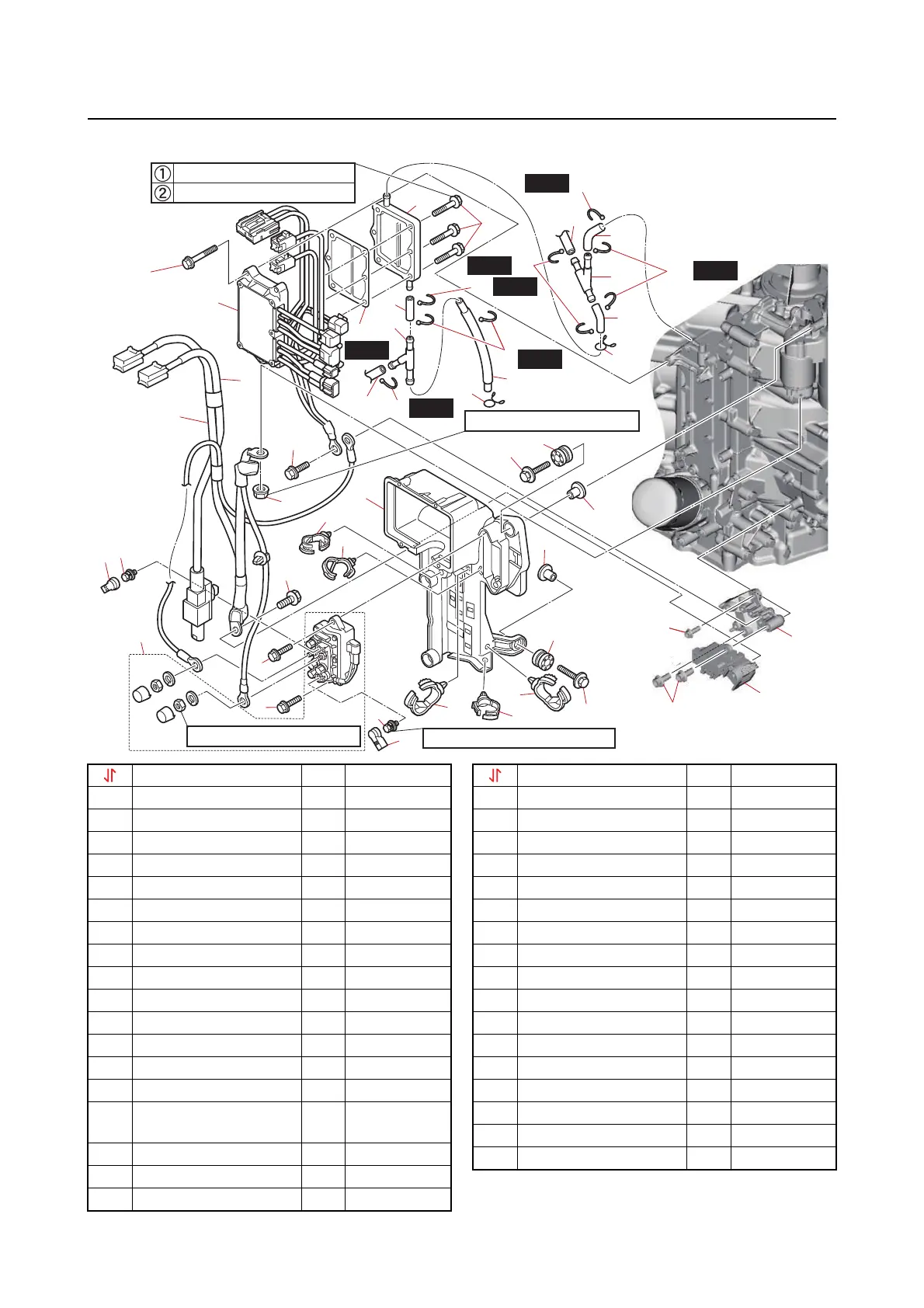

Junction box
Junction box
5 N·m (0.5 kgf·m, 3.7 lb·ft)
4.0 N·m (0.40 kgf·m, 3.0 lb·ft)
6 N·m (0.6 kgf·m, 4.4 lb·ft)
12 N·m (1.2 kgf·m, 8.9 lb·ft)
28
29
13
35
21
23
20
16
26
23
22
25
14
18
15
11
6
7
6
7
8
8
9
12
10
34
31
32
33
3
4
4
30
1
2
1
2
5
17
9
9 N·m (0.9 kgf·m, 6.6 lb·ft)
19
19
19
19
19
24
27
27
New
New
New
New
19
New
New
New
Part name Q’ty Remarks
1Cap 2
2Bolt M6  10 mm 2
3PTT relay 1
4Bolt M6  20 mm 2
5 Junction box 1
6Bolt M6  30 mm 5
7 Grommet 5
8 Collar 5
9Holder 2
10 Holder 1
11 Holder 1
12 Holder 1
13 Bolt M6  15 mm 1
14 Bolt M6  25 mm 3
15
Rectifier/Regulator/
Isolator
1
16 Bolt M6  25 mm 6
17 Cover 1
18 Gasket 1
19 Plastic tie 9
20 Hose 1
21 Hose 1
22 Hose 1
23 Joint 2
24 Hose 1
25 Hose 1
26 Hose 1
27 Clamp 2
28 Wire harness 1
29 Isolator lead 1
30 Bolt M8  16 mm 1
31 Bolt M8  20 mm 2
32 Terminal 1
33 Bracket 1
34 Bolt M6  20 mm 2
35 Nut 1
Part name Q’ty Remarks
