Yamaha F350B - Assembling the Oil Seal Housing

8-33
Drive shaft and lower case (regular rotation model)

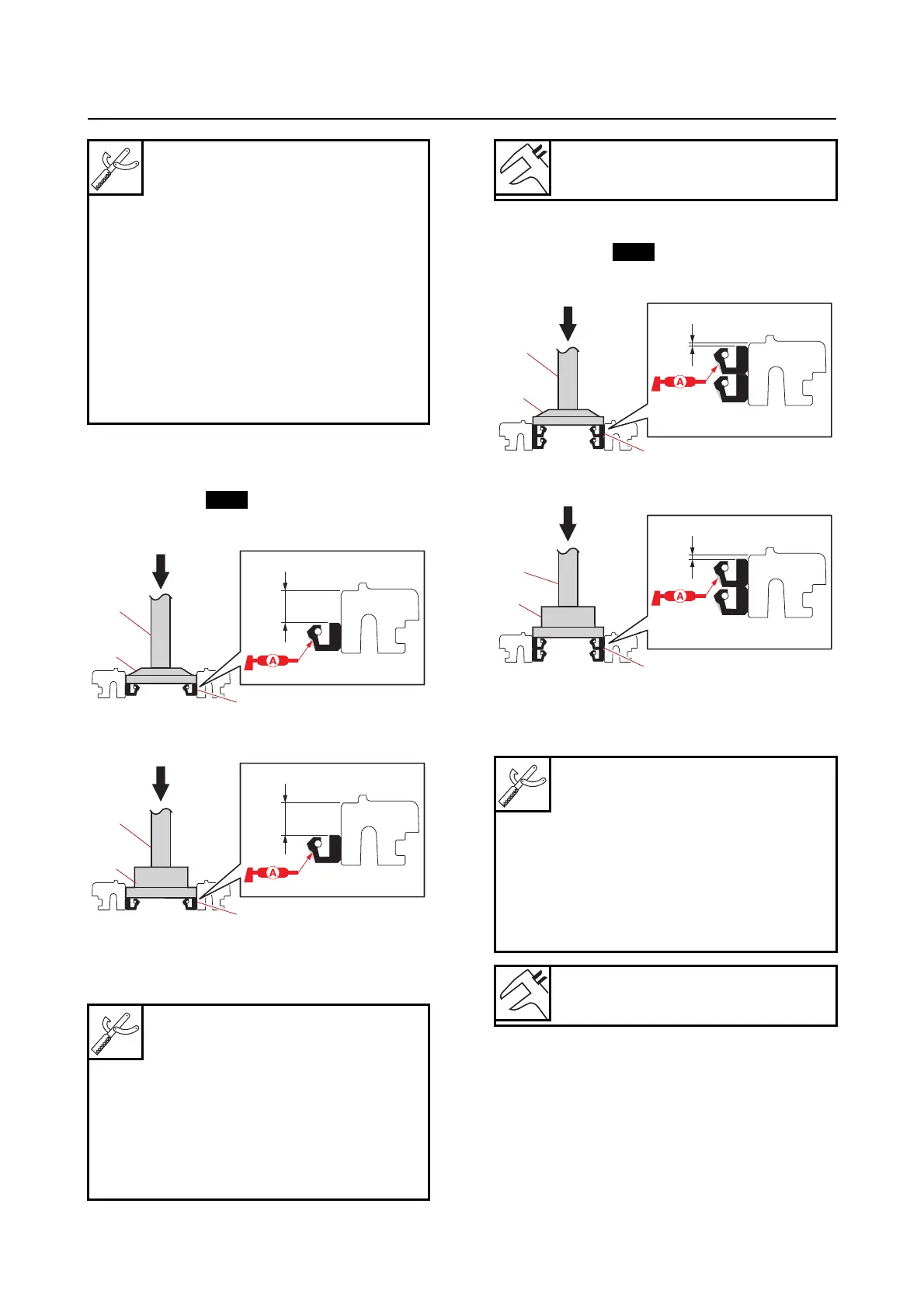

Assembling the oil seal housing
1. Install:
• Oil seal “1”
2. Install:
• Oil seal “1”
Ball bearing attachment “2”
90890-06655
Bearing outer race puller assem-
bly “3”
90890-06523
Driveshaft bearing installer “4”
YB-06246
Pinion gear bushing installer “5”
YB-06029
Roller bearing installer/remover
“6”
YB-06432
A. Worldwide
B. USA and Canada
Bearing outer race attachment “2”
90890-06628
Driver rod LL “3”
90890-06605
Bearing cup installer “4”
YB-06167
Driver handle (large) “5”
YB-06071
New
2
3
1
A
a
4
5
1
B
a
Installation depth “a”
7.25–7.75 mm (0.258–0.305 in)
A. Worldwide
B. USA and Canada
Bearing outer race attachment “2”
90890-06628
Driver rod LL “3”
90890-06605
Bearing cup installer “4”
YB-06167
Driver handle (large) “5”
YB-06071
Installation depth “a”
0.25–0.75 mm (0.001–0.030 in)
New
2
3
1
A
a
4
5
1
B
a
