Yamaha F350B - Pressure Regulator Hose and Vapor Gas Hose

2-47

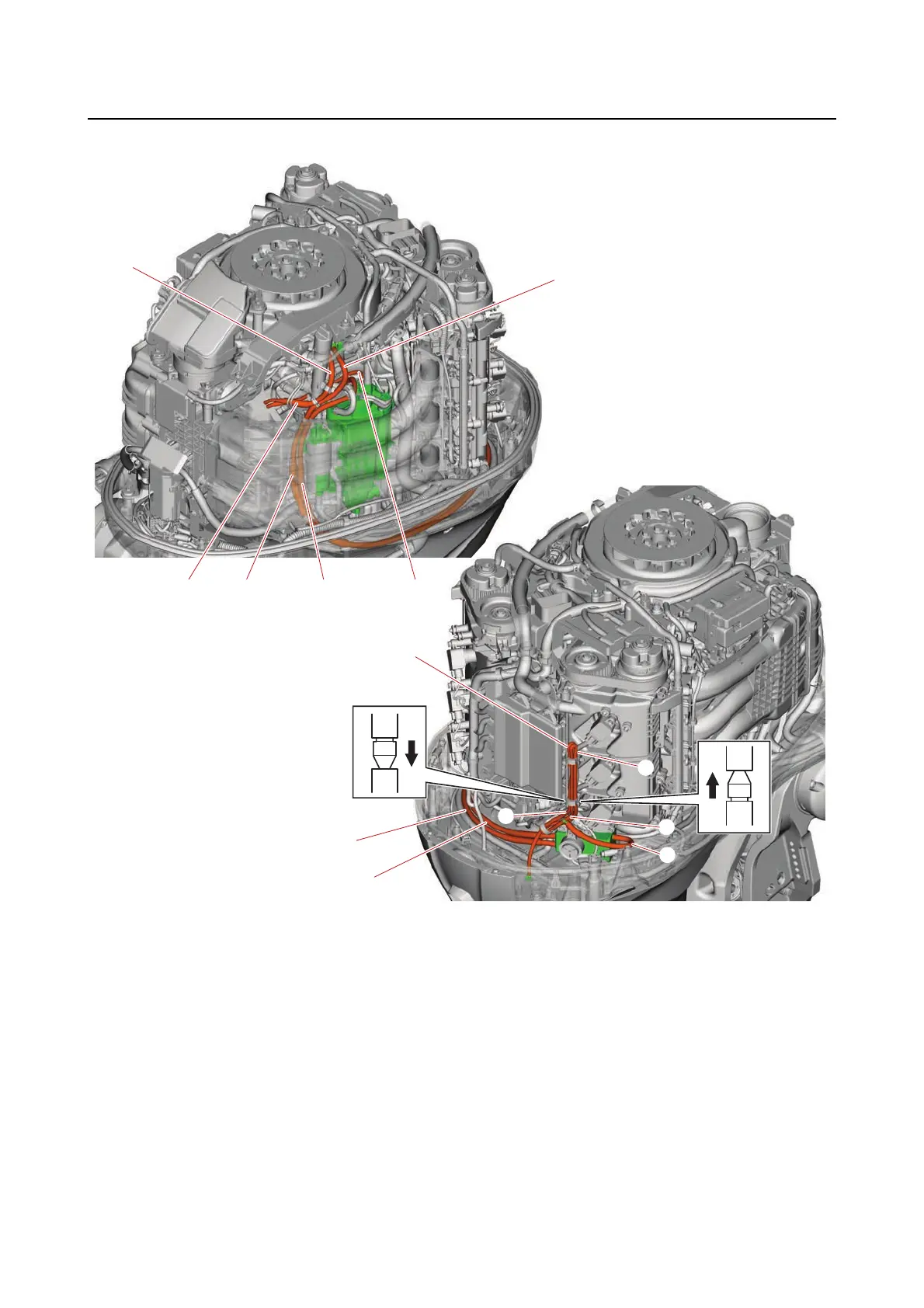

Hose routing
Pressure regulator hose and vapor gas hose
11
5
2 1
3
4
1
2
6
10
9
8
7
1. Vapor separator to canister tank port
2. Canister purge port to joint
3. Joint to vapor shut-off valve
4. Vapor shut-off valve to joint
5. Joint to surge tank
6. Canister atmospheric port to joint
7. Joint to check valve
8. Check valve to bottom cowling
9. Check valve to joint
10. Atmosphere to check valve
11. Pressure regulator to surge tank
