Yamaha F350B - Removing the Propeller Shaft Housing Assembly

8-18
Propeller shaft housing (regular rotation model)
Removing the propeller shaft housing
assembly

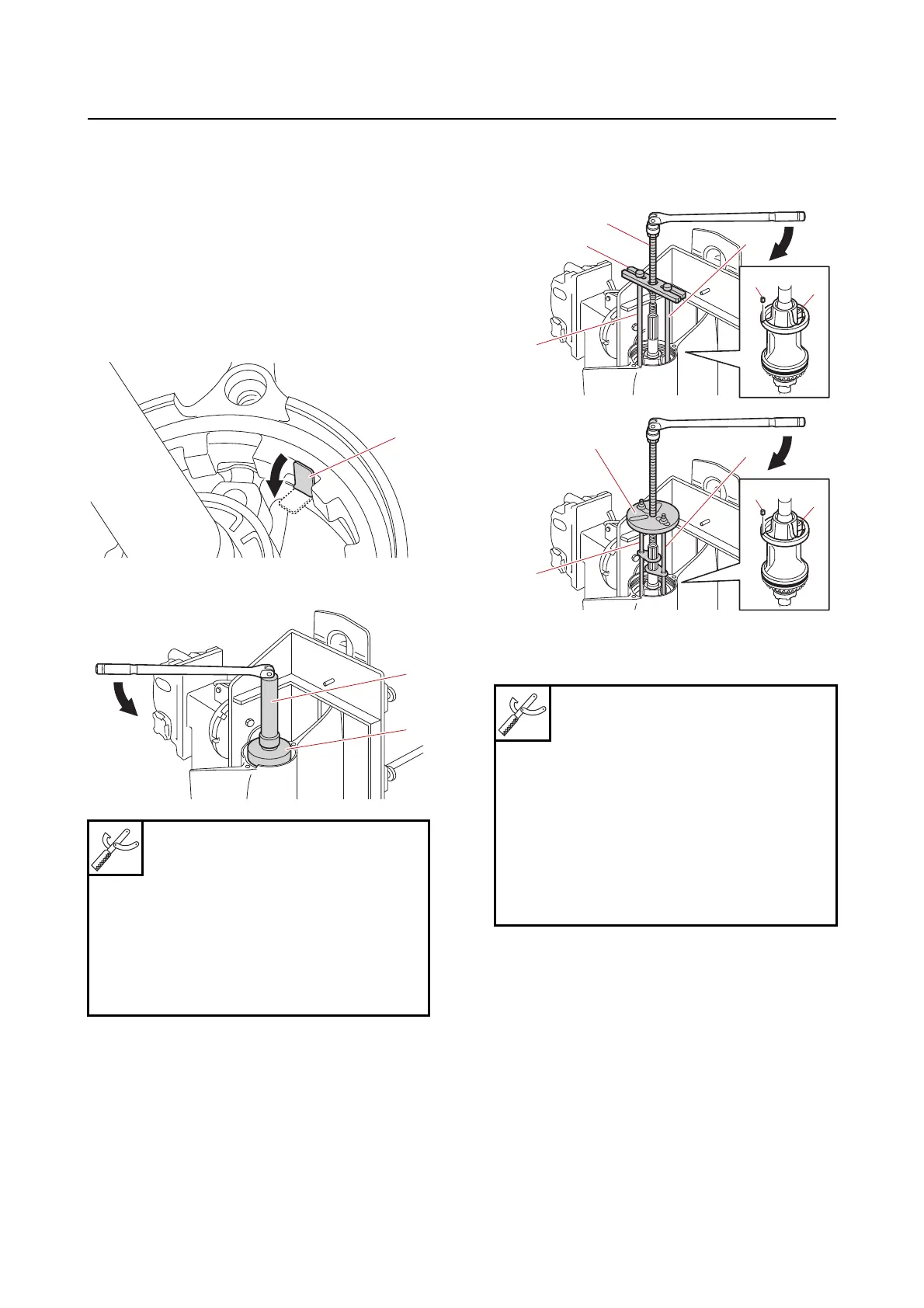

1. Remove:
• Cover
2. Remove:
• Ring nut
• Claw washer
a. Straighten the bent tab “a” on the claw
washer.
b. Loosen the ring nut.
c. Remove the ring nut and claw washer.
3. Remove:
• Propeller shaft housing assembly “1”
•Key “2”
4. Remove:
• Propeller shaft assembly
• Reverse gear shim
•O-ring
5. Remove:
• Tapered roller bearing
• Propeller shaft shim
• Washer
• Reverse gear assembly
Ring nut wrench 6 “1”
90890-06677
Ring nut wrench 6 “1”
YB-06677
Ring nut wrench extension “2”
90890-06513
Ring nut wrench extension “2”
YB-06513
a
2
1
A. Worldwide
B. USA and Canada
Stopper guide plate “3”
90890-06501
Bearing housing puller claw L “4”
90890-06502
Center bolt “5”
90890-06504
Universal Puller “6”
YB-06117
Bearing housing puller “7”
YB-06207
1
2
4
4
3
5
A
6
7
1
2
7
B
