Fuel system

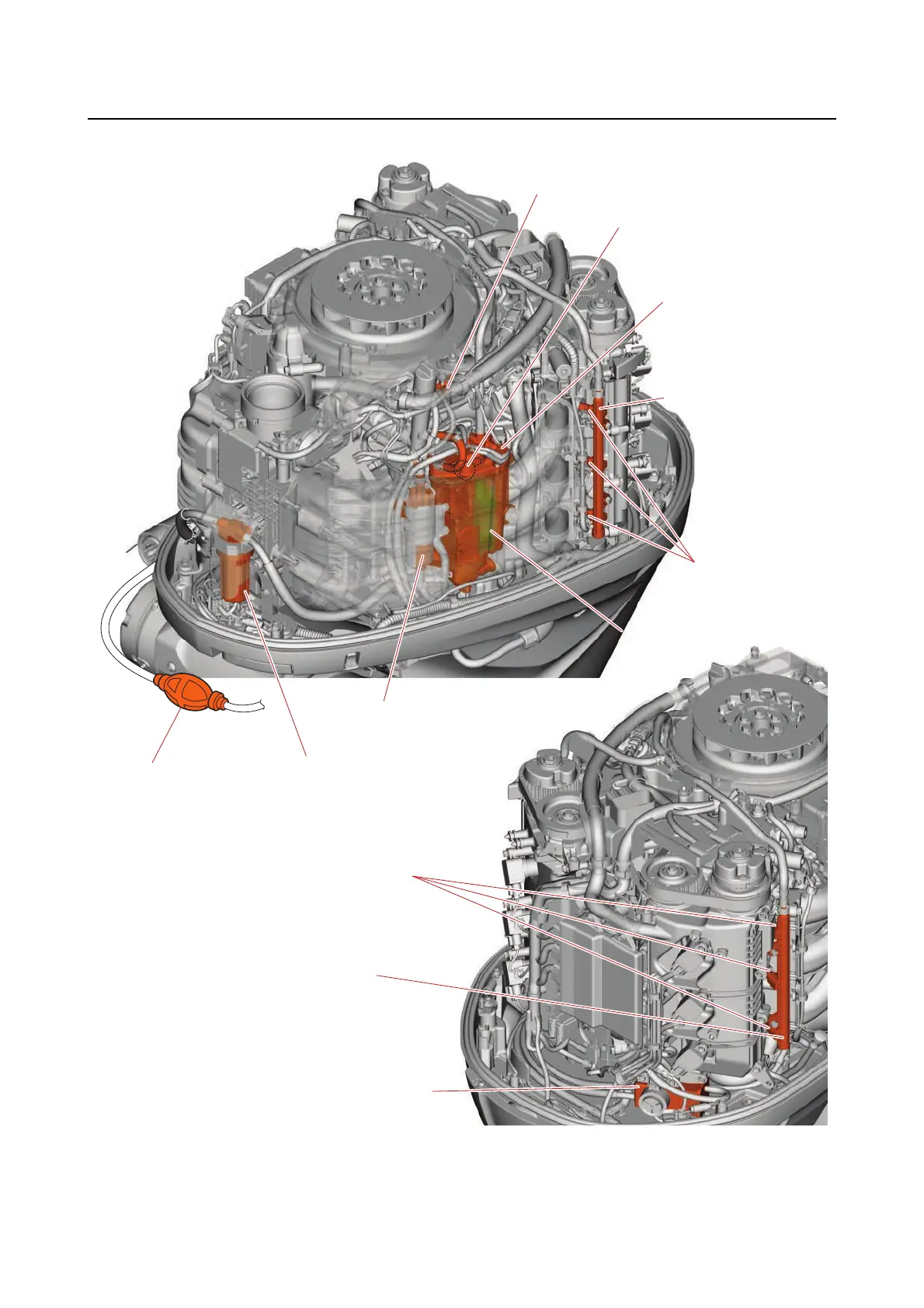

Fuel diagram
8. High-pressure
fuel pump
5. Vapor separator
9. Pressure regulator
18. Vapor shut-off valve
11. Fuel rail (
PORT
)
13. Fuel injector
13. Fuel injector
12. Fuel rail (
STBD
)
3. Fuel filter
2. Primer pump
17. Canister
4. Low-pressure fuel pump
