Yamaha F350B - Assembling the Extension; Checking the Extension; Installing the Extension

8-10
Extension (except for X-transom model)
Checking the extension
1. Check:
• Extension
Cracked/damaged  Replace.

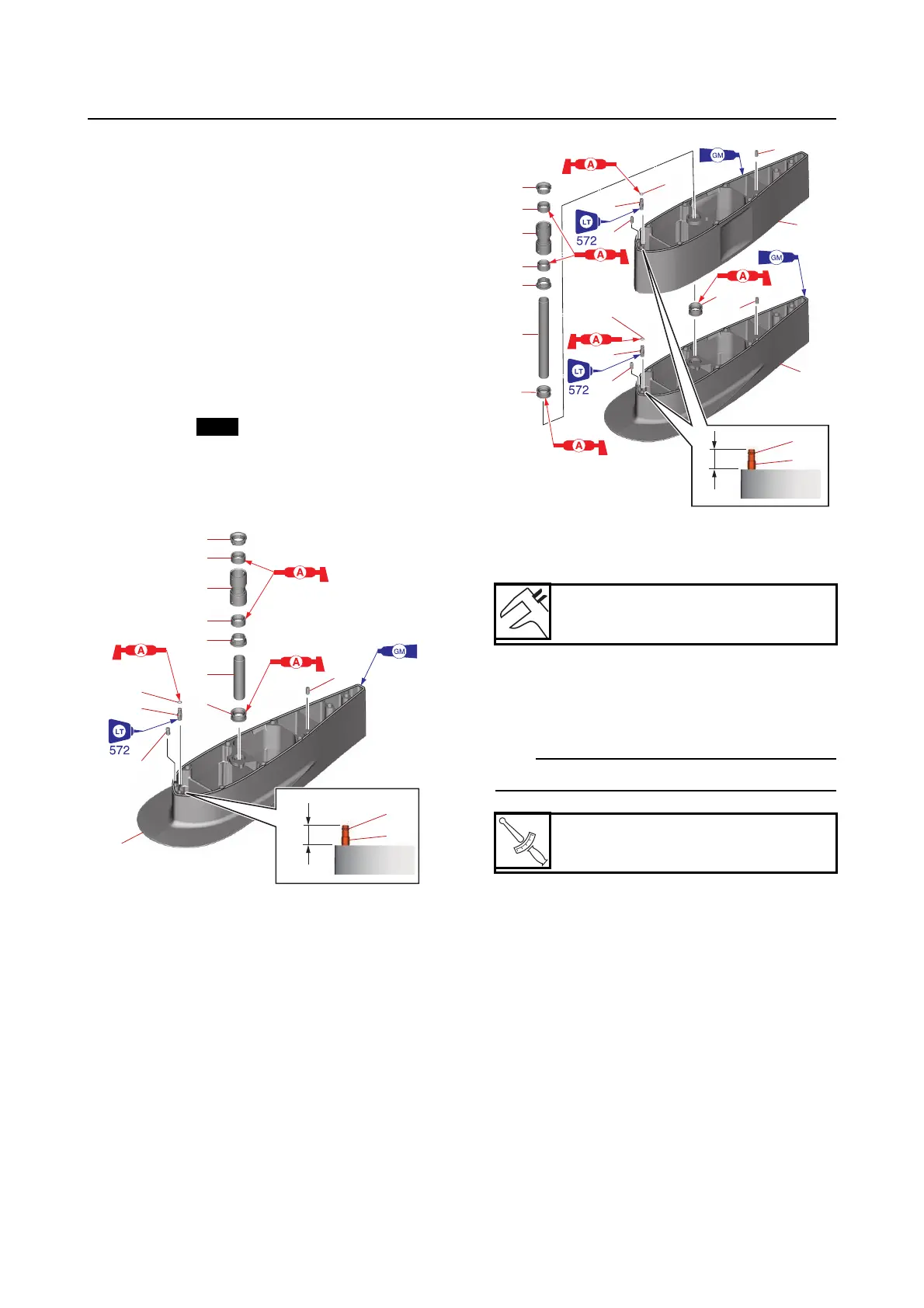

Assembling the extension
1. Install:
• Rubber seal “1”
• Rubber seal “2”
• Cover “3”
• Water tube “4”
• Water tube “5”
• Dowel pin “6”
• O-ring “7”
• Hose nipple “8”
• Extension “9”
• Extension “10”
Installing the extension
1. Install:
• Stud bolt
TIP:
Point the flat end of the stud bolt up.
New
8
7
a
A
9
6
8
7
6
2
3
4
2
3
1
5
A. U-transom model
B. E-transom model
Installation height “a”
23.0–24.5 mm (0.906–0.965 in)
Stud bolt (lower case mounting)
23 N·m (2.3 kgf·m, 17 lb·ft)
8
7
a
6
8
7
B
3
2
4
2
3
5
1
9
10
1
6
6
6
8
7
T
R
.
.
