Yamaha F50A - Page 70

SPEC
Specifications
2-27
62Y3A11

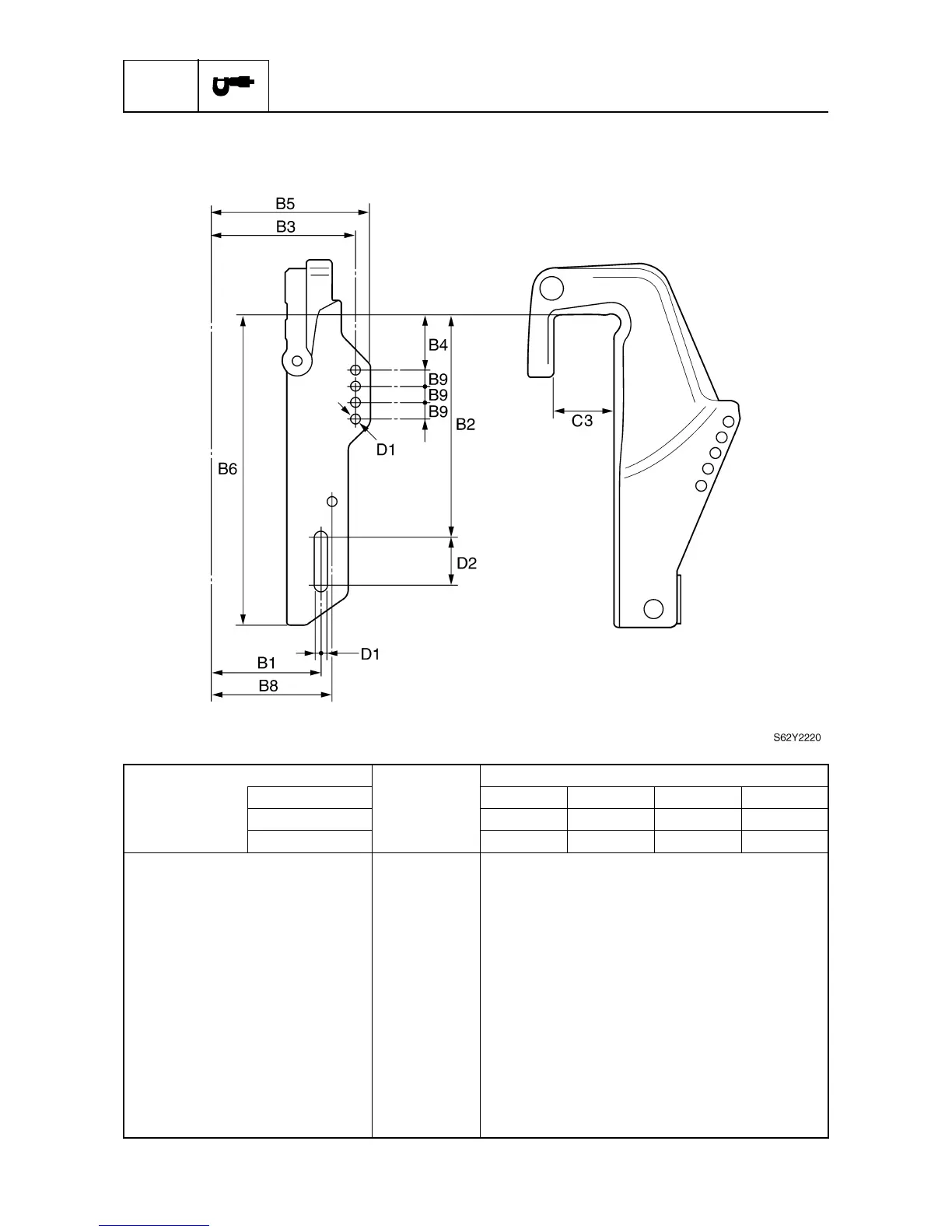

Clamp bracket
Symbol Unit
Model
USA ———F50TR
Canada — F50TH — F50TR
Worldwide F50AEHD F50AEHT F50AED F50AET
B1 mm (in) 126 (5.0)
B2 mm (in) 254 (10.0)
B3 mm (in) 163.5 (6.4)
B4 mm (in) 50.8 (2.0)
B5 mm (in) 180 (7.1)
B6 mm (in) 355 (14.0)
B7 mm (in) —
B8 mm (in) 139 (5.5)
B9 mm (in) 18.5 (0.7)
C2 mm (in) —
C3 mm (in) 69 (2.7)
D1 mm (in) 13 (0.5)
D2 mm (in) 55.5 (2.2)
