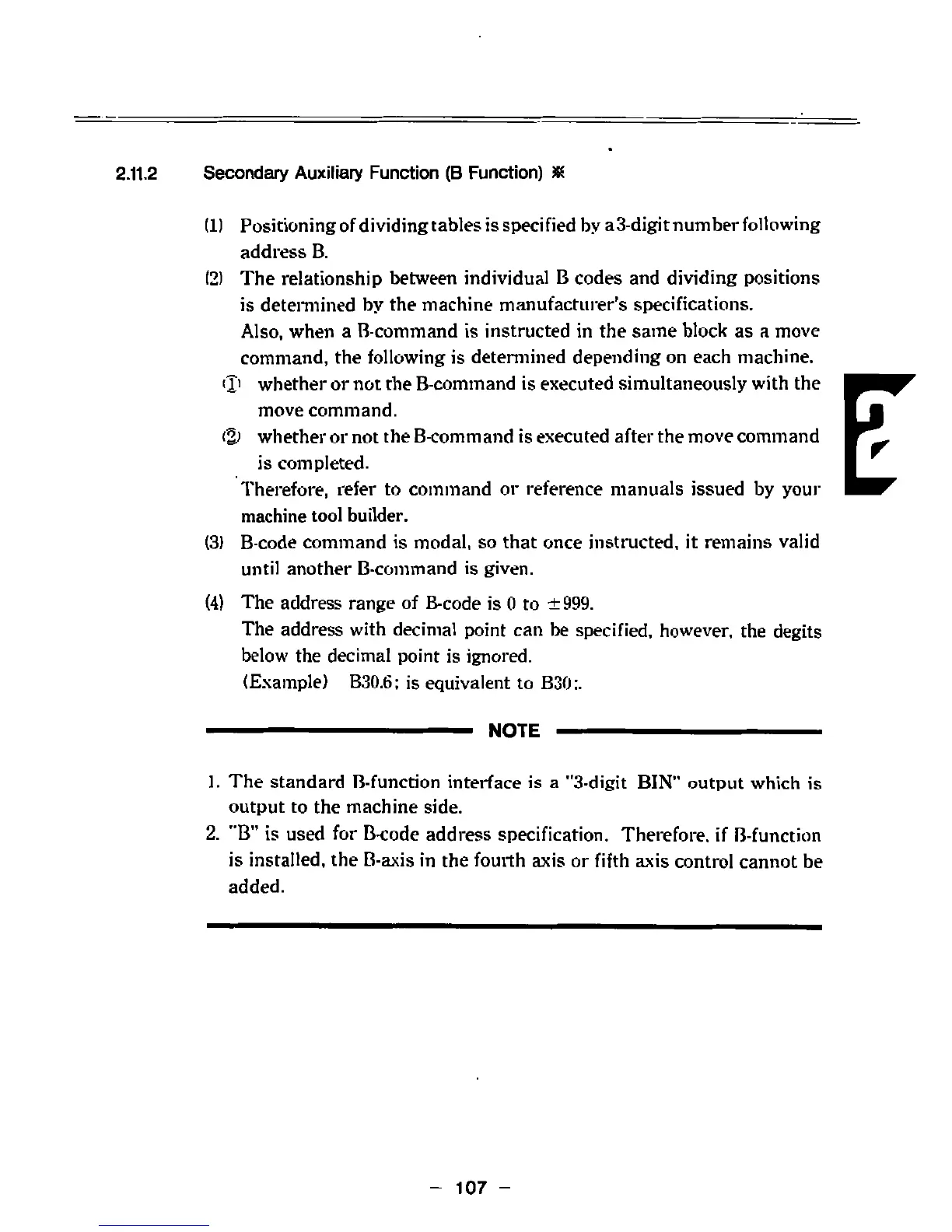

2.11.2
Secondary
Auxiliary
Function
(B
Function)
*
(1)
Positioning
of
dividing
tables
is
specified
by
a
3-digit
number
following
address
B.
(2)
The
relationship
between
individual
B
codes
and
dividing
positions
is
determined
by
the machine
manufacturer’s
specifications.
Also,
when
a
B-command
is
instructed
in
the
same
block
as a
move
command,
the
following
is determined
depending
on
each
machine.
<1>
whether
or
not
the
B-command
is
executed
simultaneously
with
the
move
command.
(2)
whether
or
not
the
B-command
is executed
after
the
move
command
is
completed.
Therefore,
refer
to
command
or
reference
manuals
issued
by
your
machine
tool
builder.
(3)
B-code command is
modal,
so
that
once
instructed,
it
remains
valid
until
another B-command
is
given.
(4)
The
address
range
of
B-code
is
0
to
±999.
The
address
with
decimal
point
can
be
specified,
however,
the
degits
below
the
decimal
point
is
ignored.
(Example)
B30.6;
is
equivalent
to
B30:.
I
NOTE
1.
The standard
B-function
interface
is
a
"3-digit
BIN”
output
which
is
output
to
the
machine
side.
2.
"B”
is
used
for
B-code
address
specification.
Therefore,
if
B-function
is
installed,
the
B-axis
in
the
fourth
axis
or
fifth
axis
control
cannot
be
added.
-
