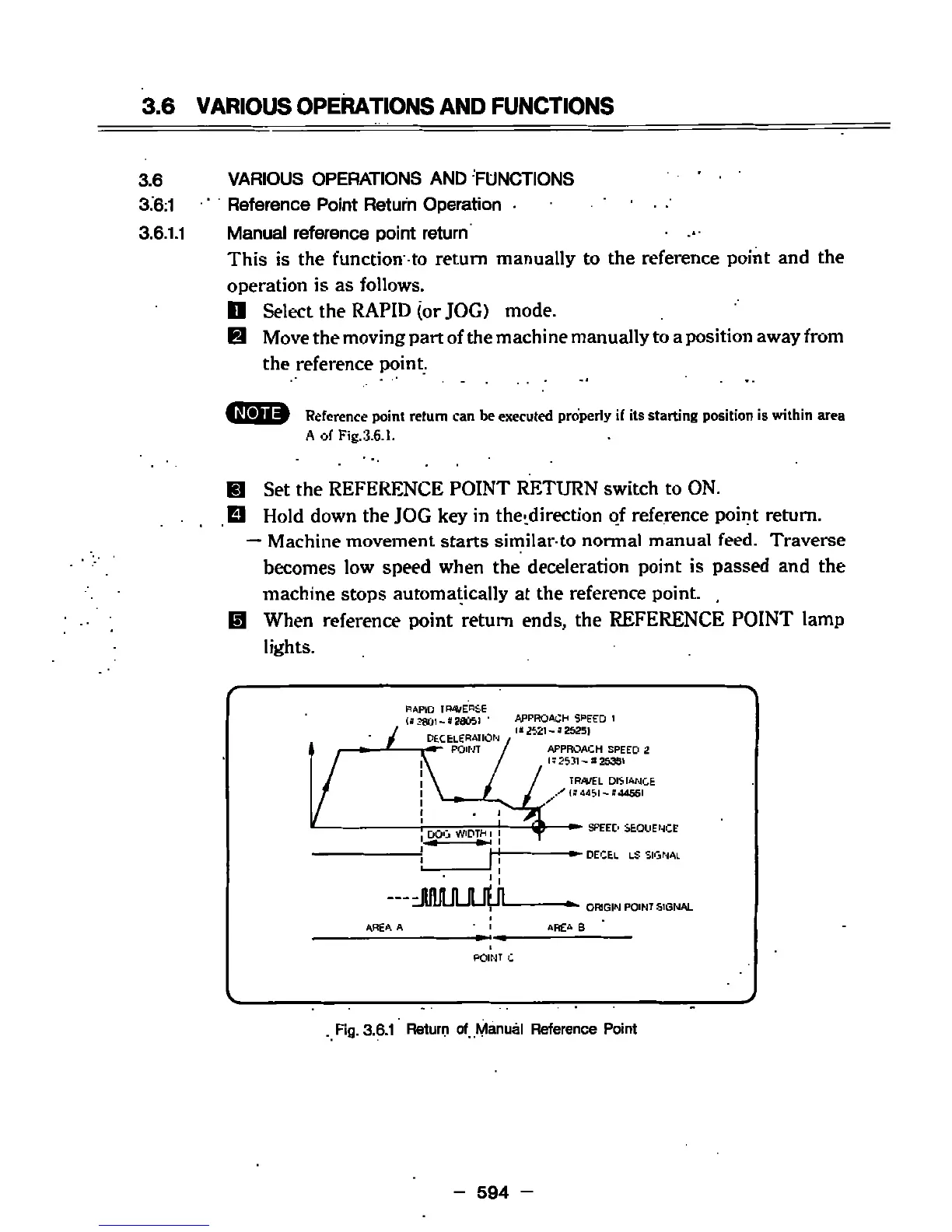

3.6
VARIOUS
OPERATIONS
AND
FUNCTIONS
VARIOUS
OPERATIONS
AND
FUNCTIONS
3.6:1
'
Reference
Point
Return
Operation
•
3.6.1.1
Manual
reference
point
return
This
is
the
function
to
return
manually
to
the
reference
point
and
the
operation
is
as
follows.
D
Select
the
RAPID
(or
JOG)
mode.
B
Move
the
moving
part
of
the
machine
manually
to
a
position
away
from
the
reference
point.
3.6
Reference
point
return
can
be
executed
properly
if
its
starting
position
is
within
A
of
Fig.
3.6.1.
area
B
Set
the
REFERENCE
POINT
RETURN
switch
to
ON.
.
0
Hold
down
the
JOG
key
in
the-.direction
of
reference
point
return.
—
Machine
movement
starts
similar
to
normal
manual
feed.
Traverse
becomes
low
speed
when
the
deceleration
point
is
passed
and
the
machine
stops
automatically
at
the
reference
point.
,
B
When
reference
point
return
ends,
the
REFERENCE
POINT
lamp
lights.
RAPID
TRAVERSE
<»380l-«Wfcl
'
DECELERATION
APPROACH
SPEED
1
«
2521
-s
2525)
APPROACH
SPEED
2
U
2531
25361
TRAVEL
DISTANCE
/
(J
4451
-
«
44561
SPEED
SEQUENCE
I
PTH
DECEL
IS
SIGNAL
—
JtlUUUUpl
ORIGIN
POINT
SIGNAL
AREA
A
ARE*
B
POINT
C
Fig.
3.6.1
Return
of
Manual
Reference
Point
-
594
-
