YASKAWA yasnac i80m

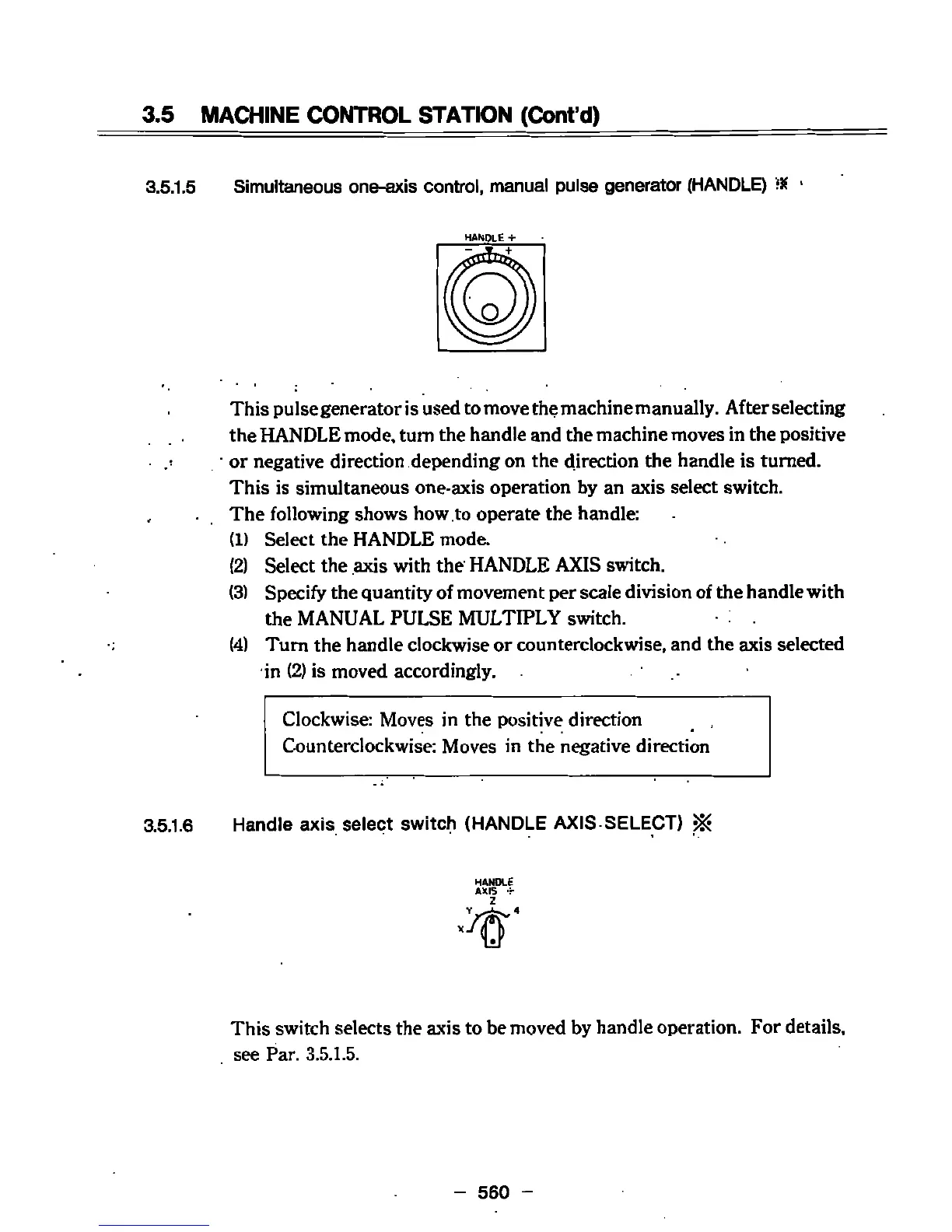

3.5
MACHINE
CONTROL STATION
(Cont’d)
3.5.1
.5
Simultaneous
one-axis
control,
manual
pulse
generator
(HANDLE)
•*
1
HANDLE
-i-
©
This
pulse
generator
is used
to
move
the
machine
manually.
After
selecting
the
HANDLE
mode,
turn
the
handle and
the
machine
moves
in
the
positive
or
negative
direction
depending
on
the
direction
the
handle
is turned.
This
is
simultaneous
one-axis
operation
by
an
axis
select
switch.
The
following
shows
how.
to
operate
the
handle:
(1)
Select
the
HANDLE
mode.
(2)
Select
the
axis
with
the
HANDLE
AXIS
switch.
(3)
Specify
the
quantity
of
movement
per
scale
division
of
the
handle
with
the
MANUAL
PULSE
MULTIPLY
switch.
(4)
Turn
the
handle
clockwise
or
counterclockwise,
and
the
axis
selected
in
(2)
is
moved
accordingly.
mi
Clockwise:
Moves
in
the
positive
direction
Counterclockwise:
Moves
in
the
negative
direction
Handle
axis
select
switch
(HANDLE
AXIS
SELECT)
SK
3.5.1
.6
HANDLE
AXIS
4
This
switch selects
the axis
to
be
moved
by
handle
operation.
For
details,
see
Par.
3.5.
1.5.
-
560
-
