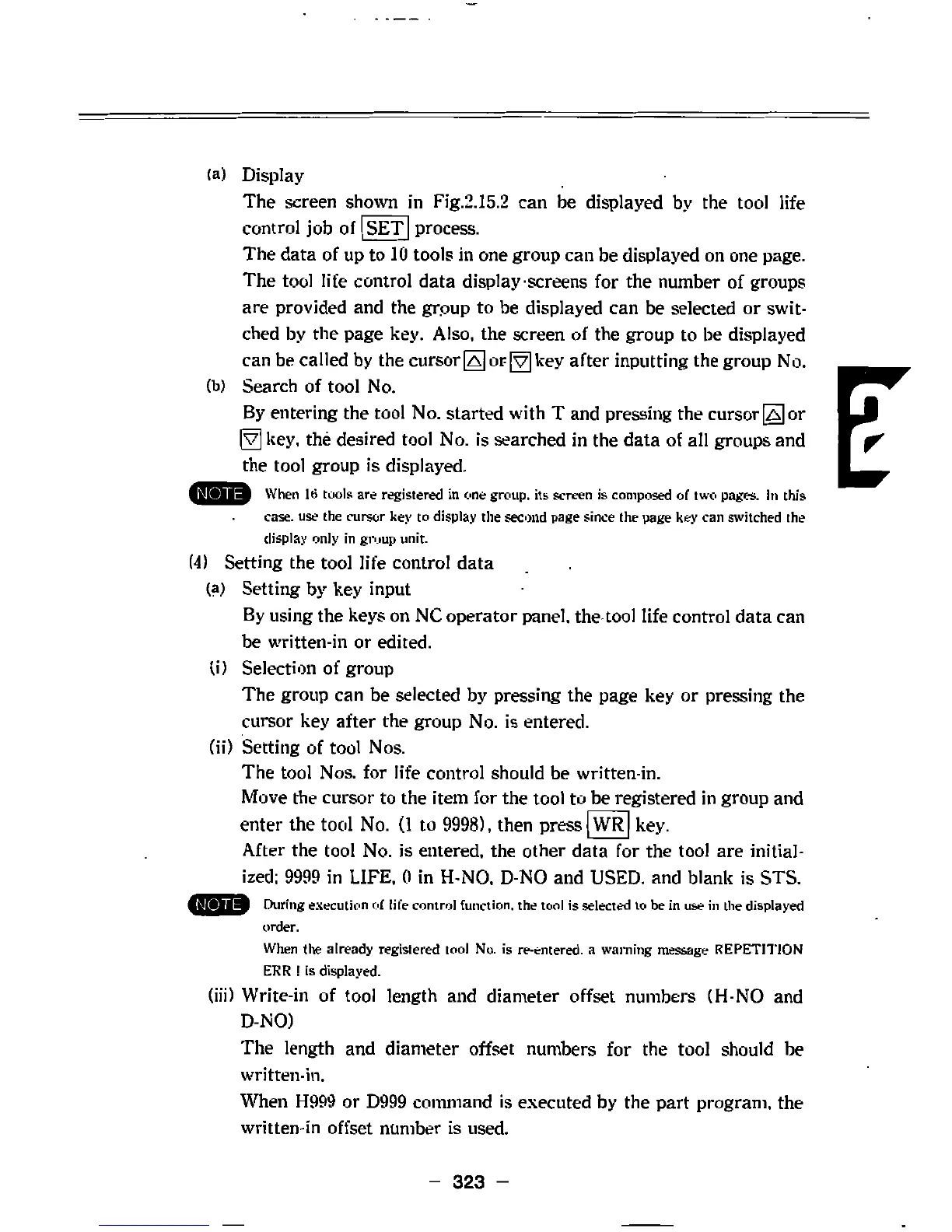

YASKAWA yasnac i80m

(a)
Display
The
screen
shown
in
Fig.2.15.2
can
be
displayed
by
the
tool
life
control
job
of
[
SET
|
process.
The
data
of
up
to
10
tools
in
one
group
can
be
displayed
on
one
page.
The
tool
life
control data
display
screens
for
the
number
of
groups
are
provided
and
the
group
to
be
displayed
can
be
selected
or
swit¬
ched
by
the
page
key.
Also,
the
screen
of
the
group
to
be
displayed
can
be
called
by
the
cursor
[A]
or
[v|
key
after
inputting
the
group
No.
(b)
Search
of
tool No.
By
entering
the
tool
No.
started
with
T
and
pressing
the
cursor
[A]
or
@
key,
the
desired tool No.
is
searched
in
the
data
of
all
groups
and
the
tool
group
is
displayed.
When
16
tools
are
registered
in
one
group,
its
screen
is
composed
of
two
pages.
In
this
case,
use
the
cursor
key
to
display
the second
page
since
the
page
key
can
switched
the
display
only
in
group
unit.
(4)
Setting
the
tool
life
control
data
(a)
Setting
by key
input
By
using
the
keys
on
NC
operator
panel,
the tool
life
control data
can
be
written-in
or
edited.
(i)
Selection
of
group
The
group
can
be
selected
by
pressing
the
page
key
or
pressing
the
cursor
key
after
the
group
No.
is
entered.
Cii)
Setting
of
tool
Nos.
The
tool Nos.
for
life
control
should
be
written-in.
Move the
cursor
to
the
item
for
the
tool
to
be
registered
in
group
and
enter
the
tool
No.
(1
to
9998),
then
press
|
WR|
key.
After
the
tool
No.
is
entered,
the
other
data
for
the
tool
are
initial¬
ized;
9999
in
LIFE.
0
in
H-NO,
D-NO
and
USED,
and
blank
is
STS.
During
execution
of
life
control
function,
the
tool
is selected
to
be
in
use
in
the
displayed
order.
When
the
already
registered
tool
No.
is
re-entered,
a
warning
message
REPETITION
ERR
!
is
displayed.
(iii)
Write-in
of
tool
length
and
diameter
offset
numbers
(H-NO
and
D-NO)
The
length
and
diameter
offset
numbers
for
the
tool
should be
written-in.
When
H999
or
D999
command is executed
by
the
part
program,
the
written-in
offset
number
is
used.
I
-
323
-
