YASKAWA yasnac i80m

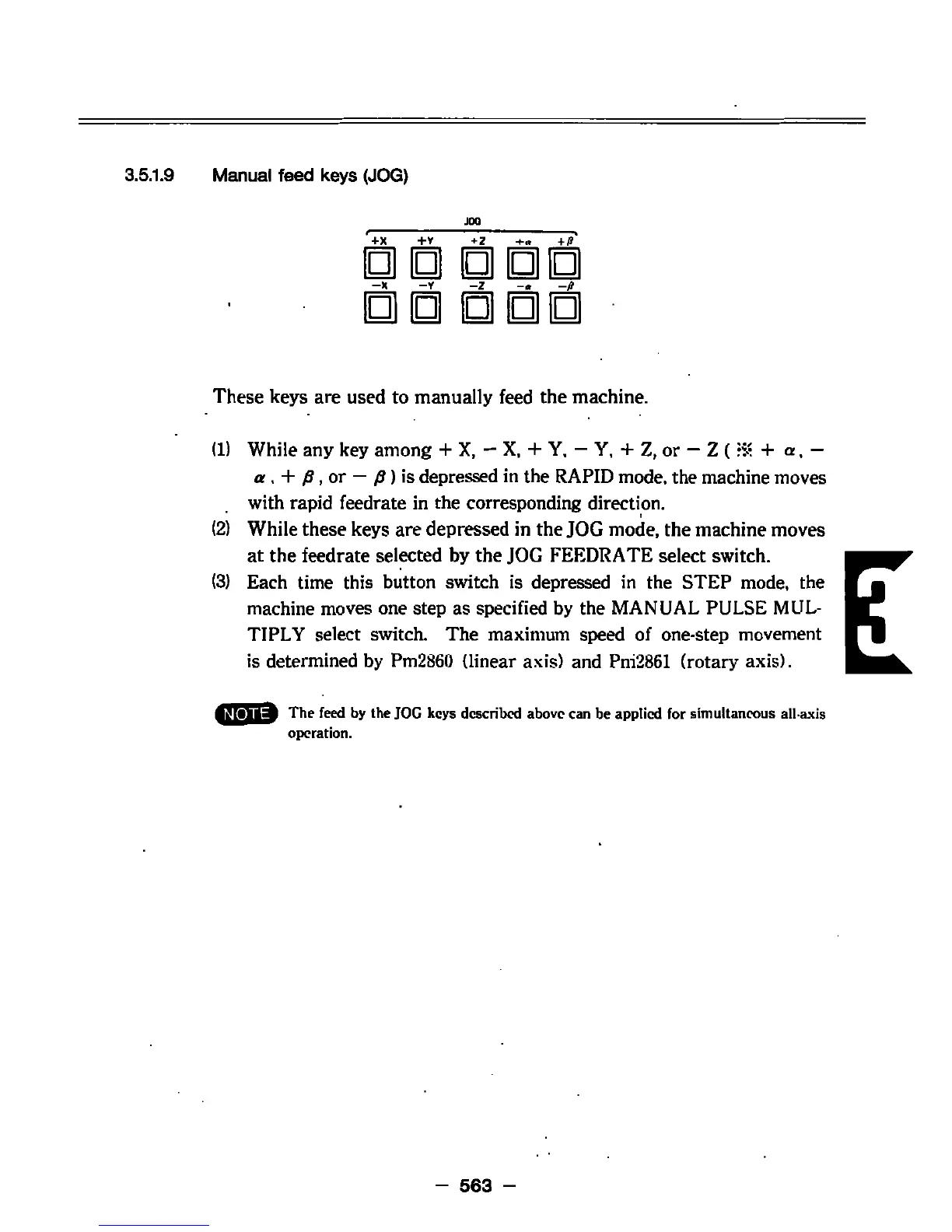

3.5.1
.9
Manual
feed
keys
(JOG)
JOG
*+X
+Y
*2
-t-n
O ODD
o
ODD
These
keys
are
used
to
manually
feed
the
machine.
(1)
While
any
key
among
+
X,
—
X,
+
Y.
—
Y,
+
Z,
or
—
Z
(
+
a,
-
a
,
+
fi
,
or
—
p
)
is
depressed
in
the
RAPID
mode,
the
machine
moves
with
rapid
feedrate
in
the
corresponding
direction.
(2)
While
these
keys
are
depressed
in
the
JOG
mode,
the
machine
moves
at
the
feedrate
selected
by
the
JOG
FEEDRATE
select switch.
(3)
Each
time
this button
switch
is
depressed
in
the
STEP
mode,
the
machine
moves
one
step
as
specified
by
the
MANUAL
PULSE
MUL¬
TIPLY
select
switch. The
maximum
speed
of
one-step
movement
is
determined
by
Pm2860
(linear
axis)
and
Pni2861
(rotary
axis)
.
E
The
feed
by
the
JOG
keys
described
above
can
be
applied
for
simultaneous
all-axis
operation.
-
563
-
