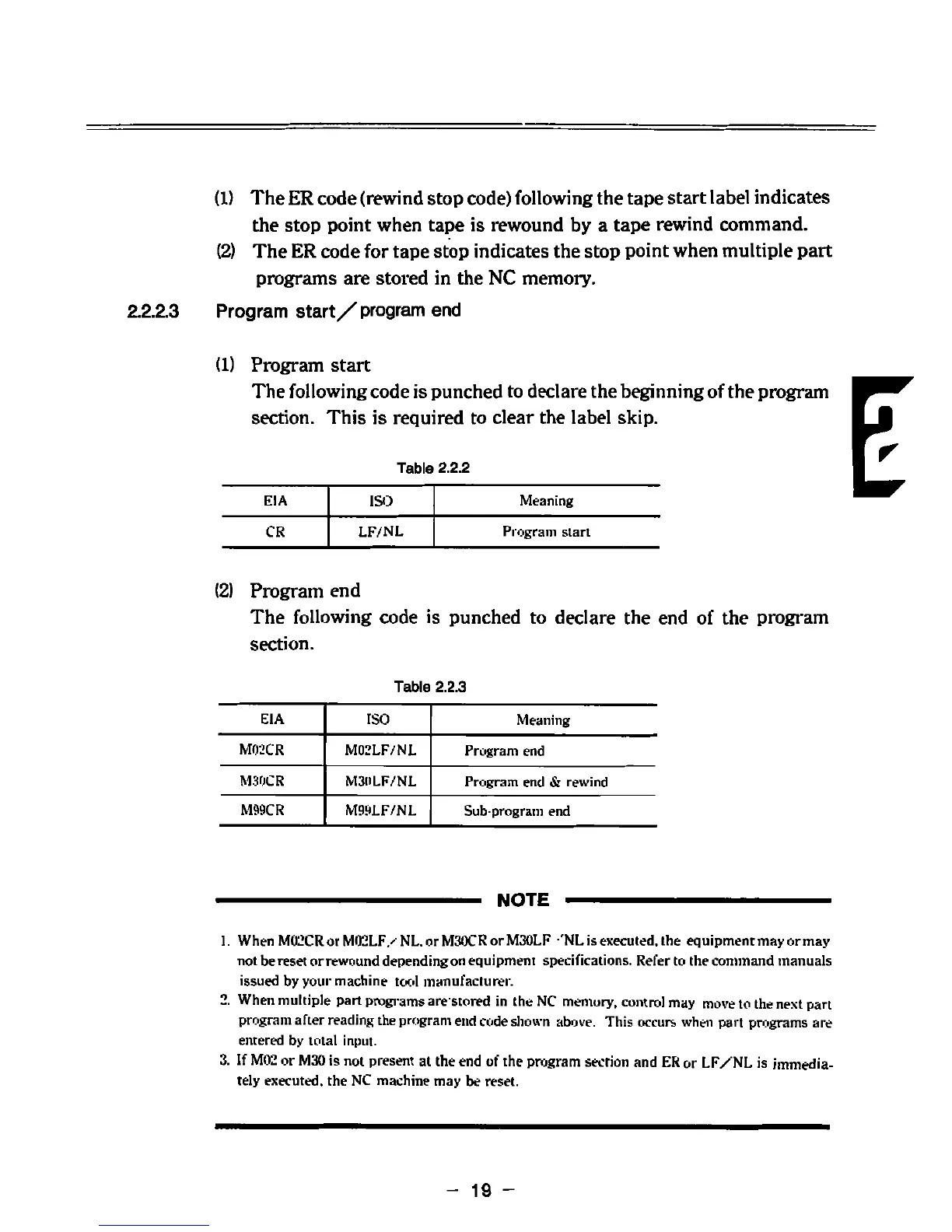

The
ER
code
(rewind
stop
code)
following
the
tape
start
label
indicates
the
stop
point
when
tape
is rewound
by
a
tape
rewind
command.
(2)
The
ER
code
for
tape
stop
indicates
the
stop
point
when
multiple
part
programs
are
stored
in
the
NC
memory.
Program
start,/
program
end
2.2.2.3
(1)
Program
start
The
following
code
is
punched
to
declare
the
beginning
of
the
program
section.
This is
required
to
clear the label
skip.
I
Table
2.2.2
Meaning
EIA
ISO
CR
LF/NL
Program
start
(2)
Program
end
The
following
code
is
punched
to
declare the end
of
the
program
section.
Table
2.2.3
EIA
ISO
Meaning
M02CR
M02LF/NL
Program
end
M30CR
M30LF/NL
Program
end
&
rewind
M99CR M99LF/NL
Sub
program
end
NOTE
1.
When
M02CRorM02LF/NL.orM30CRorM30LF
'NL
is
executed,
the
equipmenrmay
ormay
not
be
reset
or
rewound
depending
on
equipment
specifications.
Refer
to
the
command manuals
issued
by
your
machine
tool
manufacturer.
2.
When
multiple
part
programs
arestored
in
the
NC
memory,
control
may
move
to
the
next
part
program
after
reading
the
program
end
code
shown
above.
This
occurs
when
part
programs
are
entered
by
total
input.
3.
If
MCC
or
M30
is
not
present
at
the end
of
the
program
section
and
ER
or
LF/NL
is
immedia¬
tely
executed,
the
NC
machine
may
be
reset.
