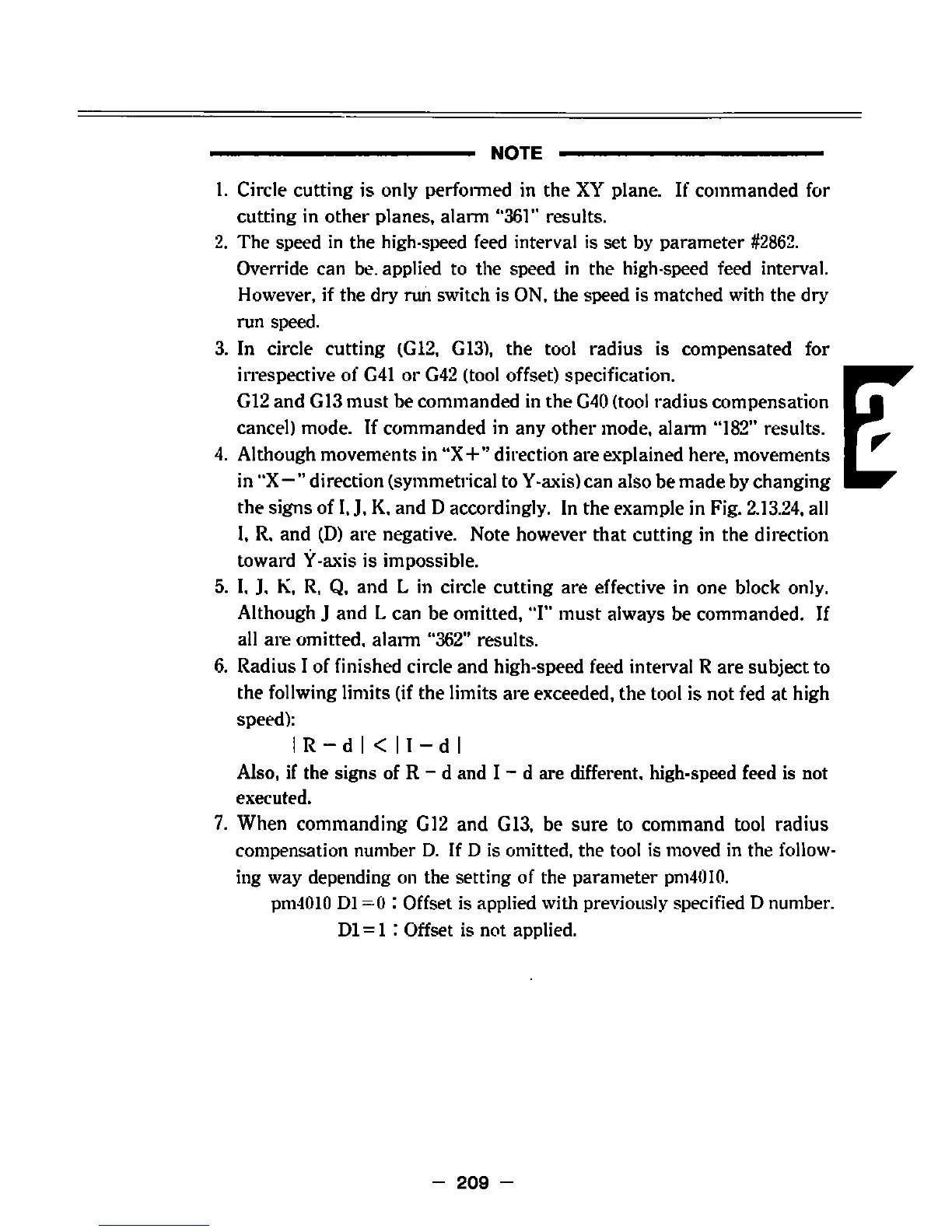

NOTE
1.
Circle
cutting
is
only
performed
in
the
XY
plane.
If
commanded
for
cutting
in
other
planes,
alarm
“361”
results.
2.
The
speed
in
the
high-speed
feed
interval is
set
by
parameter
#2862.
Override
can
be.
applied
to
the
speed
in
the
high-speed
feed
interval.
However,
if
the
dry
run
switch is
ON,
the
speed
is matched
with
the
dry
run
speed.
3.
In
circle
cutting
(G12, G13),
the tool radius is
compensated
for
irrespective
of G41
or
G42
(tool
offset)
specification.
G12
and
G13
must
be
commanded
in
the
G40
(tool
radius
compensation
cancel)
mode.
If
commanded
in
any
other
mode,
alarm
“182”
results.
4.
Although
movements
in
“X
+
”
direction
are
explained
here,
movements
in
"X—”
direction
(symmetrical
to
Y-axis)
can
also
be
made
by
changing
the
signs
of
I,
J,
K,
and
D
accordingly.
In
the
example
in
Fig.
2.13.24,
all
I,
R,
and
(D)
are
negative.
Note however
that
cutting
in
the
direction
toward
Y-axis is
impossible.
5.
I,
J, K,
R,
Q,
and
L in
circle
cutting
are
effective
in
one
block
only.
Although
J
and
L
can
be
omitted,
"I"
must
always
be commanded.
If
all
are
omitted,
alarm
“362”
results.
I
6.
Radius
I
of finished
circle and
high-speed
feed
interval
R
are
subject
to
the
follwing
limits
(if
the limits
are
exceeded,
the
tool is
not
fed
at
high
speed):
I
R
-d
|
<
I
I
-d
I
Also,
if
the
signs
of
R
-
d and
I
-
d
are
different,
high-speed
feed
is
not
executed.
7.
When
commanding
G12
and
G13,
be
sure
to
command tool
radius
compensation
number
D.
If
D
is
omitted,
the tool
is
moved
in
the
follow¬
ing
way
depending
on
the
setting
of
the
parameter
pm4010.
pm4010
D1
—
0
:
Offset
is
applied
with
previously
specified
D
number.
D1
=
1
:
Offset
is
not
applied.
-
209
-
