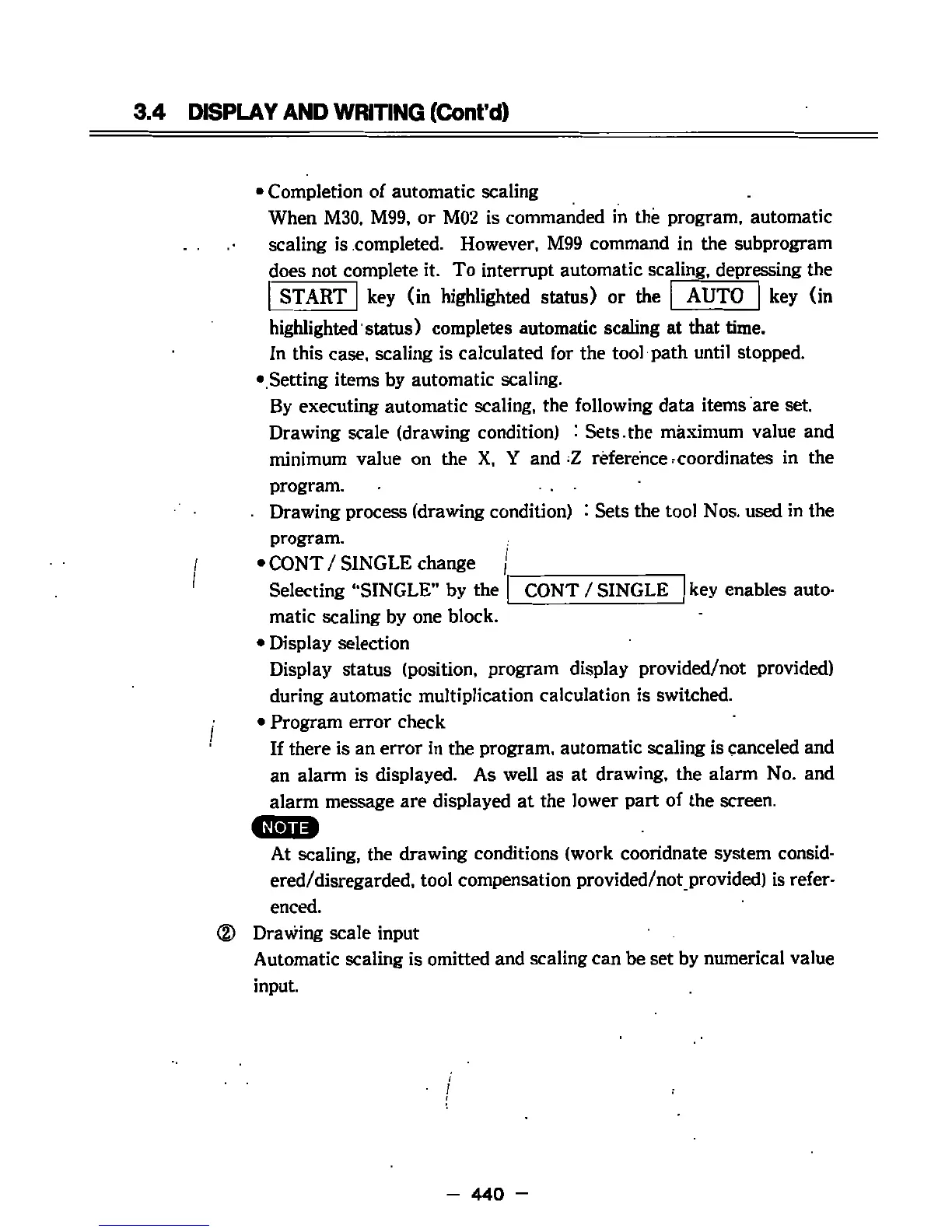

3.4
DISPLAY
AND
WRITING
(Cont’d)
•
Completion
of
automatic
scaling
When
M30,
M99,
or
M02
is
commanded
in
the
program,
automatic
scaling
is
completed.
However,
M99
command
in
the
subprogram
does
not
complete
it.
To
interrupt
automatic
scaling,
depressing
the
START
key
(in
highlighted
status)
or
the
AUTO
key
(in
highlighted
status)
completes
automatic
scaling
at
that
time.
In
this
case,
scaling
is
calculated
for
the
tool
path
until
stopped.
•
Setting
items
by
automatic
scaling.
By
executing
automatic
scaling,
the
following
data
items
are
set.
Drawing
scale
(drawing
condition)
:
Sets.
the
maximum
value
and
minimum
value
on
the
X,
Y
and
Z
reference
*
coordinates
in
the
program.
Drawing
process
(drawing
condition)
I
Sets
the tool
Nos.
used
in
the
program.
•
CONT
/
SINGLE
change
Selecting
“SINGLE”
by
the
|
CONT
/SINGLE
|key
enables
auto¬
matic
scaling by
one
block.
•
Display
selection
Display
status
(position,
program
display
provided/not
provided)
during
automatic
multiplication
calculation
is
switched.
•
Program
error
check
If
there
is
an
error
in
the
program,
automatic
scaling
is
canceled
and
an
alarm
is
displayed.
As
well
as
at
drawing,
the
alarm
No.
and
i
i
alarm
message
are
displayed
at
the
lower
part
of
the
screen.
At
scaling,
the
drawing
conditions
(work
cooridnate
system
consid¬
ered/disregarded,
tool
compensation
provided/not
provided)
is
refer¬
enced.
d)
Drawing
scale
input
Automatic
scaling
is
omitted
and
scaling
can
be
set
by
numerical
value
input.
;
-
440
-
