Zebra TC75 User Manual

Accessories 7 - 9

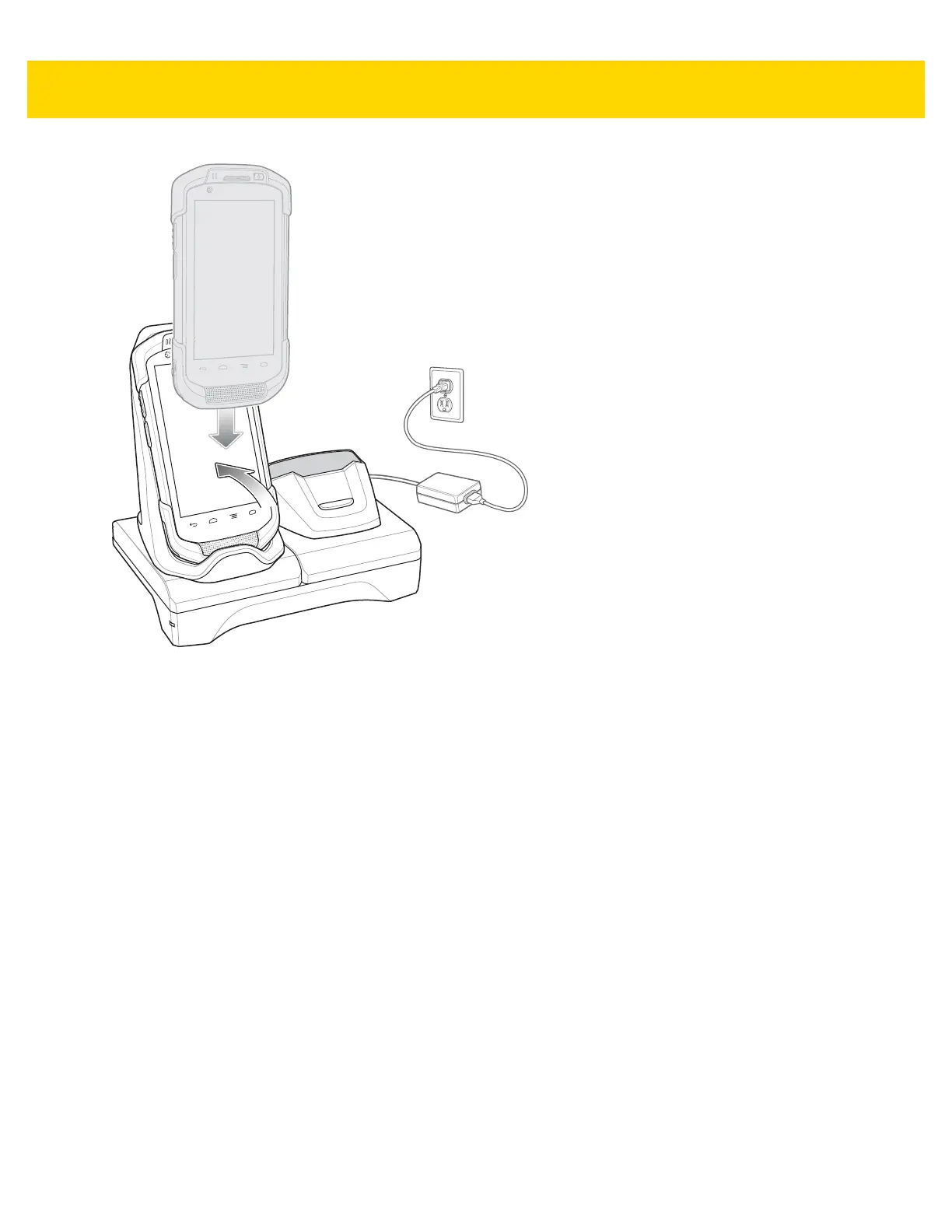

Figure 7-5 Battery Charging
2. Rotate the top of the device until the connector on the back of the device mates with the connector on the
cradle.
3. Ensure the device is connected properly. The charging Charging/Notification LED on the device begins blinking
amber indicating that the device is charging.
Charging the Spare Battery
1. Insert the battery into the right slot to begin charging.

Zebra TC75 Specifications

General

Display Size	4.7 inches
Resolution	1280 x 720 pixels
Operating System	Android
Battery Capacity	4620 mAh
Cellular Connectivity	4G LTE
GPS	Yes
Humidity	5% to 95% non-condensing
Camera	8 MP rear camera
Wireless Connectivity	Wi-Fi 802.11 a/b/g/n
Ruggedness	MIL-STD-810G
Operating Temperature	-20° C to 50° C
Barcode Scanner	1D/2D imager
RAM	1 GB
Storage	8 GB
Expandable Storage	up to 32 GB microSD
Dimensions	6.3 x 3.3 x 1.1 inches
