7 - 30 TC75 User Guide
Attaching the 3.5 mm Audio Adapter
1. Align the top mounting points on the 3.5 mm Audio Adapter with the mounting slots on the TC75.

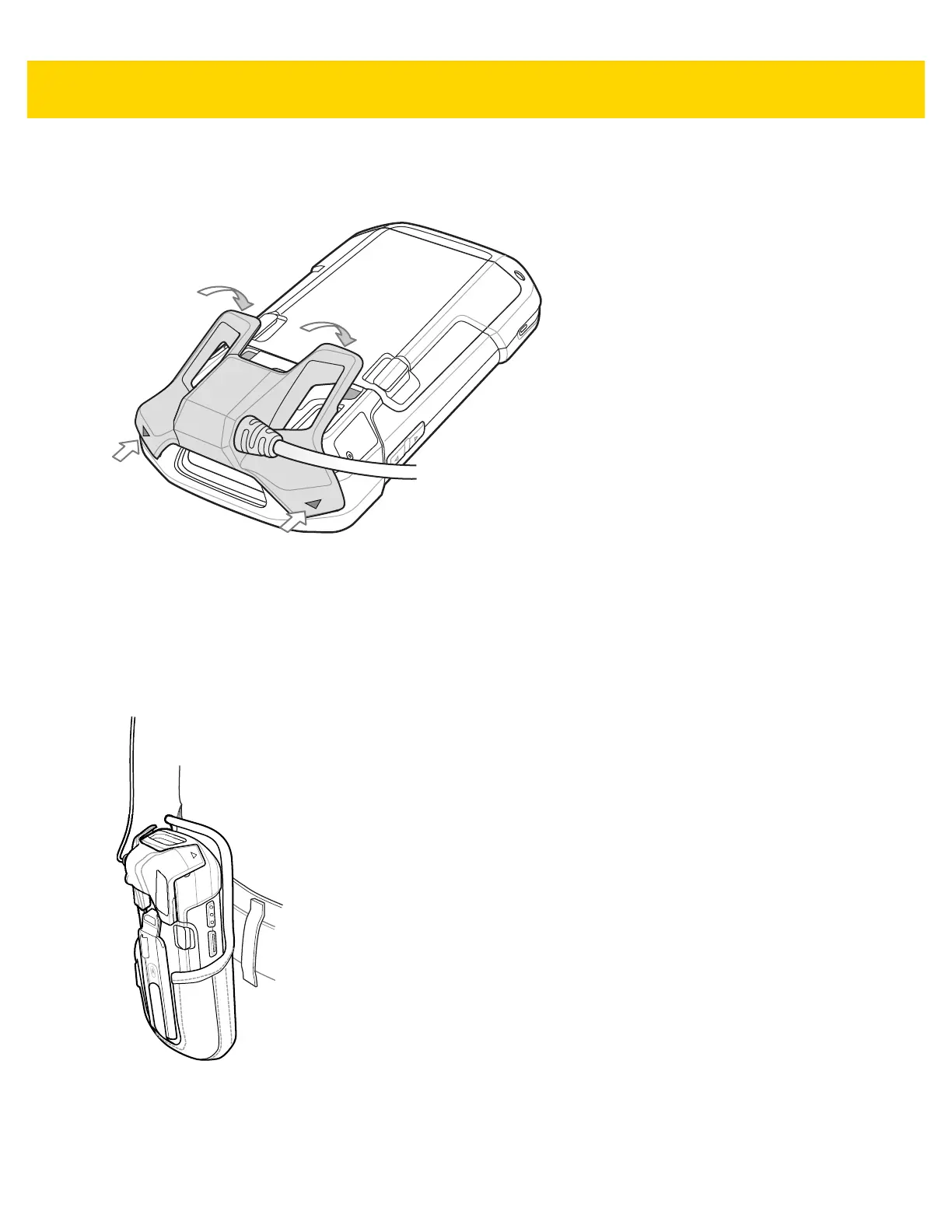

Figure 7-29 Audio Adapter Installation
2. Rotate the Audio Adapter down and press down until it snaps into position.
Device with 3.5 mm Audio Adapter in Holster
When using the TC75 and the audio adapter in a holster, ensure that the display faces in and the headset cable is
securely attached to the audio adapter.
Figure 7-30 Device with 3.5 mm Audio Adapter in Holster
Removing the 3.5 mm Audio Adapter
1. Disconnect headset plug from 3.5 mm Audio Adapter.
