Zebra TC75 - Removing the Device from the Trigger Handle

Accessories 7 - 41
Removing the Device from the Trigger Handle
1. Press both Trigger Handle release latches.

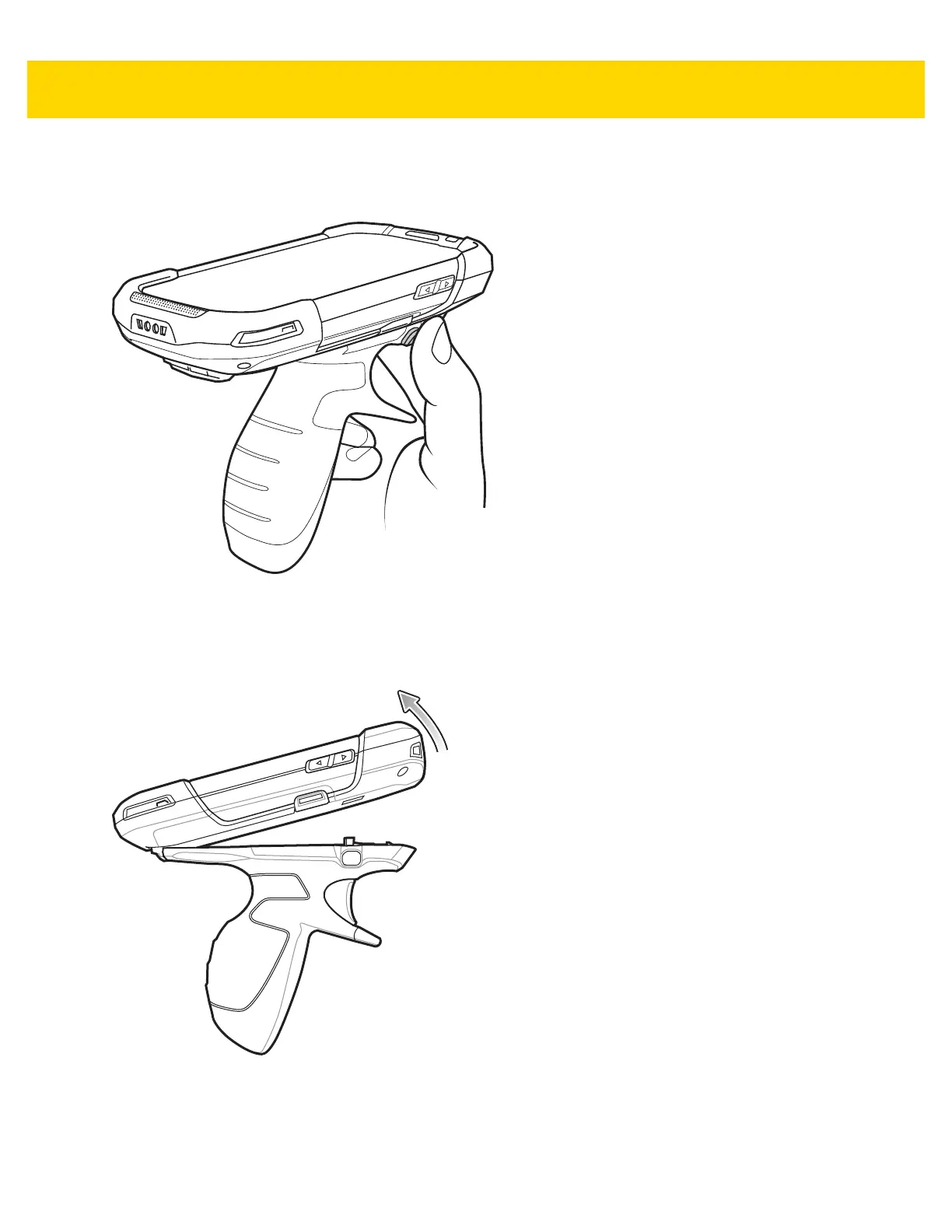

Figure 7-51 Press Release Latches
2. Rotate the device up and remove from the Trigger handle.
3. Rotate the device down and press down until it snaps into place.
Figure 7-52 Rotate Device onto Trigger Handle
