Zebra TC75 - TC75 Features and Hardware Overview

1 - 2 TC75 User Guide
Features

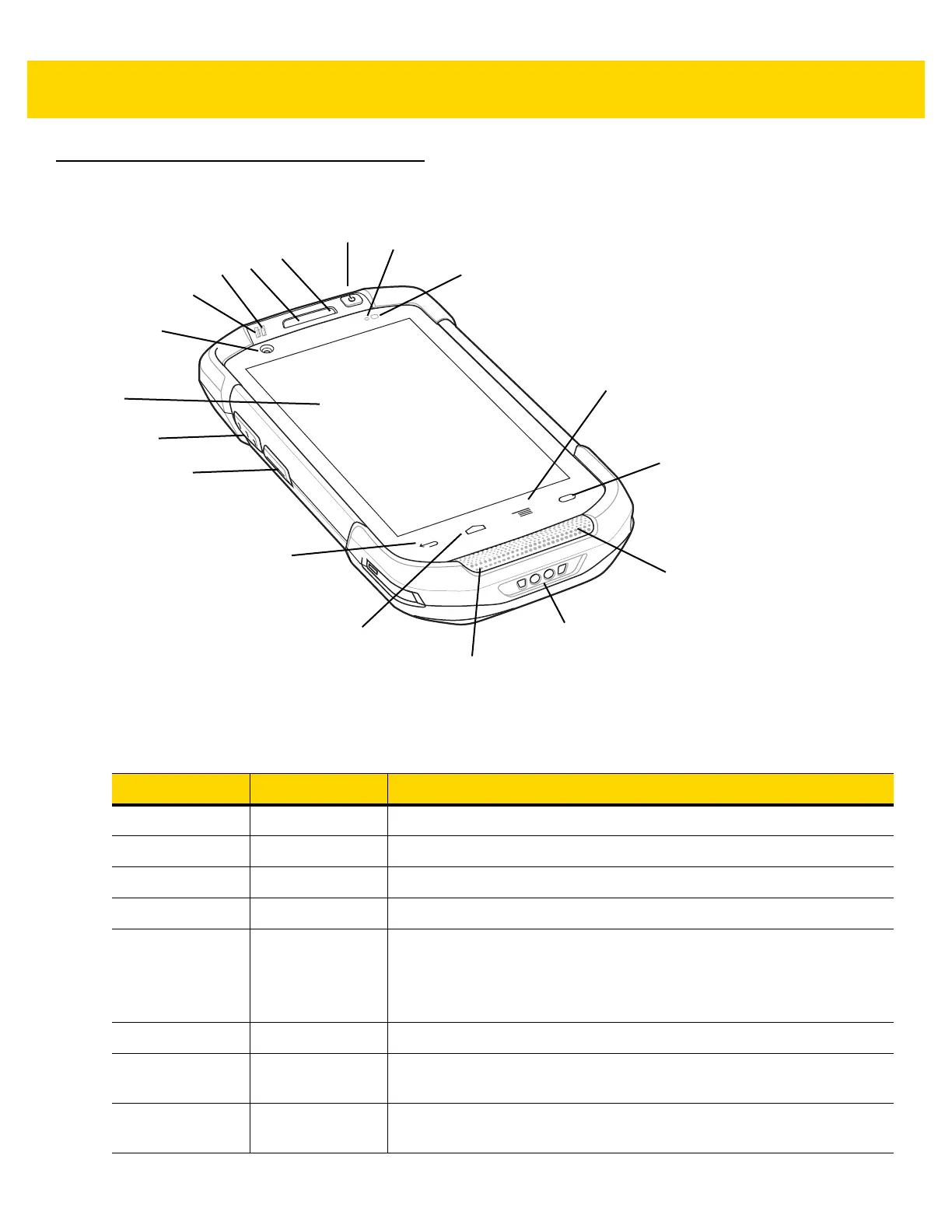

Figure 1-1 TC75 Front View
Table 1-1 Front View Features
Number Item Function
1 Touch Screen Displays all information needed to operate the TC75.
2 Scan Button Initiates data capture (programmable).
3 PTT Button Initiates push-to-talk communications (programmable).
4 Back Button Displays the previous screen.
5 Home Button Displays the Home screen with a single press. Displays recently used
applications when held for a short period of time.
On TC75 with GMS, opens the Google Now screen when held for a
short period of time.
6 Microphone Use for communications in Handset mode.
7 Charging
Contacts
Provides power to the device from cables and cradles.
8 Speaker Provides audio output for video and music playback. Provides audio in
speakerphone mode.
