Zebra TC75 - Page 29

Getting Started 1 - 11
6. If hand strap is attached, slide the hand strap clip up toward the top of the TC75 and then lift.

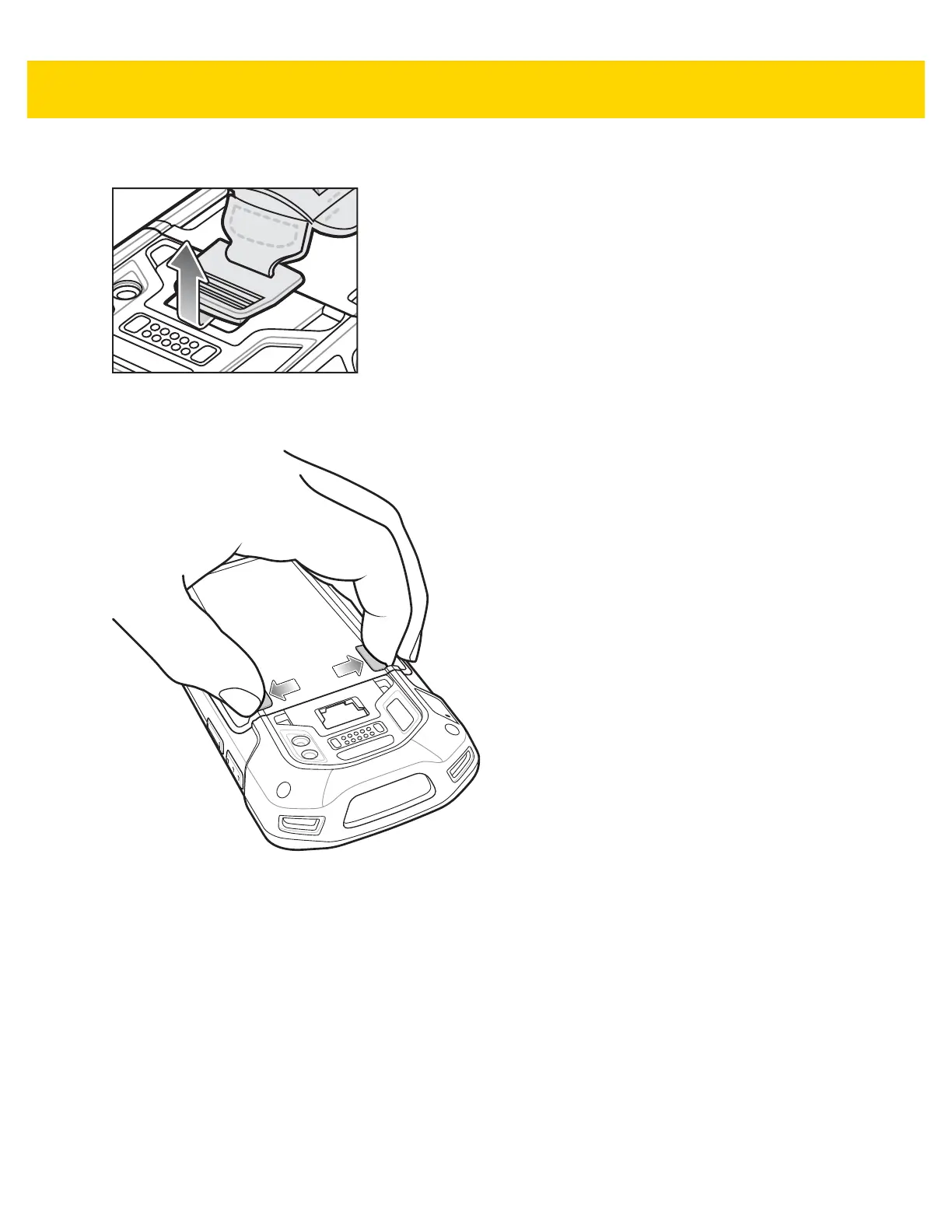

Figure 1-16 Remove Hand Strap Clip
7. Press the two battery latches in.
Figure 1-17 Press Battery Latches
8. Lift the battery from the TC75.
