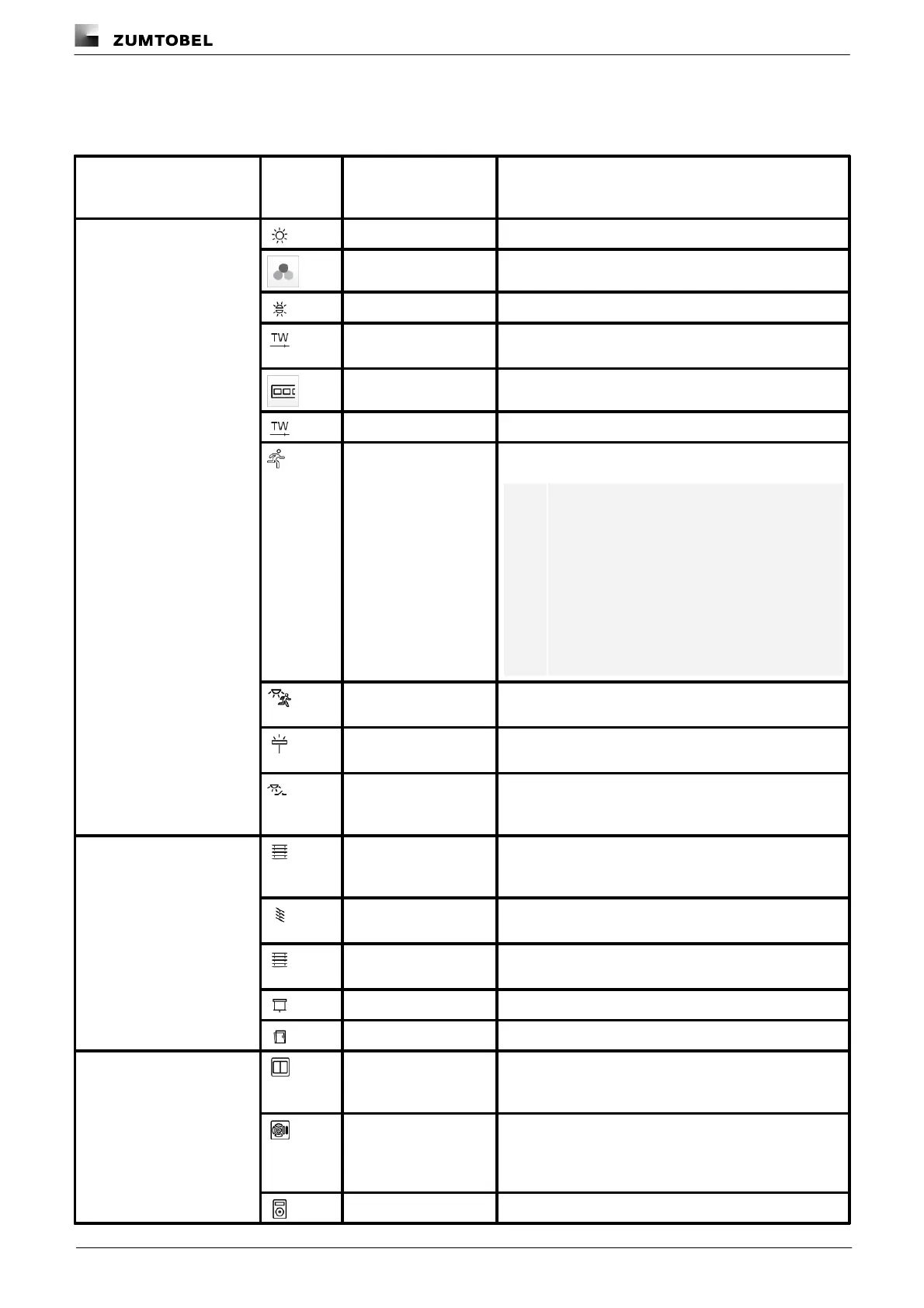

More information about the device types
The type is automatically selected, if possible. The following types are available:
Device category
Icon in
system
Device type
Use
Luminaires
Standard
Standard luminaires
Red, green, blue
RGB luminaires (special luminaires)
Direct, indirect
Balance luminaires (special luminaires)
Warm-white, cool-
white
TW luminaires (special luminaires)
SEQUENCE inf.
SEQUENCE infinity
Tunable White
TW luminaires (DALI device type 8)
Emergency luminaire
Self-contained emergency luminaires
i
Note
Function L' is used to switch luminaires
on/off for emergency lighting control gear
NT1/NT3 using a conventional switch. Use of
the L' function is only permitted without
connection to the DALI control line. If the
DALI control line is connected, a bridge must
be installed between L and L'. Therefore the
L' function must not be used in connection
with LITECOM.
Emergency luminaire
Self-contained emergency luminaires with switching
mode Lighting management
Free-standing
luminaire
Free-standing luminaires
Relay
Relays (e.g. LM-4RUKS), which are addressed as
luminaires; relays can thus be switched together with
other type 2 luminaires.
Motors
Blinds (type 3)
Blinds which can move to different positions. This type of
blinds does not have slats or has slats that cannot be
adjusted.
Blinds (type 4)
Blinds with slats, whose position is fixed, whose the slats
are adjustable.
Blinds (type 3+4)
Blinds which can move to different positions and have
adjustable slats.
Screen
Screens
Window
Windows
Input devices – control
equipment
Momentary-action
switch/standard
switch
Momentary-action switches and standard switches
CIRCLE
Control units from Zumtobel (ED-Cxx, LM-Cxx), that
have three illuminated scene keys for scene recall, an
on/off key and two rocker keys for controlling individual
building services.
LM-CIRIA
Control units LM-CIRIA from Zumtobel
