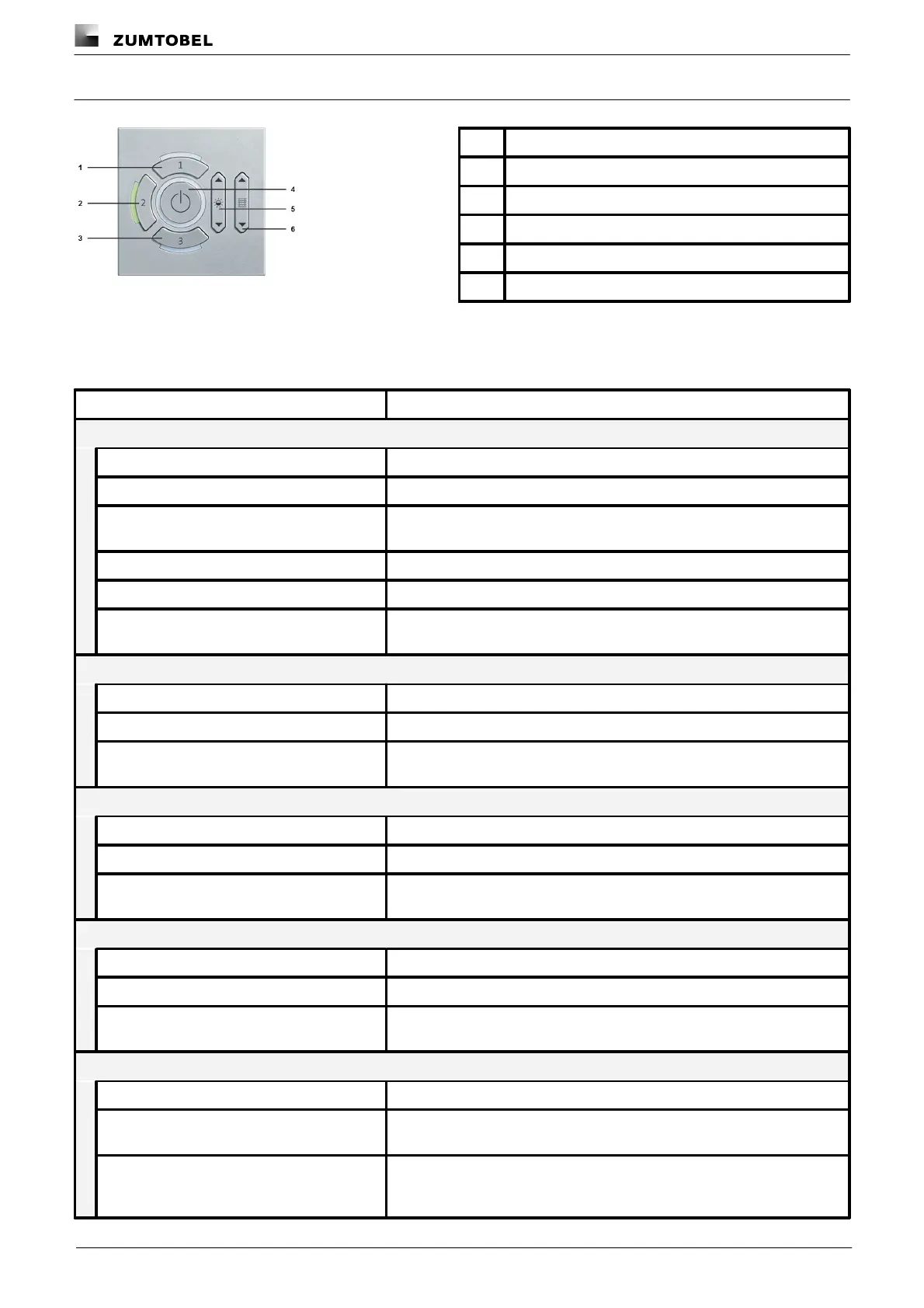

CIRCLE control unit
Table 27: Components of a CIRCLE control unit
(e.g. LM-CSS 1/2/3 Li/Be)
The following table provides a description of the individual configuration options:
Scene, which the user recalls using the on/off key when entering the room.
Mode of operation (absence scene)
Mode of operation controlled when the absence scene is recalled.
Fade time to absence scene
The time it takes to change from one value (scene, presence value) to the
absence scene.
Scene, which the user recalls using the on/off key when exiting the room.
Mode of operation (presence scene)
Mode of operation controlled when the presence scene is recalled.
Fade time to presence scene
Time during which the absence scene changes to a value (scene,
presence value).
Scene recalled with scene key 1.
Mode of operation (scene key 1)
Mode of operation controlled with scene key 1.
The time it takes to change from one value (scene, presence value) to
scene 1.
Scene recalled with scene key 2.
Mode of operation (scene key 2)
Mode of operation controlled with scene key 2.
The time it takes to change from one value (scene, presence value) to
scene 2.
Scene recalled with scene key 3.
Mode of operation (scene key 3)
Mode of operation controlled with scene key 3.
The time it takes to change from one value (scene, presence value) to
scene 3.
Group or device controlled with the left rocker key.
Mode of operation (left rocker key)
(only when left rocker key controls a group)
Mode of operation controlled with the left rocker key.
Reverse operation of left rocker key
The function of the left rocker key is reversed with this setting. This is
recommended in the event of incorrect wiring, for example.
