Chapter 9 VLAN
MES3500 Series User’s Guide
100
9.7.2 Create an IP-based VLAN Example
This example shows you how to create an IP VLAN which includes ports 1, 4 and 8. Follow these
steps using the screen below:
1 Activate this protocol based VLAN.
2 Type the port number you want to include in this protocol based VLAN. Type 1.
3 Give this protocol-based VLAN a descriptive name. Type IP-VLAN.
4 Select the protocol. Leave the default value IP.
5 Type the VLAN ID of an existing VLAN. In our example we already created a static VLAN with an ID
of 5. Type 5.
6 Leave the priority set to 0 and click Add.

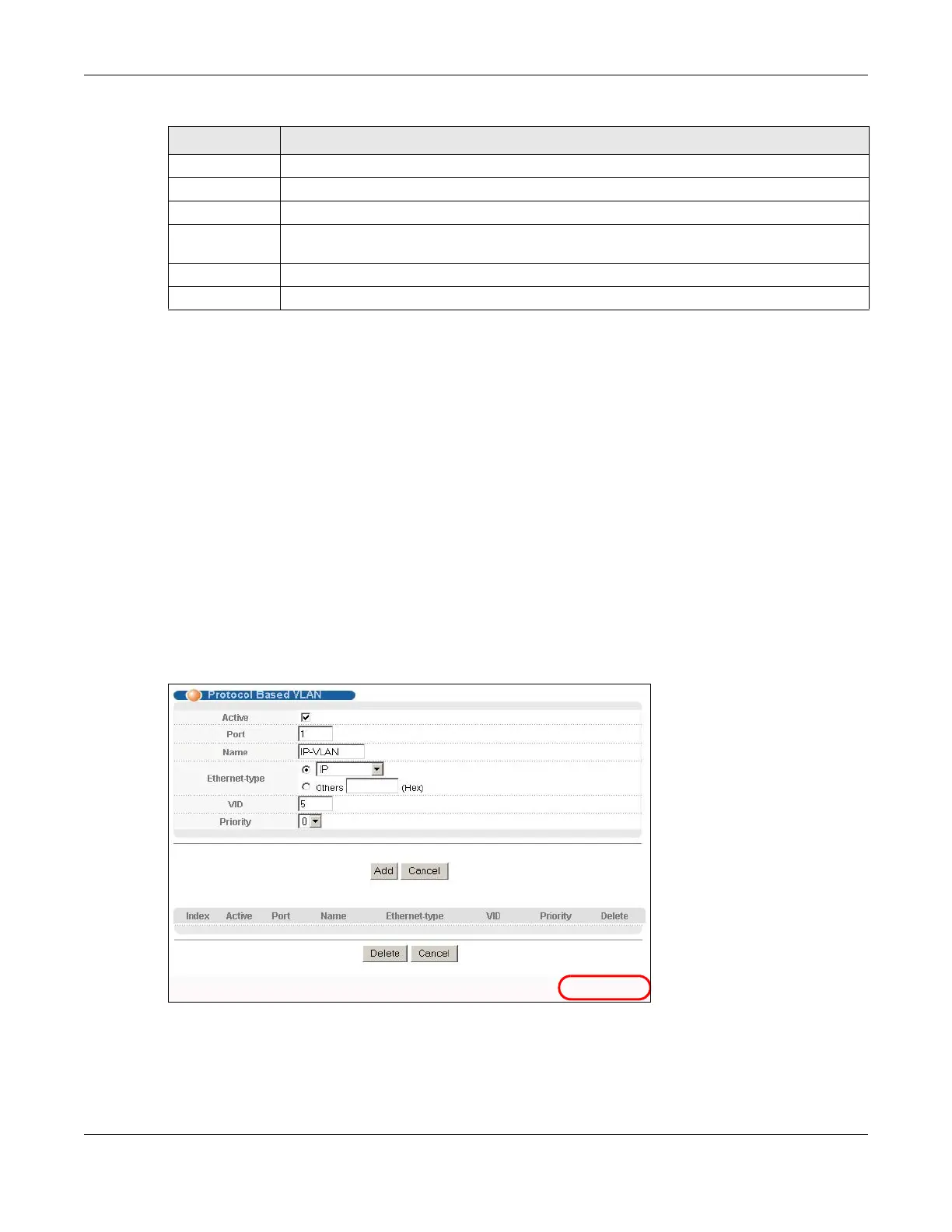

Figure 45 Protocol Based VLAN Configuration Example
To add more ports to this protocol based VLAN.
1 Click the index number of the protocol based VLAN entry. Click 1
2 Change the value in the Port field to the next port you want to add.
Name This field shows the name the protocol based VLAN.
Ethernet-type This field shows which Ethernet protocol is part of this protocol based VLAN.
VID This field shows the VLAN ID of the port.
Priority This field shows the priority which is assigned to frames belonging to this protocol based
VLAN.
Delete Click this to delete the protocol based VLANs which you marked for deletion.
Cancel Click Cancel to begin configuring this screen afresh.
Table 22 Advanced Application > VLAN > VLAN Port Setting > Protocol Based VLAN (continued)
LABEL DESCRIPTION
