MES3500 Series User’s Guide
73
CHAPTER 7
System Status and Port Statistics
This chapter describes the system status (web configurator home page) and port details screens.
7.1 Overview
The home screen of the web configurator displays a port statistical summary with links to each port
showing statistical details.
7.2 Port Status Summary
To view the port statistics, click Status in all web configurator screens to display the Status screen
as shown next.

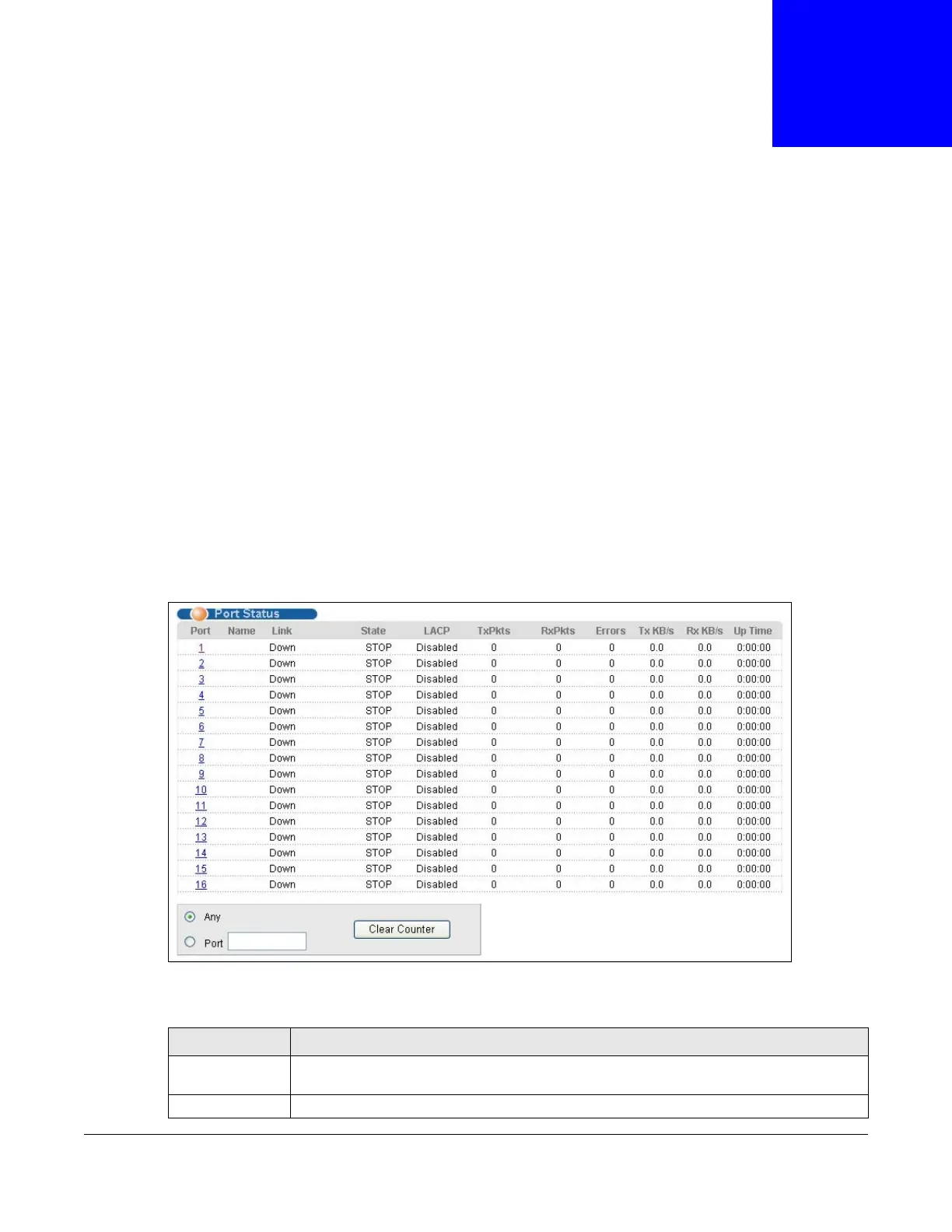

Figure 28 Status
The following table describes the labels in this screen.
Table 9 Status
LABEL DESCRIPTION
Port This identifies the Ethernet port. Click a port number to display the Port Details screen
(refer to Figure 29 on page 75).
Name This is the name you assigned to this port in the Basic Setting > Port Setup screen.
