Chapter 27 IP Source Guard
MES3500 Series User’s Guide
231
27.6.2 ARP Inspection Log Status
Use this screen to look at log messages that were generated by ARP packets and that have not
been sent to the syslog server yet. To open this screen, click Advanced Application > IP Source
Guard > ARP Inspection > Log Status.

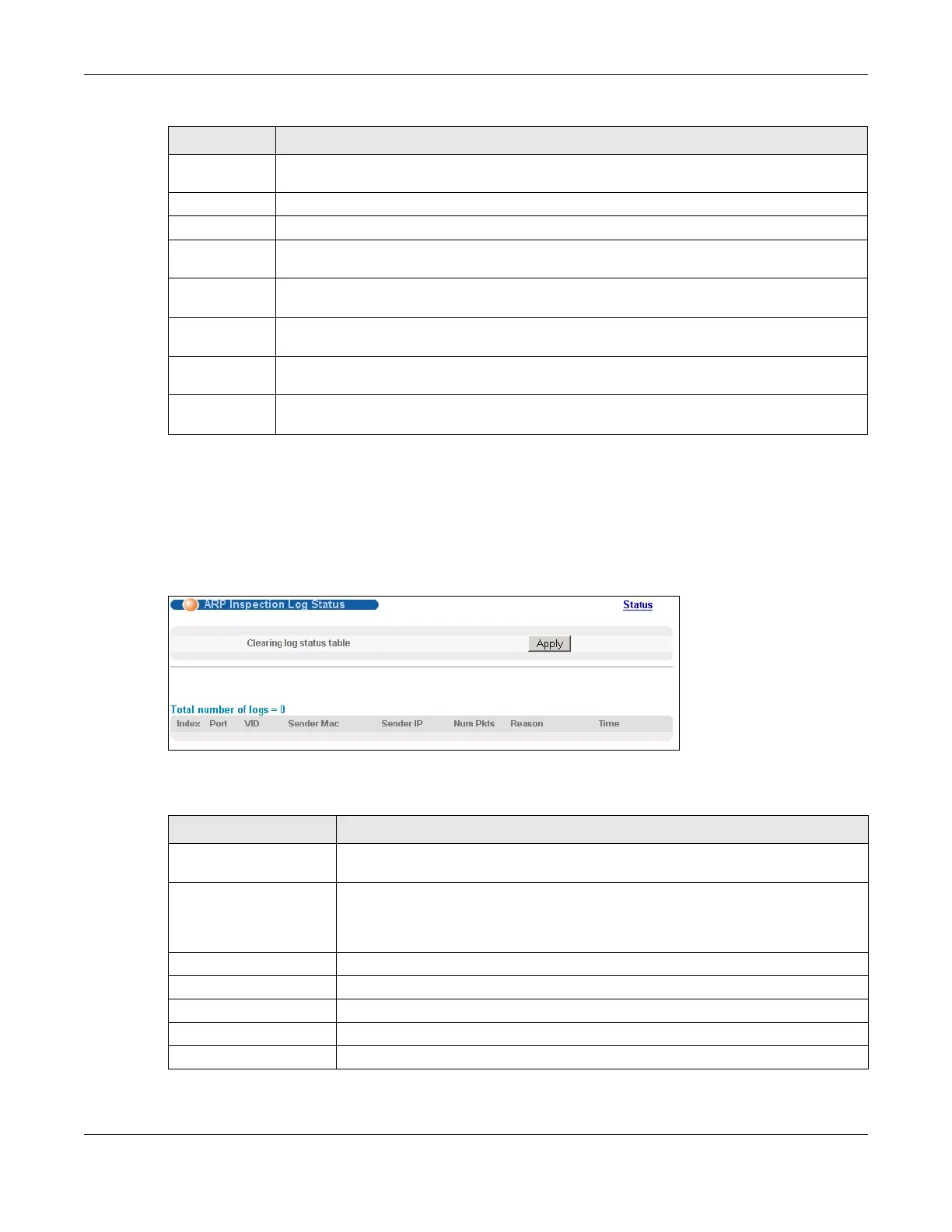

Figure 132 Advanced Application > IP Source Guard > ARP Inspection Log Status
The following table describes the labels in this screen.
Selected VLAN Select this to look at all the VLANs in a specific range in the section below. Then, enter the
lowest VLAN ID (Start VID) and the highest VLAN ID (End VID) you want to look at.
Apply Click this to display the specified range of VLANs in the section below.
VID This field displays the VLAN ID of each VLAN in the range specified above.
Received This field displays the total number of ARP packets received from the VLAN since the Switch
last restarted.
Request This field displays the total number of ARP Request packets received from the VLAN since
the Switch last restarted.
Reply This field displays the total number of ARP Reply packets received from the VLAN since the
Switch last restarted.
Forwarded This field displays the total number of ARP packets the Switch forwarded for the VLAN since
the Switch last restarted.
Dropped This field displays the total number of ARP packets the Switch discarded for the VLAN since
the Switch last restarted.
Table 95 Advanced Application > IP Source Guard > ARP Inspection VLAN Status
LABEL DESCRIPTION
Table 96 Advanced Application > IP Source Guard > ARP Inspection Log Status
LABEL DESCRIPTION
Clearing log status table Click Apply to remove all the log messages that were generated by ARP packets
and that have not been sent to the syslog server yet.
Total number of logs This field displays the number of log messages that were generated by ARP
packets and that have not been sent to the syslog server yet. If one or more log
messages are dropped due to unavailable buffer, there is an entry called overflow
with the current number of dropped log messages.
Index This field displays a sequential number for each log message.
Port This field displays the source port of the ARP packet.
VID This field displays the source VLAN ID of the ARP packet.
Sender Mac This field displays the source MAC address of the ARP packet.
Sender IP This field displays the source IP address of the ARP packet.
