Chapter 20 Range Profile
MES3500 Series User’s Guide
164

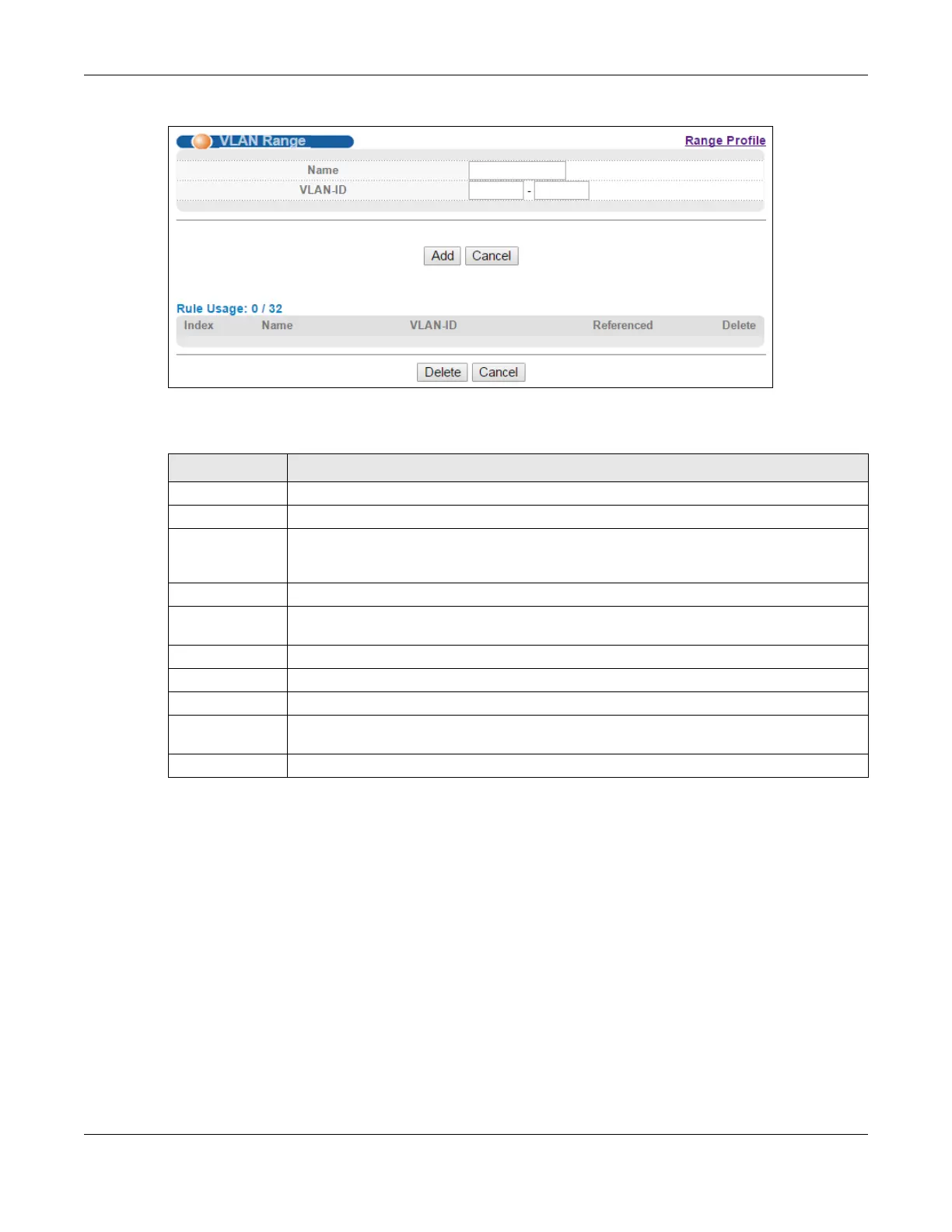

Figure 89 Advanced Application > Range Profile > VLAN Range
The following table describes the labels in this screen.
20.4 Port Range Profile
Use this screen to view, manage and create port range profiles. In the Range Profile screen, click
Port Range to display the screen as shown.
Table 55 Advanced Application > Range Profile > VLAN Range
LABEL DESCRIPTION
Name Enter a descriptive name for this profile for identifying purposes.
VLAN-ID Enter the first and last VLAN ID number to specify a range of VLANs.
Add Click Add to save your changes to the Switch’s run-time memory. The Switch loses this
change if it is turned off or loses power, so use the Save link on the top navigation panel to
save your changes to the non-volatile memory when you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
Index This field displays the index number of the profile. Click an index number to change the
settings.
Name This field displays the descriptive name for this profile.
VLAN-ID This field displays the ID number of the VLANs in this profile.
Referenced This field displays whether this profile is in use by a feature, such as classifier.
Delete Check the profile(s) that you want to remove in the Delete column and then click the
Delete button.
Cancel Click Cancel to begin configuring this screen afresh.
