Chapter 9 VLAN
MES3500 Series User’s Guide
96
172.16.1.0/24, video for 192.168.1.0/24 and data for 10.1.1.0/24. The Switch can then be
configured to group incoming traffic based on the source IP subnet of incoming frames.
You can then configure a subnet based VLAN with priority 6 and VID of 100 for traffic received from
IP subnet 172.16.1.0/24 (voice services). You can also have a subnet based VLAN with priority 5
and VID of 200 for traffic received from IP subnet 192.168.1.0/24 (video services). Lastly, you can
configure VLAN with priority 3 and VID of 300 for traffic received from IP subnet 10.1.1.0/24 (data
services). All untagged incoming frames will be classified based on their source IP subnet and
prioritized accordingly. That is, video services receive the highest priority and data the lowest.

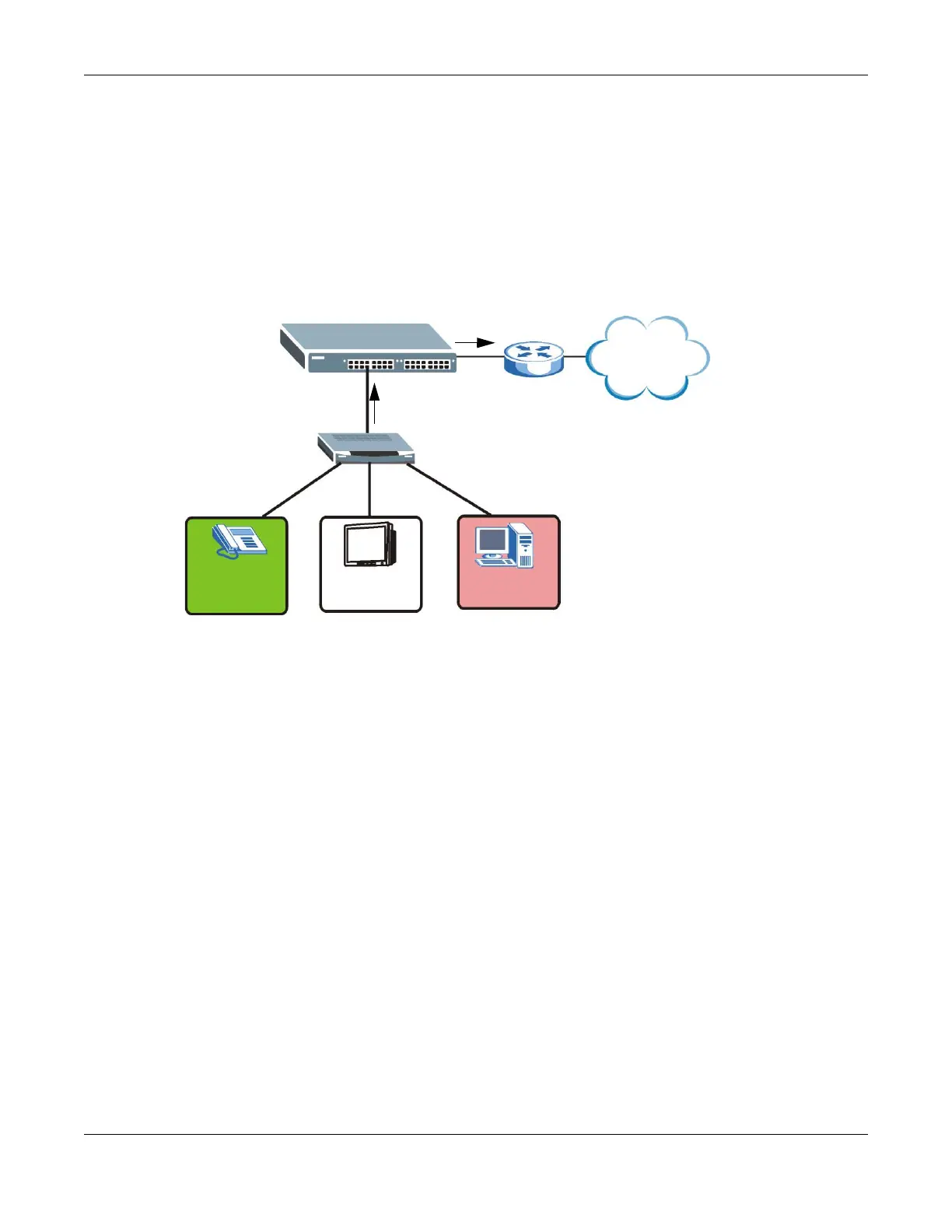

Figure 41 Subnet Based VLAN Application Example
9.6.1 Configuring Subnet Based VLAN
Click Subnet Based VLAN in the VLAN Port Setting screen to display the configuration screen as
shown.
Note: Subnet based VLAN applies to un-tagged packets and is applicable only when you
use IEEE 802.1Q tagged VLAN.
10.1.1.0/24
192.168.1.0/24
172.16.1.0/24
Internet
VID = 100
VID = 200
VID = 300
Untagged
Frames
Tagged Frames
