11 Click the Save link in the upper right corner of the web configurator to save your configuration
permanently.
6.5.2 Enabling IEEE 802.1x Port Authentication
Follow the steps below to enable port authentication to validate access to ports 1~8 to clients based
on a RADIUS server.

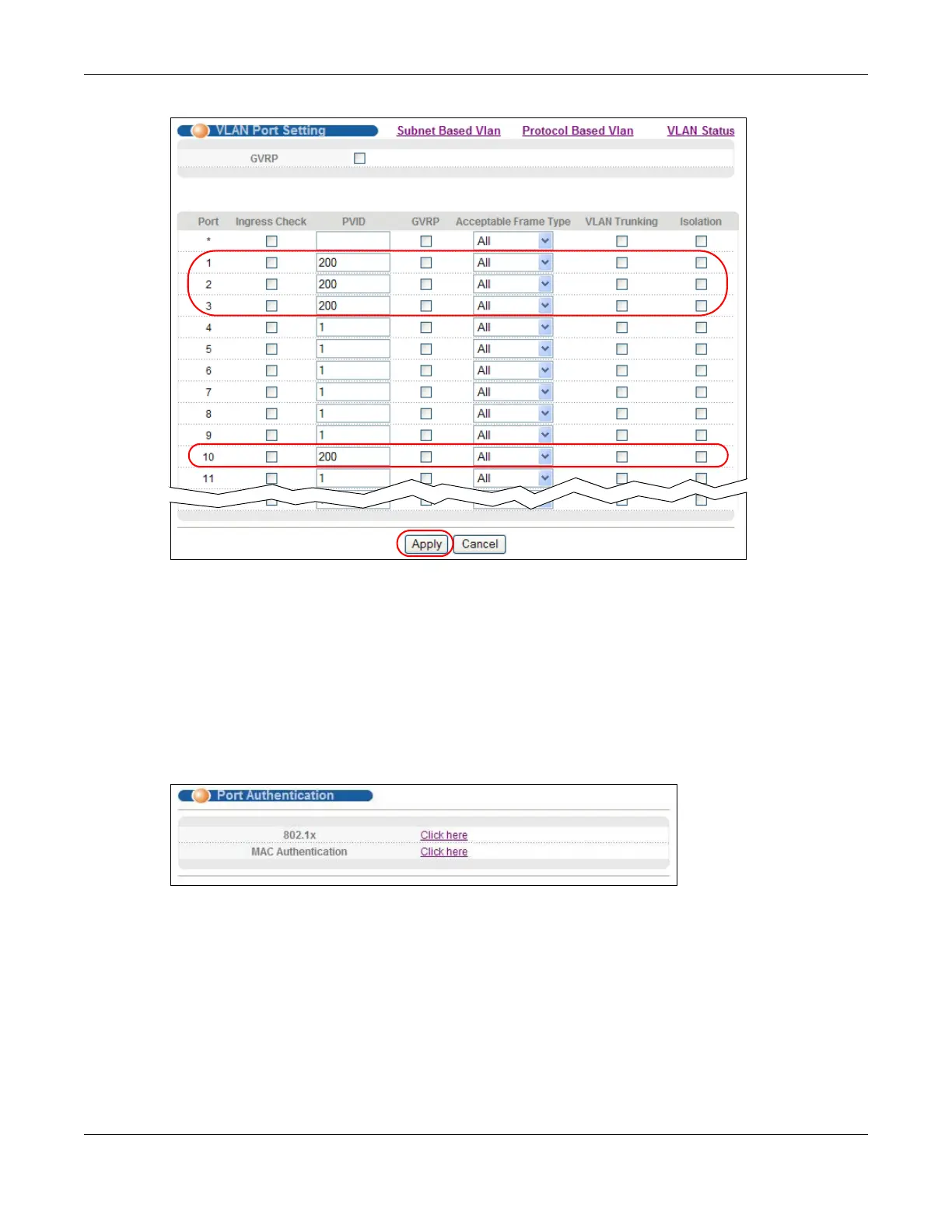

1 Click Advanced Application > Port Authentication and then the Click Here link for 802.1x.
2 Select the first Active checkbox to enable 802.1x authentication on the Switch.
Select the Active checkboxes for ports 1 to 8 to turn on 802.1x authentication on the selected
ports.
Click Apply.
