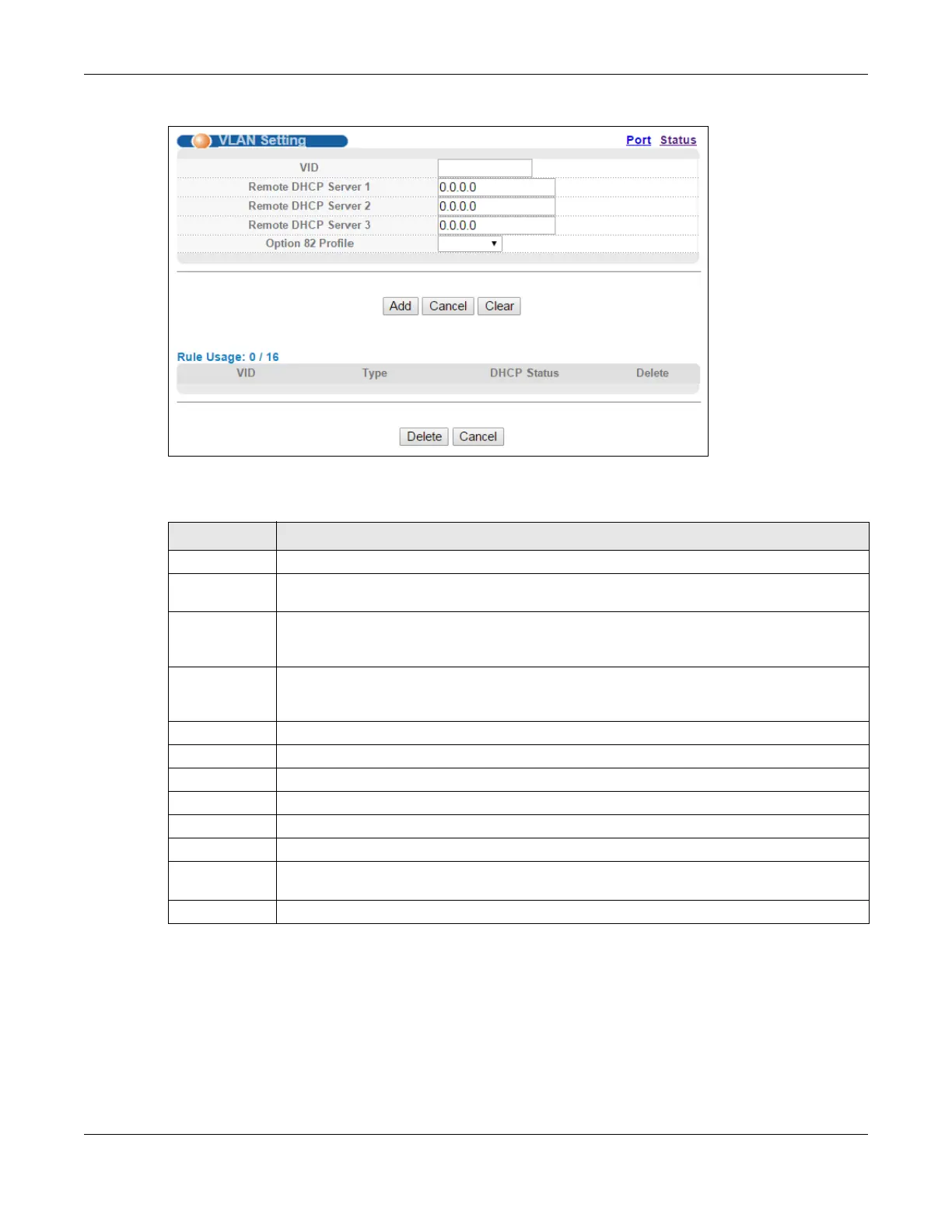

Figure 179 IP Application > DHCP > DHCPv4 > VLAN
The following table describes the labels in this screen.
37.4.7 DHCPv4 VLAN Port Configure
Use this screen to apply a different DHCP option 82 profile to certain ports in a VLAN. To open this
screen, click IP Application > DHCP > DHCPv4 > VLAN > Port.
Table 131 IP Application > DHCP > DHCPv4 > VLAN
LABEL DESCRIPTION
VID Enter the ID number of the VLAN to which these DHCP settings apply.
Remote DHCP
Server 1 .. 3
Enter the IP address of a DHCP server in dotted decimal notation.
Option 82
Profile
Select a pre-defined DHCP option 82 profile that the Switch applies to all ports in this VLAN.
The Switch adds the Circuit ID sub-option and/or Remote ID sub-option specified in the
profile to DHCP requests that it relays to a DHCP server.
Add Click Add to save your changes to the Switch’s run-time memory. The Switch loses these
changes if it is turned off or loses power, so use the Save link on the top navigation panel to
save your changes to the non-volatile memory when you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
Clear Click this to clear the fields above.
Rule Usage This field displays how many rules have been configured on the Switch.
VID This field displays the ID number of the VLAN group to which this DHCP settings apply.
Type This field displays the DHCP mode (Relay).
DHCP Status For DHCP relay configuration, this field displays the first remote DHCP server IP address.
Delete Select the configuration entries you want to remove in the Delete column and click the
Delete button to remove them.
Cancel Click Cancel to clear the Delete check boxes.
