Chapter 11 Static Multicast Forward Setup
MES3500 Series User’s Guide
111

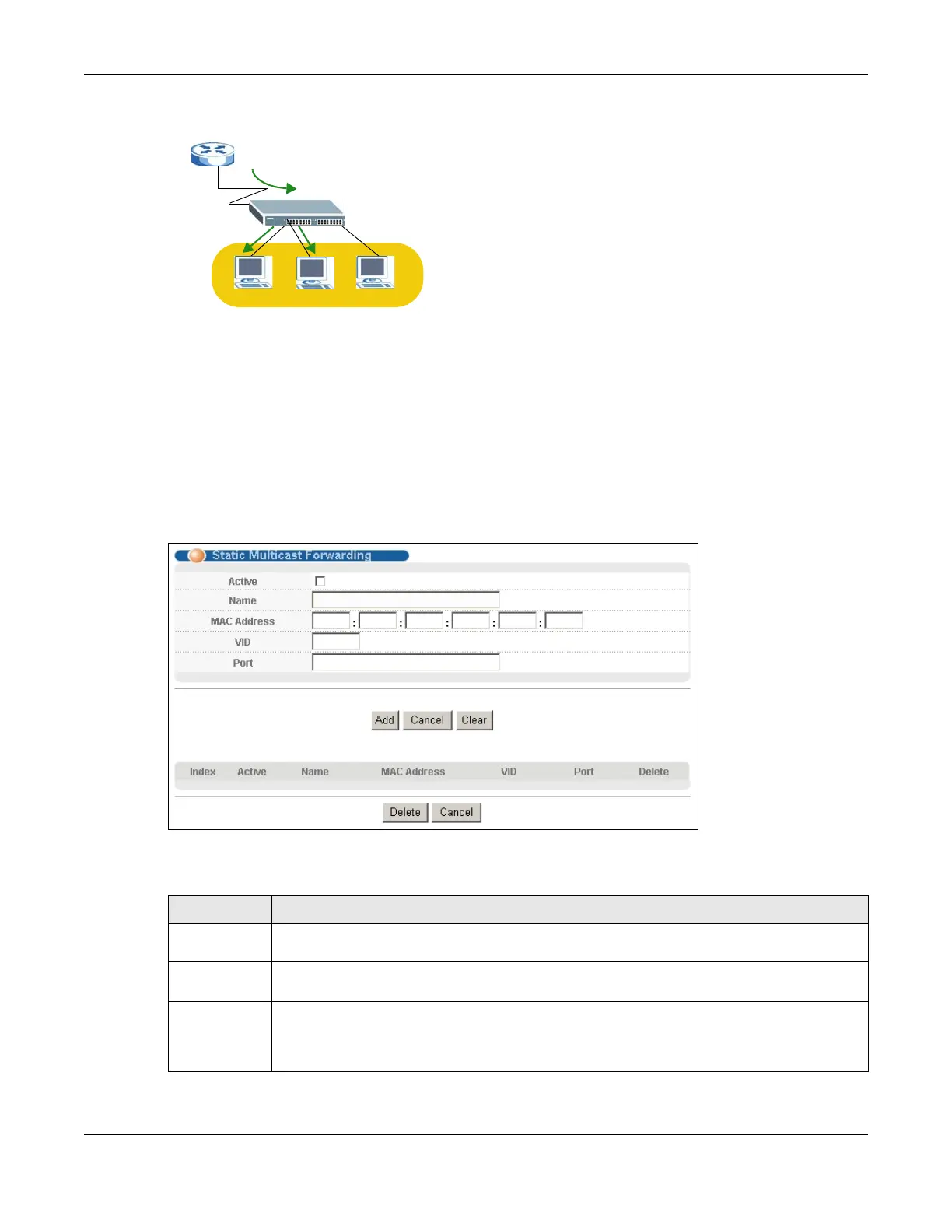

Figure 53 Static Multicast Forwarding to Multiple Ports
11.2 Configuring Static Multicast Forwarding
Use this screen to configure rules to forward specific multicast frames, such as streaming or control
frames, to specific port(s).
Click Advanced Application > Static Multicast Forwarding to display the configuration screen
as shown.
Figure 54 Advanced Application > Static Multicast Forwarding
The following table describes the labels in this screen.
Table 27 Advanced Application > Static Multicast Forwarding
LABEL DESCRIPTION
Active Select this check box to activate your rule. You may temporarily deactivate a rule without
deleting it by clearing this check box.
Name Type a descriptive name (up to 32 printable ASCII characters) for this static multicast MAC
address forwarding rule. This is for identification only.
MAC Address Enter a multicast MAC address which identifies the multicast group. The last binary bit of the
first octet pair in a multicast MAC address must be 1. For example, the first octet pair
00000001 is 01 and 00000011 is 03 in hexadecimal, so 01:00:5e:00:00:0A and
03:00:5e:00:00:27 are valid multicast MAC addresses.
