Chapter 36 Differentiated Services
MES3500 Series User’s Guide
272

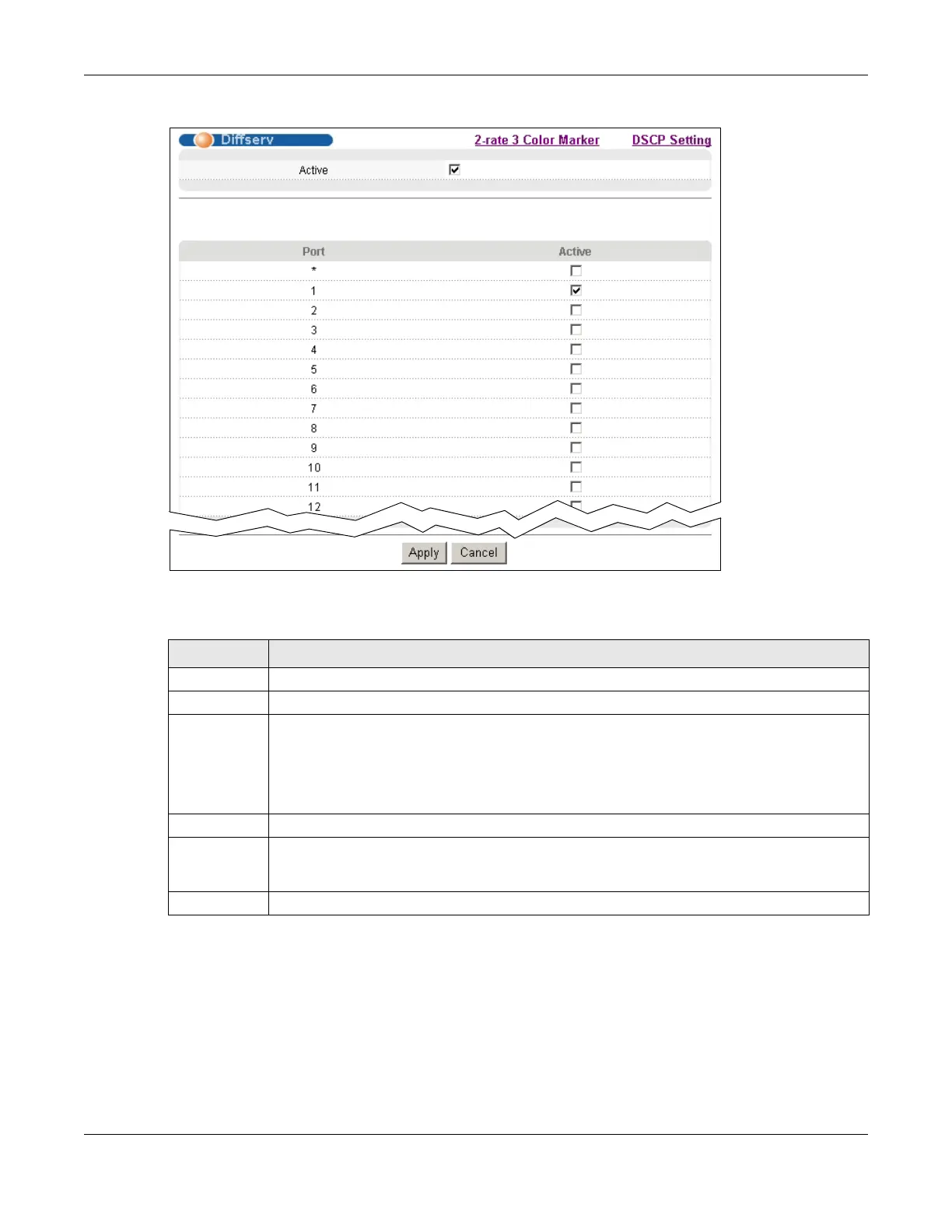

Figure 168 IP Application > DiffServ
The following table describes the labels in this screen.
36.3.1 Configuring 2-Rate 3 Color Marker Settings
Use this screen to configure TRTCM settings. Click the 2-rate 3 Color Marker link in the DiffServ
screen to display the screen as shown next.
Note: You cannot enable both TRTCM and Bandwidth Control at the same time.
Table 121 IP Application > DiffServ
LABEL DESCRIPTION
Active Select this option to enable DiffServ on the Switch.
Port This field displays the index number of a port on the Switch.
* Settings in this row apply to all ports.
Use this row only if you want to make some settings the same for all ports. Use this row first
to set the common settings and then make adjustments on a port-by-port basis.
Note: Changes in this row are copied to all the ports as soon as you make them.
Active Select Active to enable DiffServ on the port.
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses these
changes if it is turned off or loses power, so use the Save link on the top navigation panel to
save your changes to the non-volatile memory when you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
