Chapter 9 VLAN
MES3500 Series User’s Guide
91
9.5.1 VLAN Status
See Section 9.1 on page 88 for more information on Static VLAN. Click Advanced Application >
VLAN from the navigation panel to display the VLAN Status screen as shown next.

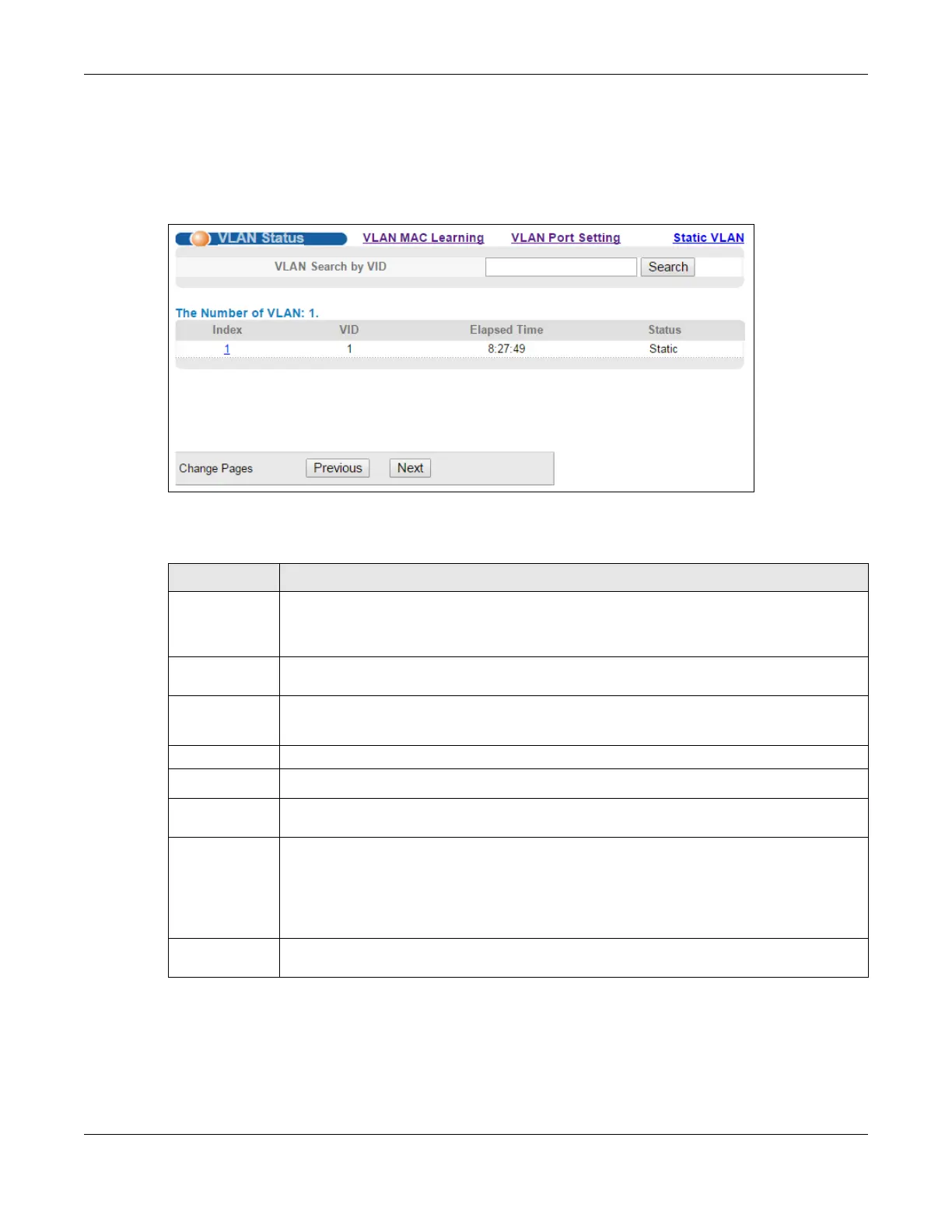

Figure 37 Advanced Application > VLAN: VLAN Status
The following table describes the labels in this screen.
9.5.2 VLAN Details
Use this screen to view detailed port settings and status of the VLAN group. See Section 9.1 on
page 88 for more information on static VLAN. Click on an index number in the VLAN Status screen
to display VLAN details.
Table 17 Advanced Application > VLAN: VLAN Status
LABEL DESCRIPTION
VLAN Search
by VID
Enter an existing VLAN ID number(s) (separated by a comma) and click Search to display
only the specified VLAN(s) in the list below.
Leave this field blank and click Search to display all VLANs configured on the Switch.
The Number of
VLAN
This is the number of VLANs configured on the Switch.
The Number of
Search Results
This is the number of VLANs that match the searching criteria and display in the list below.
This field displays only when you use the Search button to look for certain VLANs.
Index This is the VLAN index number. Click on an index number to view more VLAN details.
VID This is the VLAN identification number that was configured in the Static VLAN screen.
Elapsed Time This field shows how long it has been since a normal VLAN was registered or a static VLAN
was set up.
Status This field shows how this VLAN was added to the Switch.
• Dynamic - using GVRP
• Static - manually added as a normal VLAN
• RMirror - manually added as a remote port mirroring VLAN
• MVR - added via Multicast VLAN Registration (MVR)
Change Pages Click Previous or Next to show the previous/next screen if all status information cannot be
seen in one screen.
