Chapter 5 Initial Setup Example
MES3500 Series User’s Guide
45

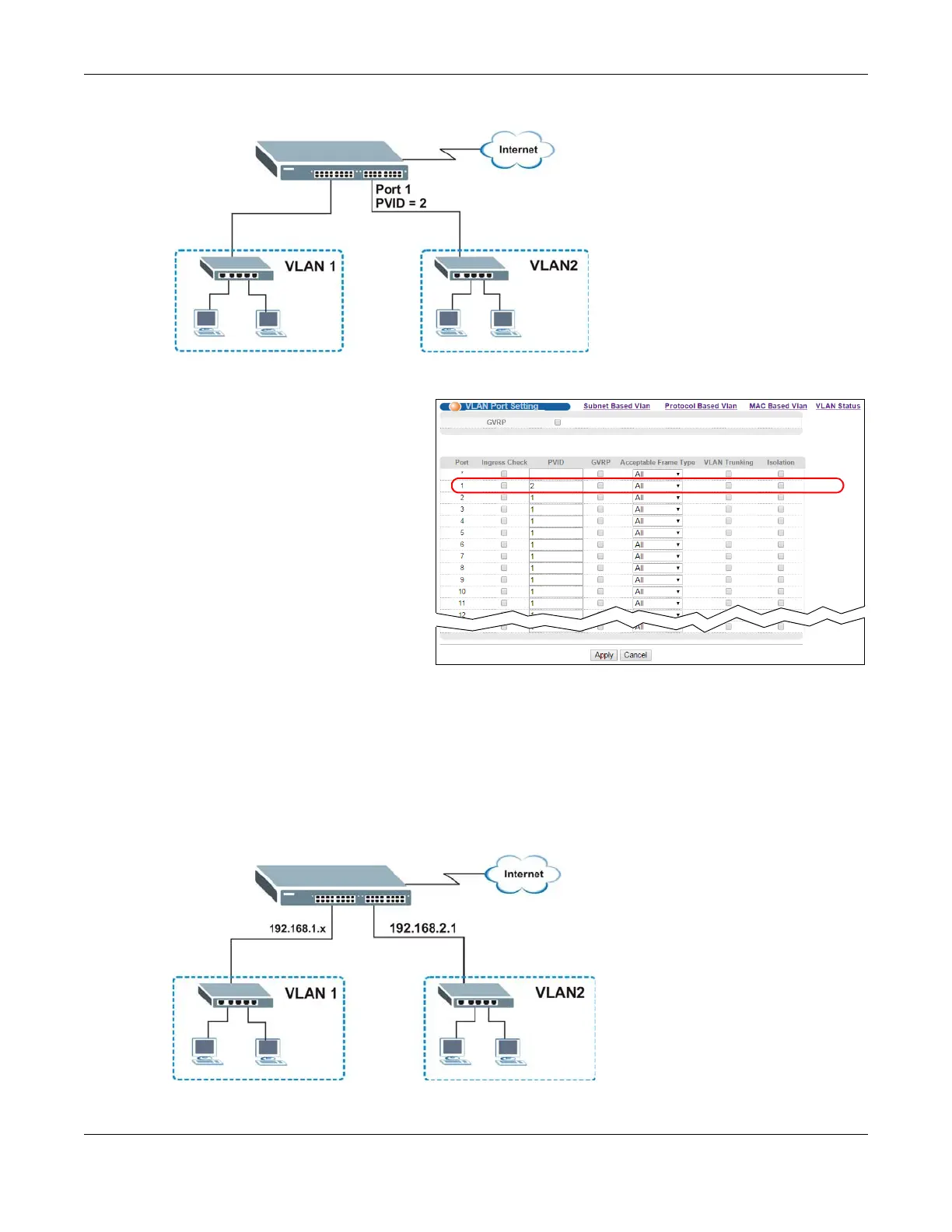

Figure 26 Initial Setup Network Example: Port VID
1 Click Advanced Applications >
VLAN in the navigation panel. Then
click the VLAN Port Setting link.
2 Enter 2 in the PVID field for port 1
and click Apply to save your
changes back to the run-time
memory. Settings in the run-time
memory are lost when the Switch’s
power is turned off.
5.2 Configuring Switch Management IP Address
The default management IP address of the Switch is 192.168.1.1. You can configure another IP
address in a different subnet for management purposes. The following figure shows an example.
Figure 27 Initial Setup Example: Management IP Address
